S2720-28TP-PWR-EI-AC – Product Documentation

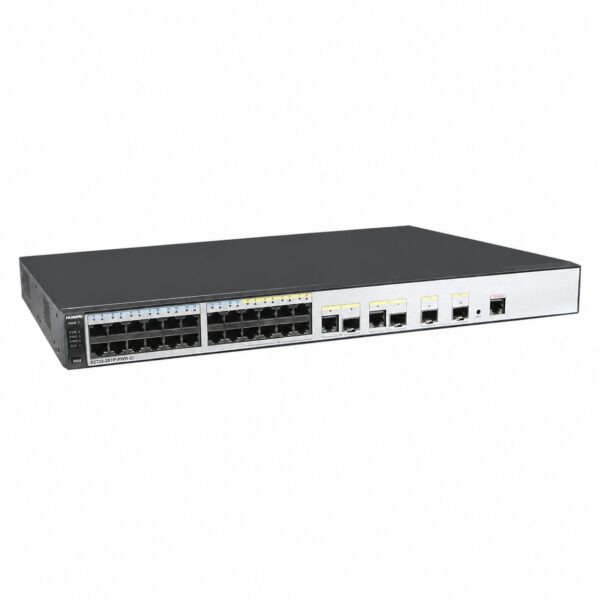

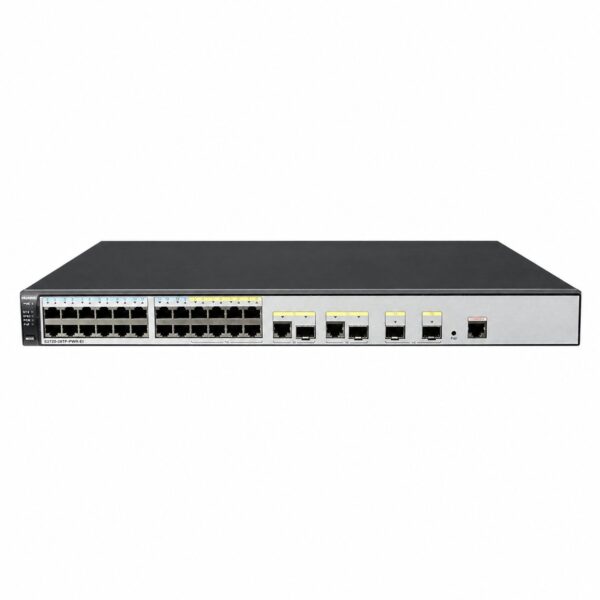

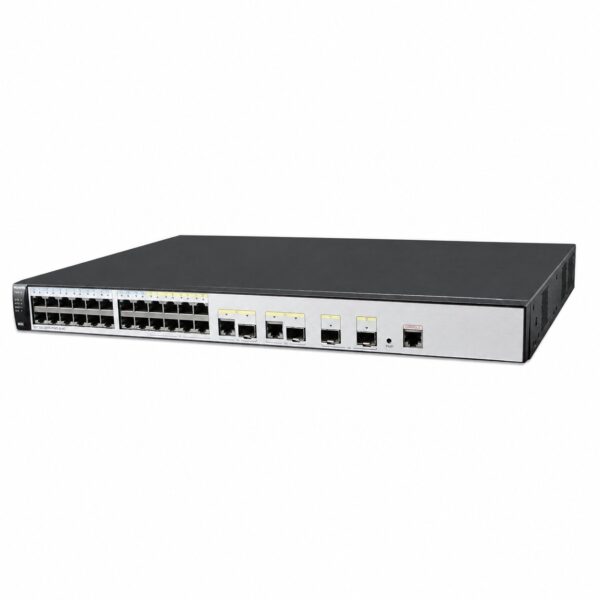

Name: Huawei S2720-28TP-PWR-EI-AC Switch - SunSpike
SKU: S2720-28TP-PWR-EI-AC

Product Overview

The Huawei S2720-28TP-PWR-EI-AC is an enterprise-class Layer 3 Ethernet switch from Huawei’s S2720-EI series, designed for campus access networks and small-to-medium business deployments. It delivers a flexible combination of Fast Ethernet and Gigabit Ethernet ports, supporting both 100M-to-the-desktop and GE uplink connectivity.

Built on Huawei’s Versatile Routing Platform (VRP) and next-generation high-performance hardware, this switch supports rich Layer 3 routing protocols including RIP and OSPF, providing leading routing performance in the 100M switch segment. The device features Power over Ethernet Plus (PoE+) capability, delivering up to 30W per port to power IP phones, wireless access points, and other powered devices directly over the network cable.

Key capabilities include iStack intelligent stacking technology, which improves system reliability and scalability while enabling unified configuration and management of the entire stack. The switch also supports SVF (Super Virtual Fabric) as a client, simplifying large-scale network deployment. Advanced features include comprehensive VLAN support (up to 4K VLANs), robust QoS with multiple queue scheduling algorithms, IGMP snooping for multicast optimization, and extensive security mechanisms including 802.1X authentication, SSH V2.0, and DHCP snooping.

With a compact 1U form factor (442 × 220 × 43.6 mm), AC power input, and operating temperature range of 0–45°C, the S2720-28TP-PWR-EI-AC is well-suited for enterprise wiring closets and edge access deployments.

Technical Specifications

Category	Specification
Basic Information
Product Model	S2720-28TP-PWR-EI-AC
Product Type	Enterprise-class switch
Application Layer	Layer 3
Transmission Rate	10/100 Mbps
Switching Mode	Store-and-forward
Performance
Switching Capacity	128 Gbps
Forwarding Rate	20.4 Mpps
MAC Address Table	16K entries
Ports
Total Ports	28 ports
Downlink Ports	16 × 10/100Base-TX Ethernet ports
Downlink Ports	8 × 10/100/1000Base-T Ethernet ports
Uplink Ports	2 × Gigabit SFP ports
Uplink Ports	2 × 10/100/1000Base-T combo ports (shared with SFP)
Transmission Mode	Full-duplex / Half-duplex auto-negotiation
PoE Power
PoE Standard	PoE+ (IEEE 802.3at)
Max PoE Power per Port	30W
Total PoE Power Budget	370W
Power Supply
Rated Voltage Range	100–240V AC; 50–60Hz
Max Voltage Range	90–264V AC; 47–63Hz
Power Consumption (without PoE)	37.8W
Power Consumption (with PoE)	444.9W (PoE: 370W)
