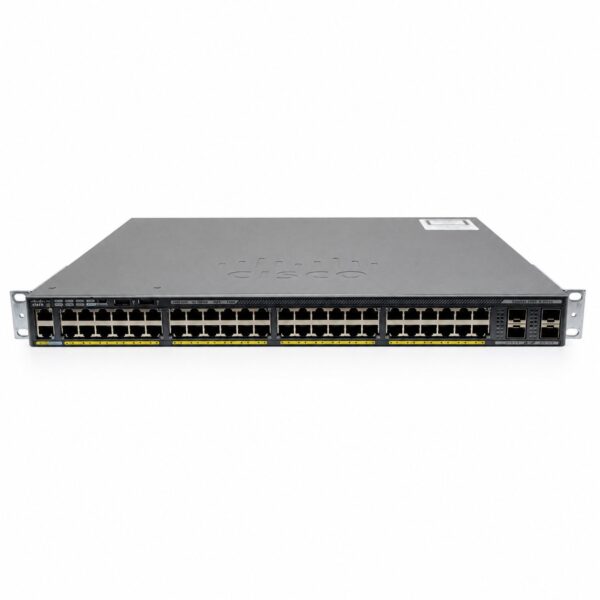

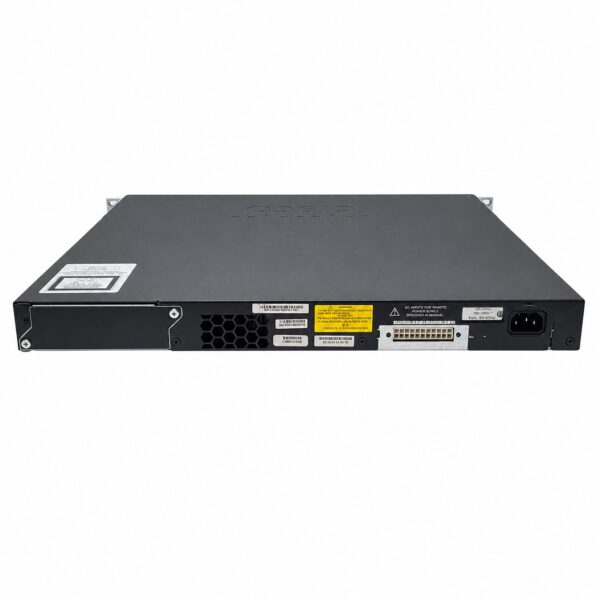

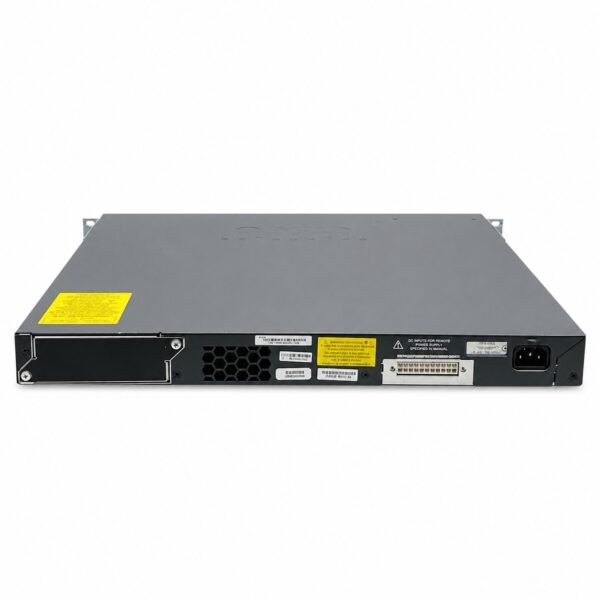

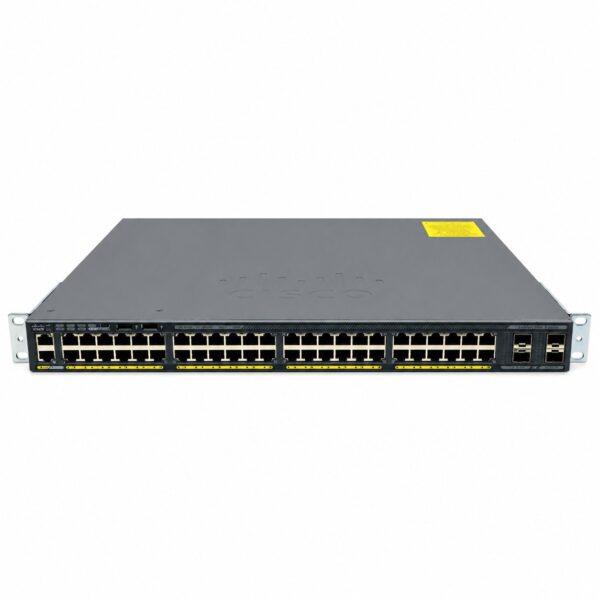

Name: Cisco Catalyst WS-C2960X-48LPS-L - SunSpike
SKU: C2960X-48LPS-L

Based on the search results, I’ve compiled a comprehensive English datasheet for the Cisco Catalyst WS-C2960X-48LPS-L switch. The information is primarily sourced from official Cisco documentation and authorized distributor listings.

Here are the key specifications:

Category	Specification
Device Type	Switch – 48 ports – Managed – stackable
Enclosure Type	Desktop, rack-mountable 1U
Subtype	Gigabit Ethernet
Ports	48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink)
Power Over Ethernet (PoE)	PoE+
PoE Budget	370 W
Switching Capacity	216 Gbps
Forwarding Performance (64-byte packets)	107.1 Mpps
CPU	APM86392 600 MHz dual core
DRAM	512 MB
Flash Memory	128 MB
Jumbo Frame Support	9216 bytes
VLAN Capacity	1023
Stacking	FlexStack-Plus, up to 8 switches (80 Gbps stack throughput)
Remote Management Protocol	SNMP v1/v2c/v3, RMON 1/2/3/9, Telnet, HTTP, TFTP, SSH, CLI
Authentication Method	Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Compliant Standards	IEEE 802.3, 802.3u, 802.3z, 802.1D, 802.1Q, 802.3ab, 802.1p, 802.3af, 802.3x, 802.3ad (LACP), 802.1w, 802.1x, 802.3ae, 802.1s, 802.1ae, 802.1ab (LLDP), 802.3at, 802.3az, 802.1AX
MTBF	276,870 hours
Dimensions (WxDxH)	44.5 cm x 36.8 cm x 4.5 cm (17.5″ x 14.5″ x 1.75″)
Weight	5.8 kg (12.9 lb)
Included Software Image	Cisco IOS LAN Base
Warranty	Enhanced Limited Lifetime Warranty (E-LLW)

Key Features

Enterprise-Class Access: A fixed-configuration, stackable Gigabit Ethernet switch designed for campus and branch applications, offering enterprise-class access and operational simplicity to lower total cost of ownership.
Advanced Features: Supports Layer 2 switching, VLANs, ACLs, DHCP, IPv6, and various security features like 802.1X and BPDU Guard. It also includes features like Cisco EnergyWise for energy efficiency and NetFlow-Lite for application visibility.
Stacking Capability: The optional Cisco FlexStack-Plus module allows stacking of up to 8 switches, providing a single management point and high stack throughput.
Redundant Power: An external redundant power supply (Cisco RPS 2300) is supported for power resiliency.

Product Summary

The Cisco Catalyst WS-C2960X-48LPS-L is a managed, stackable Gigabit Ethernet switch with 48 PoE+ ports and 4 SFP uplinks. Its key features include a 370W PoE budget, a 216 Gbps switching capacity, and a 107.1 Mpps forwarding rate. It is powered by a 600 MHz dual-core CPU with 512 MB of DRAM and 128 MB of flash memory, running the LAN Base feature set. This model is designed for reliable, secure, and energy-efficient network access in enterprise and branch environments, backed by an Enhanced Limited Lifetime Warranty.
