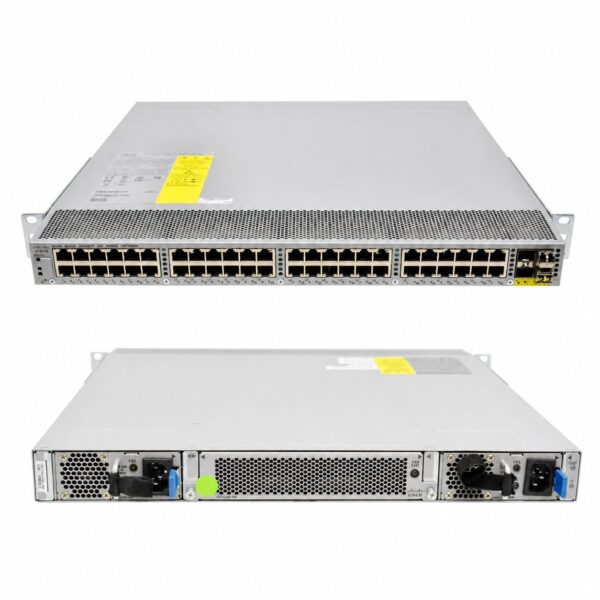

Cisco Nexus 2248TP Fabric Extender

Cisco Nexus 2248TP Fabric Extender

Model: N2K-C2248TP / N2K-C2248TP-E

Product Overview

The Cisco Nexus 2248TP is a Fabric Extender (FEX) designed to operate as a remote line card for a parent Cisco Nexus switch (such as the Nexus 5000 or 7000 Series). It simplifies data center architecture by extending the fabric to the access layer and centralizing management into a single point of control.

It acts as an extension of the parent switch, creating a virtual modular system where there is no need for independent configuration on the FEX unit itself.

Key Features

• Model Type: Expansion module / Fabric Extender

• Form Factor: Rack-mountable, 1U height

• Management: Managed via parent Cisco Nexus switch using Cisco NX-OS; supports SNMP 1, 2, 3, RMON, and CLI

• Performance:

  • Switching capacity: 176 Gbps

  • Forwarding rate: Up to 131 Mpps

• Features: Supports VLAN, Quality of Service (QoS), Access Control Lists (ACL), Jumbo Frames, Cisco Gigabit EtherChannel, Spanning Tree Protocol (STP), and vPC technology.

Ports & Connectivity

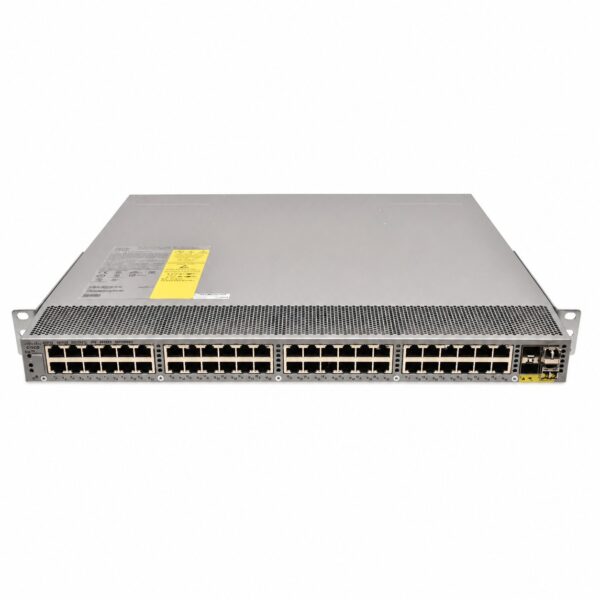

• Host-Facing Ports: 48 x 10/100/1000BASE-T ports with RJ-45 connectors for copper server and endpoint connectivity.

• Fabric Uplink Ports: 4 x 10 Gigabit Ethernet SFP+ uplink ports for high-bandwidth connection back to the parent Nexus switch.

• Uplink Options: Supports fiber optics (SFP+ SR/LR) and copper Twinax cables.

Technical Specifications

• Data Link Protocol: Fast Ethernet, Gigabit Ethernet.

• Compliant Standards: IEEE 802.3, 802.3u, 802.1Q, 802.3ab, 802.1p, 802.3x, 802.3ae, 802.3an.

• Remote Management Protocol: SNMP 1, 2, 3, RMON.

Power & Environmental Specifications

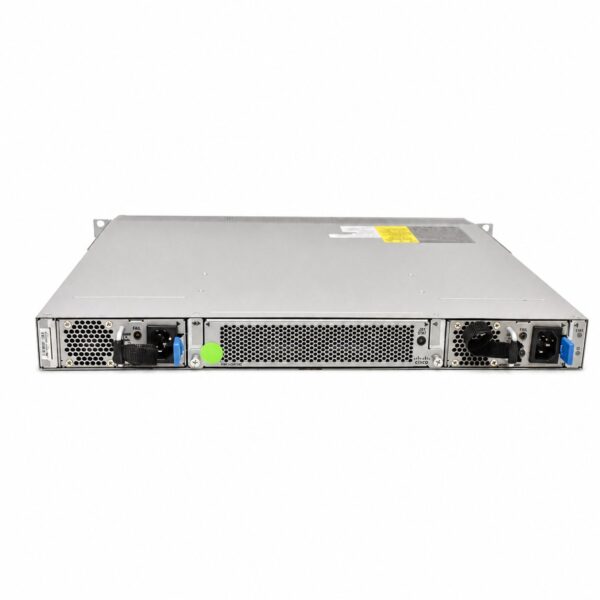

• Power Supply: Hot-swappable / redundant plug-in module.

• Power Consumption: Typical 95W; Maximum 110W.

• Voltage Required: AC 120/230 V (50/60 Hz).
