Cisco Catalyst 2960G-24TC
WS-C2960G-24TC-L
Enterprise stock · tested · export documentation available
Product Overview
The Cisco Catalyst 2960G-24TC is a fixed-configuration, managed Gigabit Ethernet switch from the Catalyst 2960 Series. It is designed to provide enhanced LAN services for entry-level enterprise, mid-market, and branch office networks. This model offers intelligent features at the network edge, including integrated security through Network Admission Control (NAC), advanced Quality of Service (QoS), and high resiliency.
Quick Specs
| Feature | Specification |
|---|---|
| Product Family | Cisco Catalyst 2960 Series |
| Model | 2960G-24TC (Part Number: WS-C2960G-24TC-L) |
| Device Type | Switch – 20 ports – Managed |
| Enclosure Type | Rack-mountable – 1U |
| Ports | 20 x 10/100/1000 Ethernet + 4 x combo Gigabit SFP (uplink) |
| Forwarding Performance | 35.7 Mpps (64-byte packets) |
| Switching Bandwidth (Fabric) | 32 Gbps |
| DRAM | 64 MB |
| Flash Memory | 32 MB |
| MAC Address Table | 8K entries |

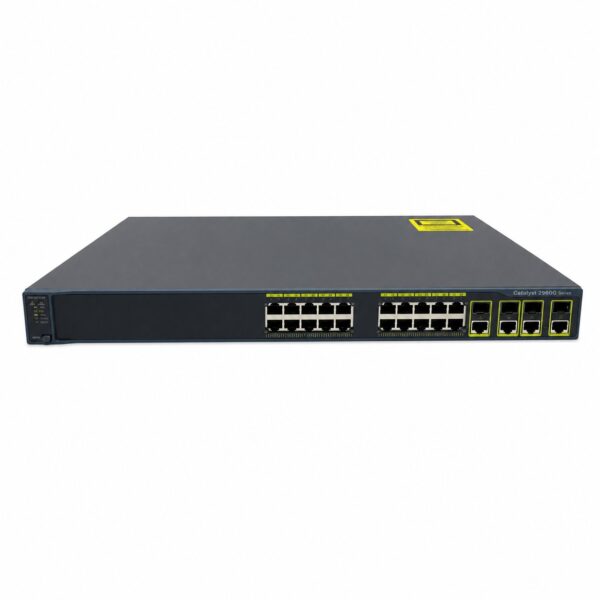

Ports & Connectivity
The switch’s interfaces are clearly defined:
-
24 x 1000Base-T RJ-45 (10/100/1000 Ethernet ports)
-
4 x SFP (mini-GBIC) (Combo Gigabit Ethernet uplink ports)
-
Note: The switch features 4 dual-purpose uplinks, allowing use of either the 10/100/1000 Ethernet port or the SFP-based Gigabit Ethernet port, with one port active at a time.
-
Performance & Capacity
Key performance metrics from Cisco documentation are listed below:
-
Forwarding Rate: 35.7 Mpps .
-
Maximum VLANs: 255 .
-
Jumbo Frame Support: Up to 9018 bytes on Gigabit ports .
-
IPv4 IGMP Groups: 255 .

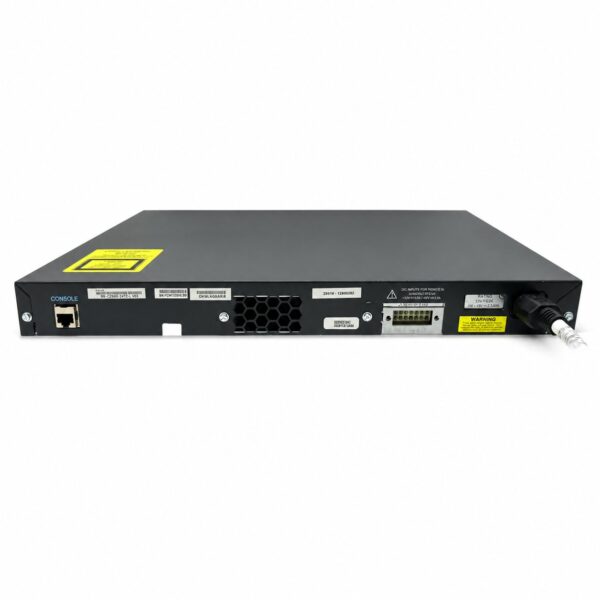

Power & Physical Specifications
The physical and power details are essential for network planning:
| Specification | Detail |
|---|---|
| AC Input Voltage | 100 to 240 VAC (Autoranging), 50-60 Hz, 1.3-0.8A |
| Power Consumption | 72W (Operational) |
| Dimensions (H x W x D) | 1.7 x 17.5 x 12.9 in (4.4 x 44.5 x 32.8 cm) |
| Weight | 10.01 lbs (4.54 kg) |
| MTBF | 313,828 hours |
Environmental Ranges
The switch is designed to operate within the following environmental parameters:
-
Operating Temperature: 23 to 104ºF (-5 to 40ºC)
-
Storage Temperature: -13 to 158ºF (-25 to 70ºC)
-
Operating Relative Humidity: 10 to 95% (noncondensing)
Protocols & Standards
The Cisco Catalyst 2960G-24TC complies with numerous IEEE standards and supports a comprehensive set of management protocols.
-
Compliant Standards: IEEE 802.1D, 802.1p, 802.1Q, 802.1s, 802.1w, 802.1x, 802.3, 802.3ab, 802.3ad (LACP), 802.3ah, 802.3u, 802.3x, 802.3z .
-
Remote Management: SNMP (v1, v2c, v3), RMON (1,2,3,9), HTTP, HTTPS, SSH, Telnet .
-
Authentication: RADIUS, TACACS+, SSH v2 .
