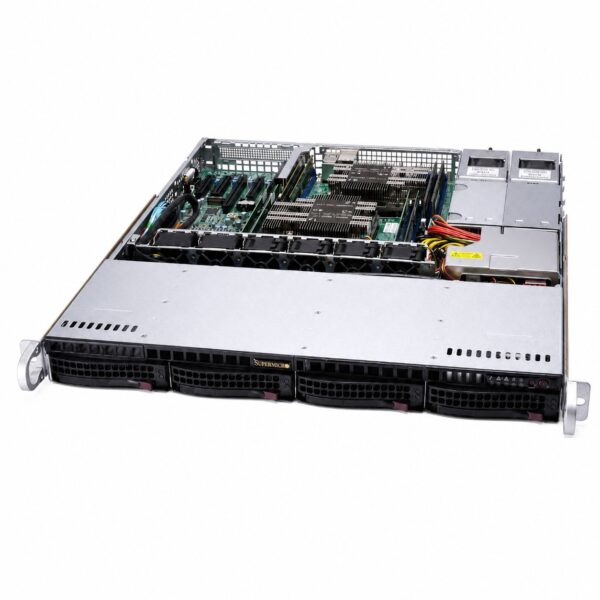

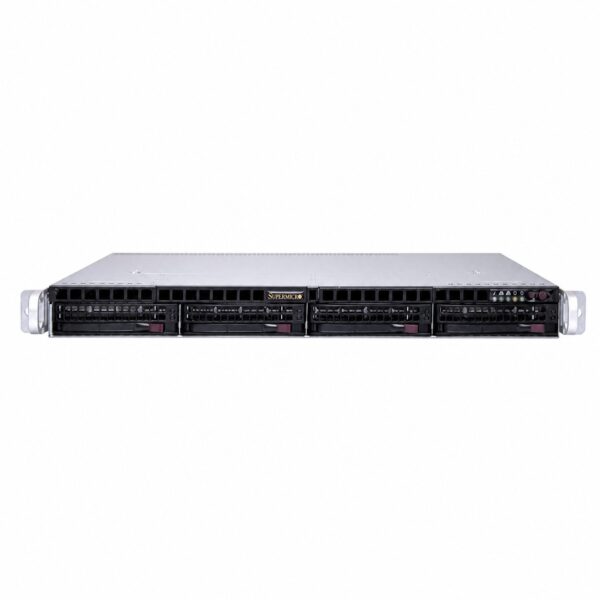

Supermicro SuperServer SYS-6019P-MTR

Supermicro SuperServer SYS-6019P-MTR Specifications

Key Features & Target Applications

• Target Applications: Data Center Optimized, Web Server, Enterprise Server, Managed Hosting, Short Depth Deployment.

• Form Factor: 1U Short-Depth Rackmount.

• Motherboard: Super X11DPL-i.

Hardware Architecture

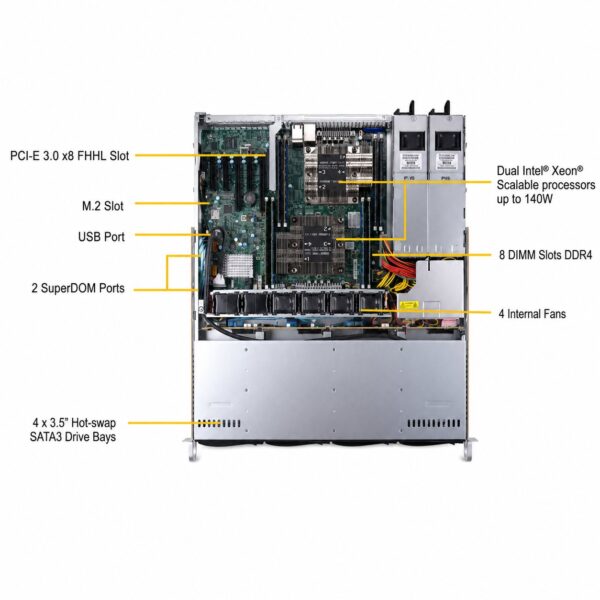

Storage & Expansion Slots

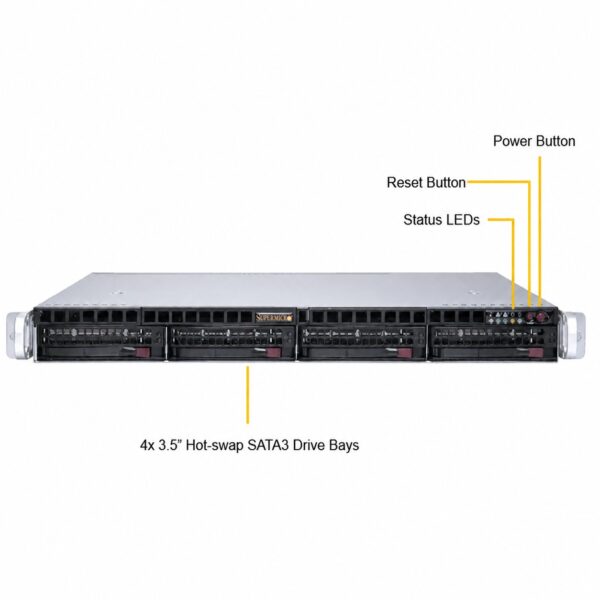

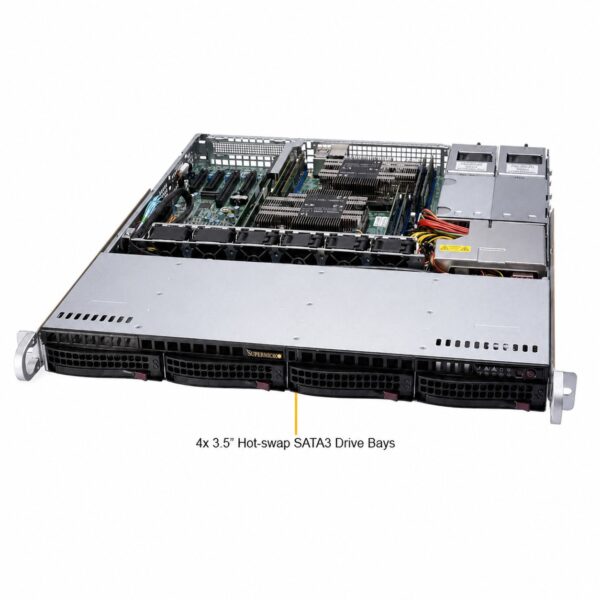

• Drive Bays: 4x Hot-swap 3.5″ SATA3 drive bays

• M.2 Slot: 1x PCIe / SATA M.2 connector (2280 form factor support)

• DOM Ports: 2x SuperDOM (Disk on Module) ports

• PCIe Expansion: 1x PCI-E 3.0 x8 slot (Full-Height, Half-Length / FHHL) via riser card

• Storage Controller: Onboard SATA3 (6Gbps) with software RAID 0, 1, 5, 10

Connectivity & System Management

• Network Controller: 2x 1GbE LAN ports (via Marvell 88E1512 PHY)

• Management Controller: Integrated IPMI 2.0 + KVM-over-LAN with a dedicated RJ45 management port

• Graphics Controller: ASPEED AST2500 BMC

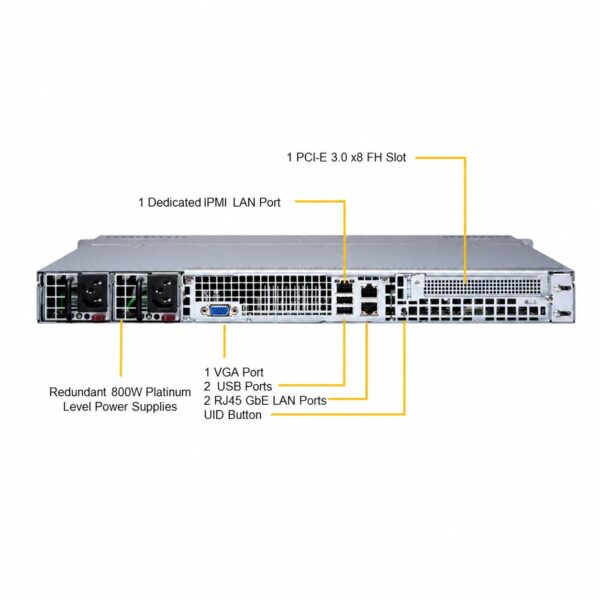

• Rear I/O Ports:

  • 2x RJ45 Gigabit Ethernet ports

  • 1x RJ45 Dedicated IPMI LAN port

  • 2x USB 2.0 ports

  • 1x VGA port

  • 1x Serial COM header

Physical & Power Specifications

• Chassis Model: CSE-813MF2TS-R804CB

• Dimensions (W x H x D): 17.2″ (437 mm) x 1.7″ (43 mm) x 19.98″ (508 mm)

• Gross Weight: 30.0 lbs (13.6 kg)

• Power Supply: 800W Redundant Power Supplies (80 PLUS Platinum Level certified, PMBus support)

• Power Input: 100–127Vac / 200–240Vac / 230–240Vdc

• System Fans: 4x PWM cooling fans
