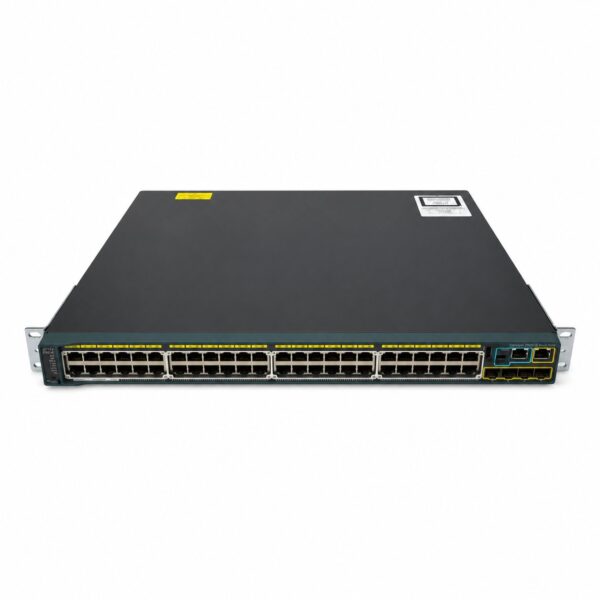

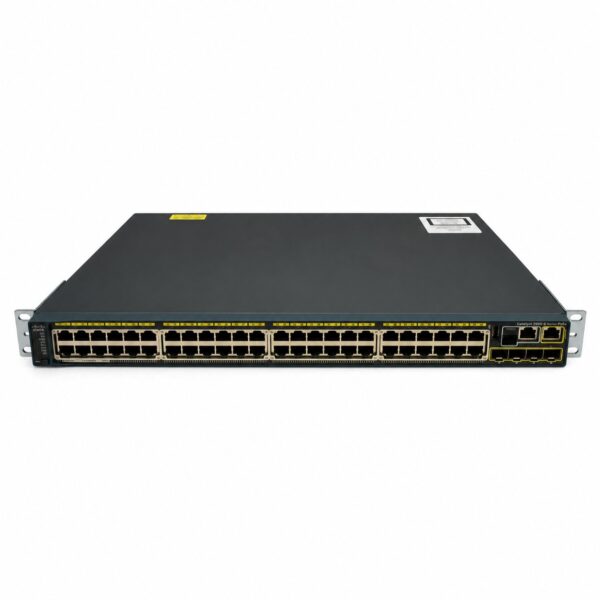

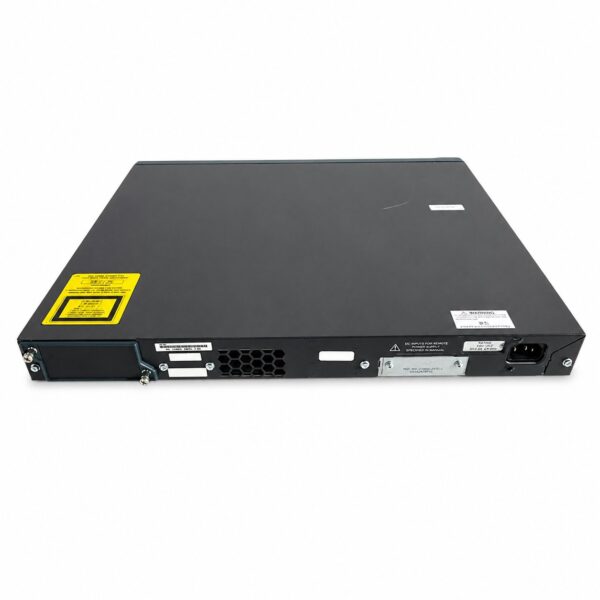

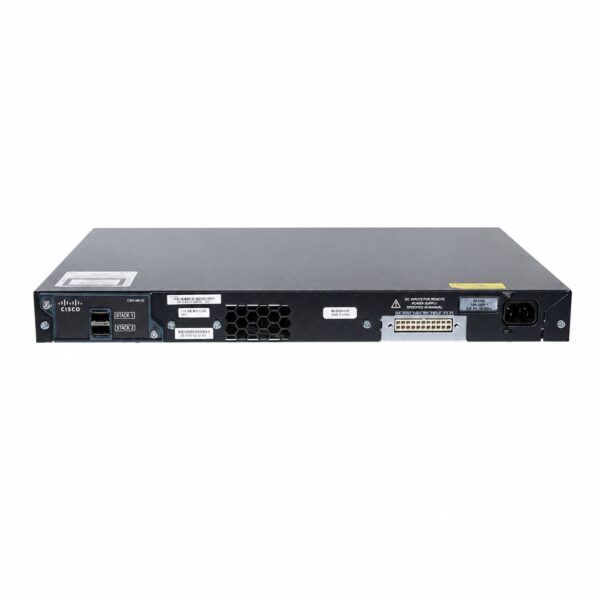

Cisco Catalyst WS-C2960S-48FPS-L
WS-C2960S-48FPS-L
Enterprise stock · tested · export documentation available
Cisco Catalyst WS-C2960S-48FPS-L Switch – Product Specifications
| Category | Specifications |
|---|---|
| General | |
| Device Type | Switch – 48 ports – Managed – stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 (PoE+) + 4 x 1G SFP (uplink) |
| Power Over Ethernet (PoE) | PoE+ (740W PoE budget) |
| Switching Capacity | 88 Gbps (or 176 Gbps full-duplex) |
| Forwarding Performance | 77.4 Mpps (64-byte packets) |
| MAC Address Table Size | 8K entries |
| Software | Cisco IOS LAN Base |
| Memory | |
| DRAM | 128 MB |
| Flash Memory | 64 MB |
| Networking & Standards | |
| VLANs | 255 (active VLANs), 4000 VLAN IDs |
| Jumbo Frame Support | Yes (up to 9216 bytes) |
| Standards | IEEE 802.1D, 802.1p, 802.1Q, 802.1s, 802.1w, 802.1X, 802.1ab (LLDP), 802.3ad (LACP), 802.3af (PoE), 802.3at (PoE+), 802.3x, 802.3, 802.3u, 802.3ab, 802.3z |
| Features & QoS | |
| Layer | Layer 2 |
| QoS | 802.1p CoS, SRR, Weighted Tail Drop, Strict Priority Queuing, Rate Limiting |
| Security | SSH, RADIUS, TACACS+, Port Security, ACLs |
| Management | SNMP v1/v2c/v3, RMON, Telnet, HTTP/HTTPS, SSH, CLI |
| Physical & Environmental | |
| Dimensions (WxDxH) | 44.5 x 38.6 x 4.5 cm (or 45 x 445 x 386 mm) |
| Weight | 5.9 kg |
| Power | AC 100-240V, 50-60Hz |
| MTBF | ~189,000 hours |
| Operating Temperature | -5°C to 40°C |
