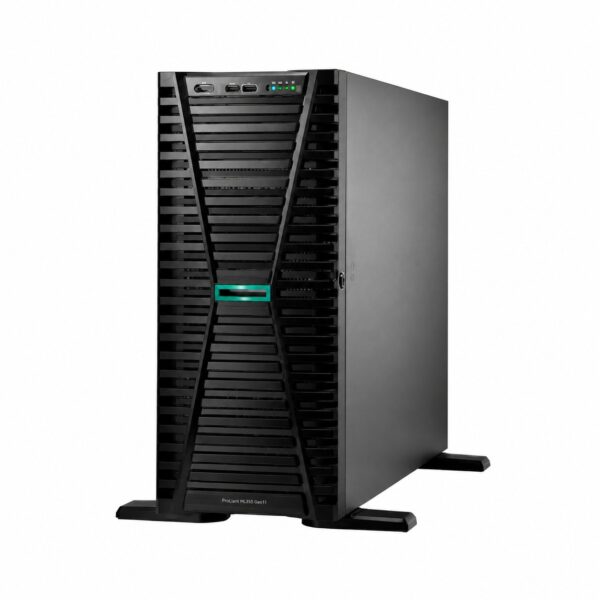

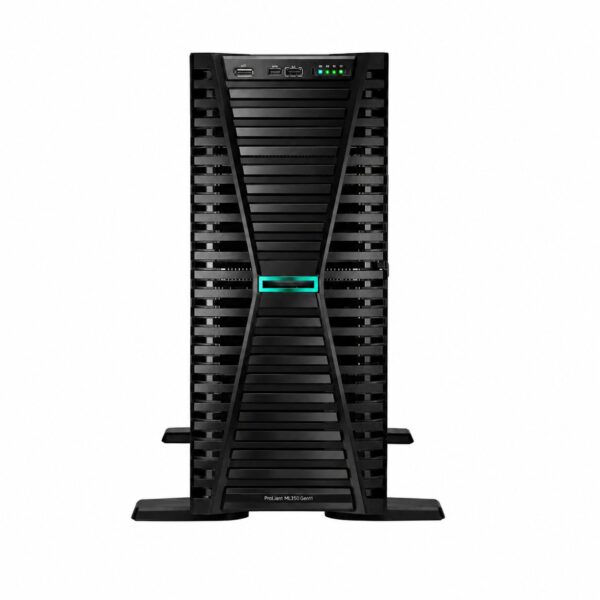

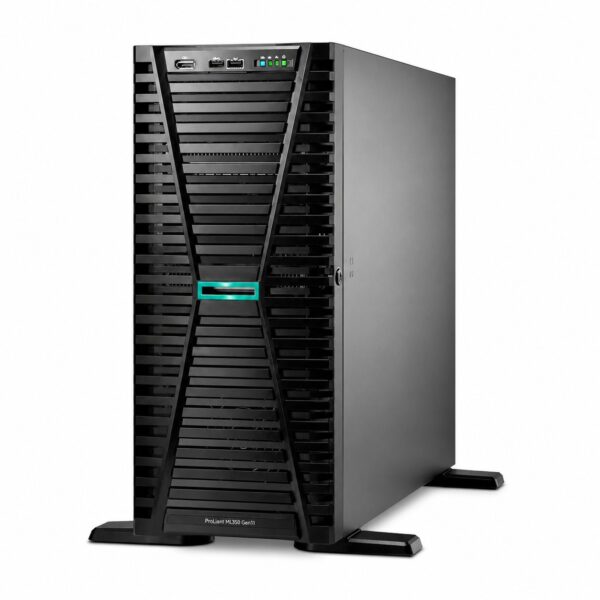

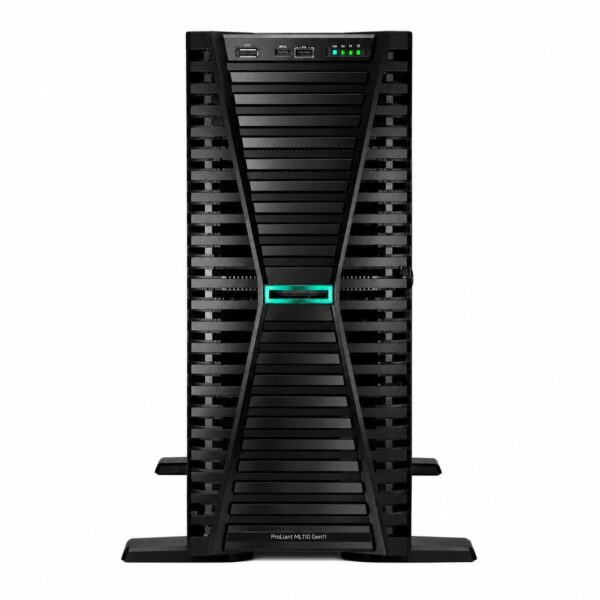

HPE ProLiant ML110 Gen11

Quick Specifications Matrix

Feature	Technical Specification

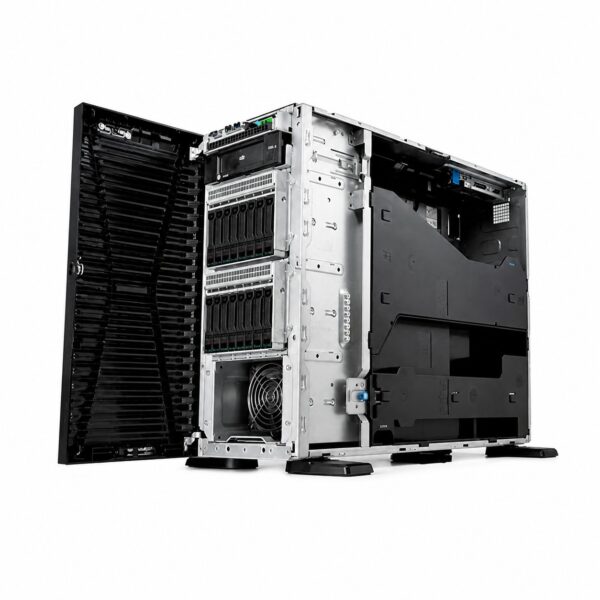

Form Factor	4.5U Tower (Rack-mountable with optional conversion kit)
Processor	1x 4th or 5th Gen Intel® Xeon® Scalable Processor (up to 32 cores, 185W TDP)
Memory	16x DDR5 DIMM slots, max capacity up to 1 TB RDIMM
Expansion	Up to 4x PCIe 5.0 slots + 1x OCP 3.0 slot
Drive Bays	Up to 8 LFF (3.5″) or 16 SFF (2.5″) Hot-Plug SAS/SATA/NVMe drives
Management	HPE iLO 6 Standard, HPE GreenLake for Compute Ops Management
Power Supply	Up to 2x Flex Slot Redundant Power Supplies (500W / 800W / 1000W / 1600W)

Detailed Technical Specifications

1. Compute & Processor

• Processor Family: 4th & 5th Generation Intel® Xeon® Scalable Processors (Bronze, Silver, Gold series).

• Processor Sockets: 1 (Single Socket).

• Maximum Core Count: Up to 32 Cores per processor.

• Thermal Design Power (TDP): Supports processors up to 185W TDP (standard air cooling) / 205W TDP.

• Chipset: Intel® C741 Series Chipset.

2. Memory

• Memory Type: DDR5 Registered (RDIMM) SmartMemory with ECC Protection.

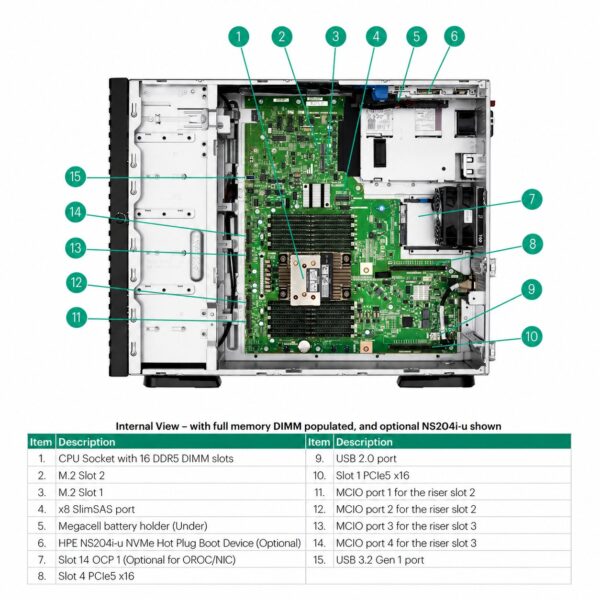

• DIMM Slots: 16 total slots (8 channels per processor, up to 2 DIMMs per channel).

• Maximum Capacity: 1 TB (16 x 64 GB RDIMM).

• Speed: Up to 4800 MT/s (4th Gen) or 5600 MT/s (5th Gen), depending on the processor model.

3. Storage & Controllers

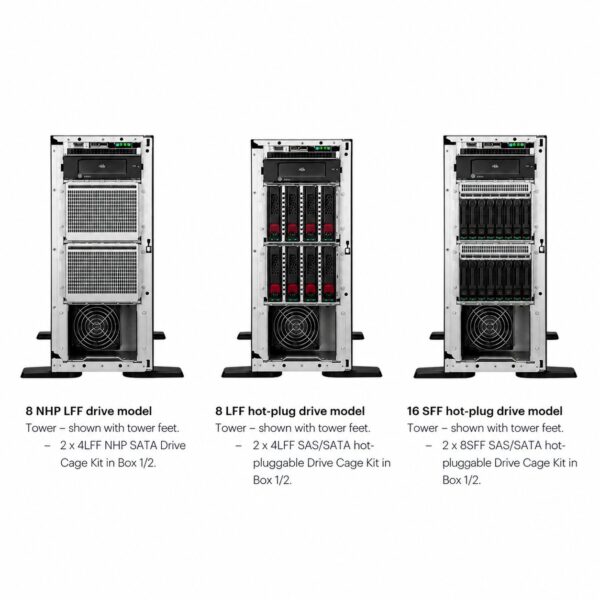

• Hot-Plug Drive Bay Options:

  • 8 LFF (3.5-inch): SAS/SATA HDDs/SSDs or NVMe SSDs.

  • 16 SFF (2.5-inch): SAS/SATA HDDs/SSDs or NVMe SSDs.

  • Non-Hot-Plug: Entry-level 8 LFF SATA options available.

• OS Boot Support: Dual M.2 NVMe Boot Enablement Kit or HPE NS204i-u HW RAID M.2 Boot Device.

• Storage Controllers:

  • Embedded: Intel® VROC (Virtual RAID on CPU) SATA/NVMe.

  • Dedicated RAID: HPE Smart Array / Tri-Mode Controllers (PCIe Gen4/Gen5 SR/MR series).

4. Expansion Slots & Accelerator (GPU) Support

• PCIe Expansion: Up to 4x PCIe 5.0 slots:

  • Slot 1: PCIe 5.0 x16 Full-Height, Half-Length

  • Slot 2: PCIe 5.0 x16 Full-Height, Full-Length

  • Slot 3: PCIe 5.0 x8 Full-Height, Half-Length

  • Slot 4: PCIe 5.0 x8 Full-Height, Half-Length

• GPU Accelerator Support: Supports up to 2x single-width or 1x double-width GPU (e.g., NVIDIA L4 / T4) for AI inference, VDI, and graphic rendering.

5. Networking & I/O Ports

• Embedded Network: 2x 1GbE embedded LOM ports.

• Network Expansion: 1x OCP 3.0 Small Form Factor slot (PCIe Gen5) supporting up to 10GbE / 25GbE adapters without consuming standard PCIe slots.

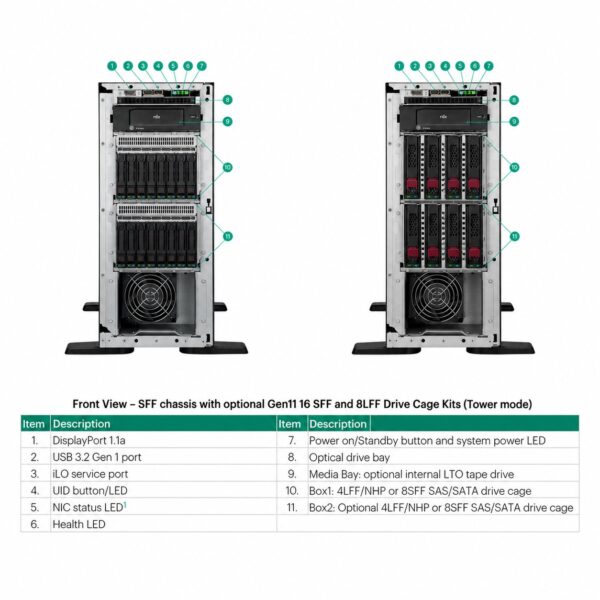

• I/O Ports:

  • Front: 1x USB 3.2 Gen1, 1x iLO Service Port.

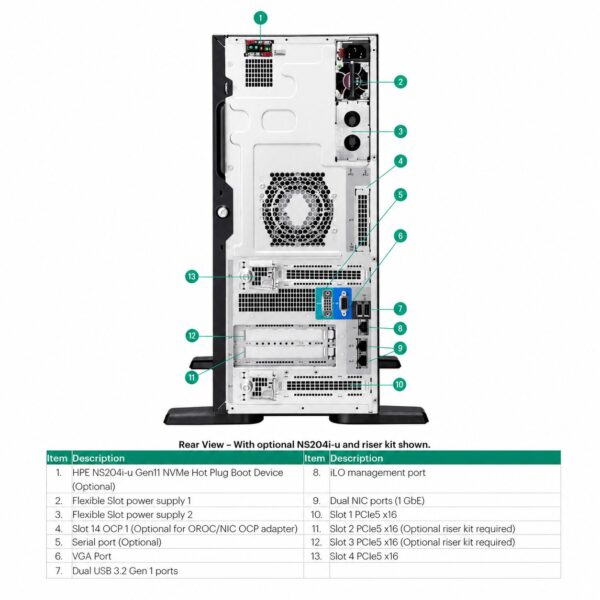

  • Rear: 4x USB 3.2 Gen1, 1x VGA Display Port, 1x Dedicated iLO 6 Management Port, 2x RJ-45 network ports.

6. Security & Infrastructure Management

• Remote Management: HPE Integrated Lights-Out 6 (iLO 6) standard with RESTful API.

• Cloud Operations: HPE GreenLake for Compute Ops Management integration.

• Security Features:

  • HPE Silicon Root of Trust (immutable hardware fingerprint embedded in custom ASIC).

  • TPM 2.0 (Trusted Platform Module) embedded.

  • Secure Boot and Secure Start support.

  • Optional Chassis Intrusion Detection & Locking Bezel Kit.

7. Power & Physical Specifications

• Power Supplies: HPE Flex Slot Hot-Plug Redundant Power Supplies (500W, 800W, 1000W, 1600W; 80 PLUS Titanium/Platinum certified).

• Cooling: Hot-plug system fans.

• Dimensions (H x W x D): 46.2 x 19.5 x 48.0 cm (18.19 x 7.68 x 18.90 inches).

• Weight: Minimum ~17.5 kg (38.58 lbs); Maximum ~28.0 kg (61.73 lbs).
