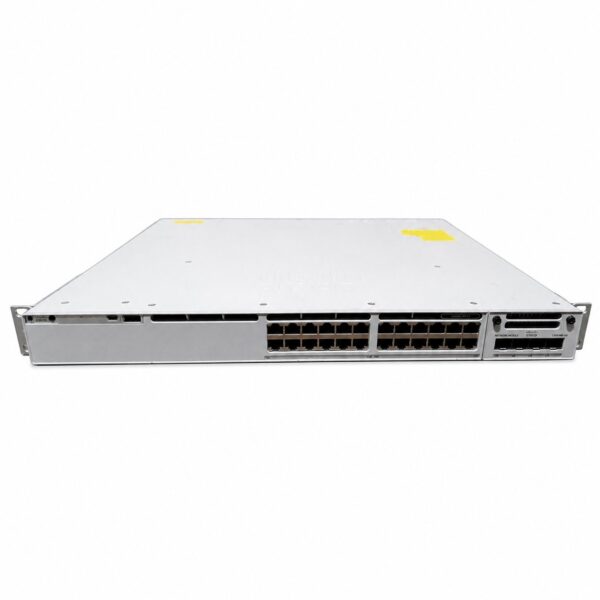

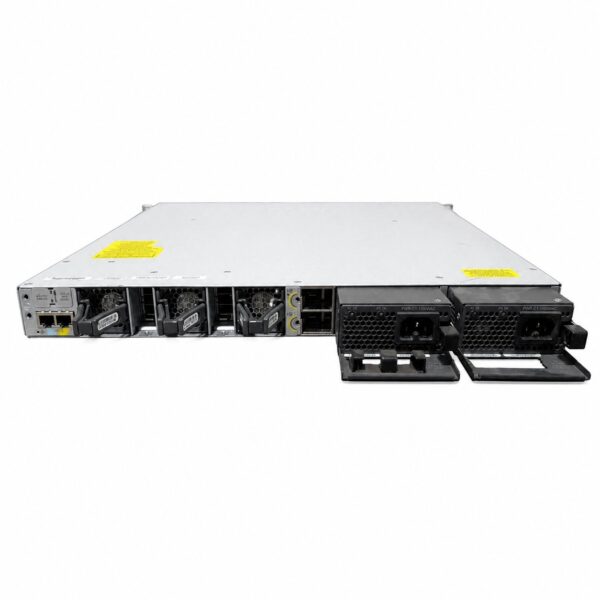

Cisco Catalyst C9300-24T-E

Product Overview

The Cisco Catalyst C9300-24T-E is a stackable, managed Gigabit Ethernet switch. It is part of the Catalyst 9000 family and is built as an enterprise access switching platform for security, IoT, and the cloud . This model is a “data only” switch, meaning it does not provide Power over Ethernet (PoE) .

Key Features and Benefits

• High Performance: Provides a switching capacity of up to 128 Gbps and a forwarding rate of 154.76 Mpps .

• Stacking Technology: Supports Cisco StackWise-480 technology, offering up to 480 Gbps of stacking bandwidth for robust performance and network expansion .

• Advanced Security: Features integrated security capabilities like Encrypted Traffic Analytics (ETA) and Cisco TrustSec for comprehensive Network Access Control (NAC) .

• Programmability: Based on the Cisco UADP 2.0 Application-Specific Integrated Circuit (ASIC) with programmable pipeline and micro-engine capabilities .

• Networking Standards: Compliant with a wide range of IEEE standards including 802.1D, 802.1Q, 802.3ab, 802.3ad (LACP), 802.1w, and 802.1x .

Detailed Specifications

The following specifications are compiled from multiple sources :

Operating Environment

• Operating Temperature: -5°C to 40°C (23°F to 113°F)

• Storage Temperature: -40°C to 70°C (-40°F to 158°F)

• Operating Humidity: 5% to 90% (non-condensing)
