Supermicro SuperServer SYS-511B-TR

Supermicro SuperServer SYS-511B-TR Specifications

Key Features

• Single Socket E (LGA-4677) supporting 5th & 4th Gen Intel® Xeon® Scalable Processors

• 8 DIMM Slots supporting up to 2TB ECC Registered DDR5-5600MHz / 4800MHz RDIMM

• 4 Hot-swap 3.5″ Drive Bays (SATA3 by default; SAS3 supported via optional HBA/RAID controller)

• 1 PCIe 5.0 x16 Full-Height, Full-Length slot

• 1 PCIe 5.0 x8 AIOM / OCP 3.0 Flexible Networking slot

• Redundant Power Supplies: 600W / 500W Titanium/Platinum Level Redundant Power Supplies

• Form Factor: 1U Rackmount

System Specifications

Feature	Specification
Product Model	SuperServer SYS-511B-TR
Motherboard	Super X13SED-F
Chassis	CSE-813MFTS-R600CB (1U Rackmount)

Processor & Chipset

• CPU: Single Socket E (LGA-4677)

• Supported CPUs: 5th and 4th Gen Intel® Xeon® Scalable Processors

• TDP Support: Up to 350W TDP

• Chipset: Intel® C741 Chipset

System Memory

• Memory Capacity: 8x DIMM slots, supports up to 2TB ECC DDR5 RDIMM

• Memory Type: 5600MHz / 4800MHz ECC DDR5 RDIMM

• Memory Voltage: 1.1V

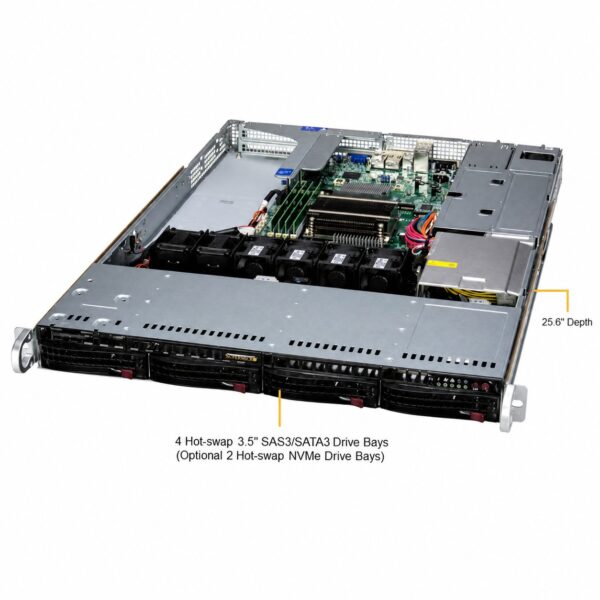

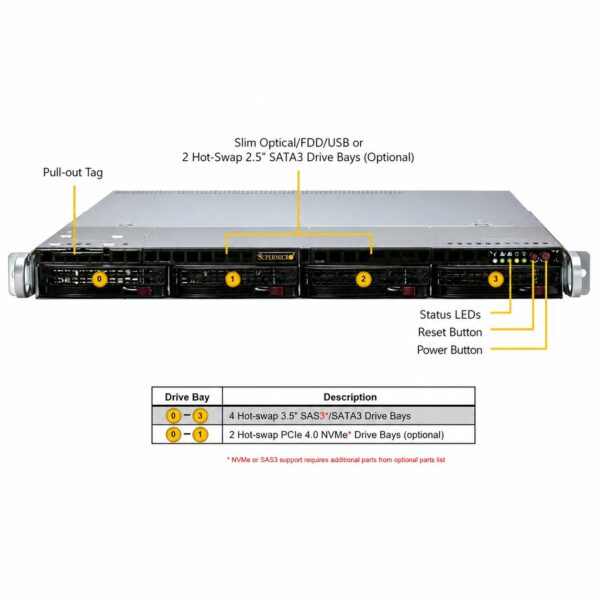

Drive Bays & Storage

• Hot-Swap Bays: 4x 3.5″ Hot-swap SATA3 drive bays

• M.2 Slot: 2x PCIe 4.0 x4 M.2 slots (M-Key, Form Factor 2280/22110)

• Storage Controller: Onboard Intel® C741 SATA3 (6Gbps); RAID 0, 1, 5, 10 supported

Expansion Slots

• PCI-Express: 1x PCIe 5.0 x16 Full-Height, Full-Length (FHFL) slot

• Network Expansion: 1x PCIe 5.0 x8 AIOM slot (OCP 3.0 Compatible)

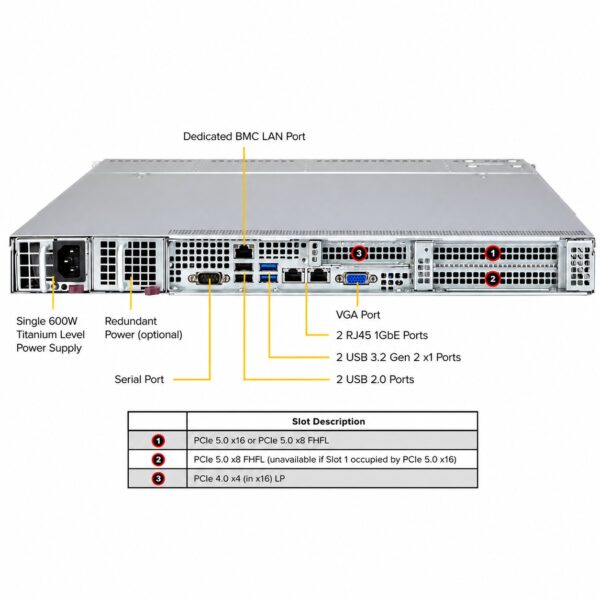

Input / Output & Networking

• LAN: 2x 1GbE RJ45 ports via Intel® i210-AT (or via optional AIOM module)

• Management Port: 1x Dedicated RJ45 IPMI LAN port

• USB Ports: 4x USB 3.2 Gen 1 ports (2 rear, 2 via header), 2x USB 2.0 ports

• Video: 1x VGA Port

• Serial Port: 1x COM Port (1 rear)

System Management

• IPMI: Support for Intelligent Platform Management Interface v.2.0

• IPMI Controller: ASPEED AST2600

• Software Tools: Supermicro Out-of-Band (OOB) License, Supermicro Server Manager (SSM), Supermicro Power Manager (SPM), Supermicro Update Manager (SUM)

• Features: KVM-over-LAN, Virtual Media over LAN

System Cooling

• Fans: 4x 40x40x28mm heavy-duty PWM cooling fans

Power Supply

• Power Capacity: 600W / 500W Redundant Power Supplies with PMBus

• Efficiency: 96%+ Efficiency (Titanium Level) / 94%+ Efficiency (Platinum Level)

• AC Input Voltage: 100–240V AC, 50–60Hz

Dimensions & Weight

• Height: 1.7″ (43 mm)

• Width: 17.2″ (437 mm)

• Depth: 19.85″ (504 mm)

• Gross Weight: ~33.5 lbs (15.2 kg)

• Net Weight: ~21 lbs (9.5 kg)

Operating Environment

• Operating Temperature: 10°C to 35°C (50°F to 95°F)

• Non-Operating Temperature: -40°C to 60°C (-40°F to 140°F)

• Operating Relative Humidity: 8% to 90% (non-condensing)

• Certifications: CE, FCC Class A, UL/cUL, RoHS Compliant
