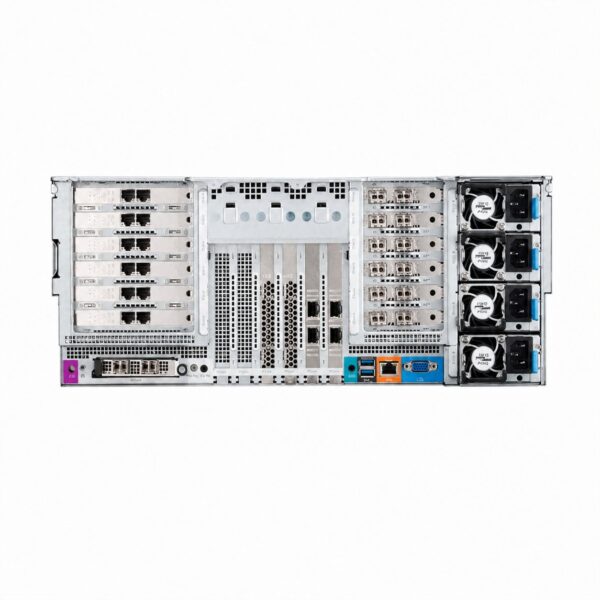

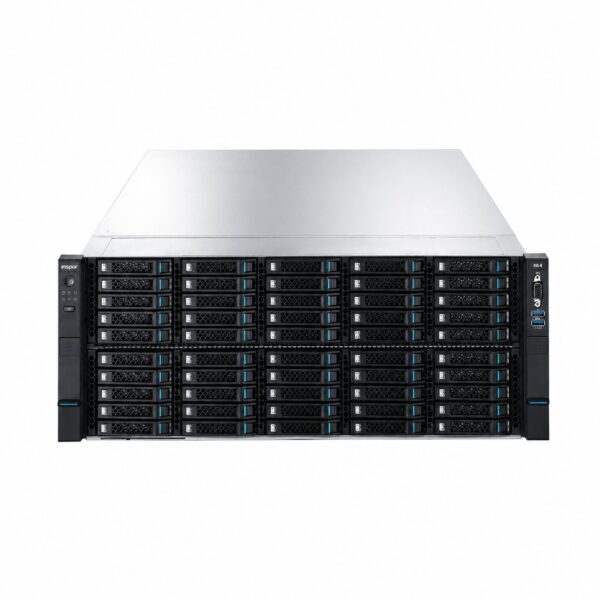

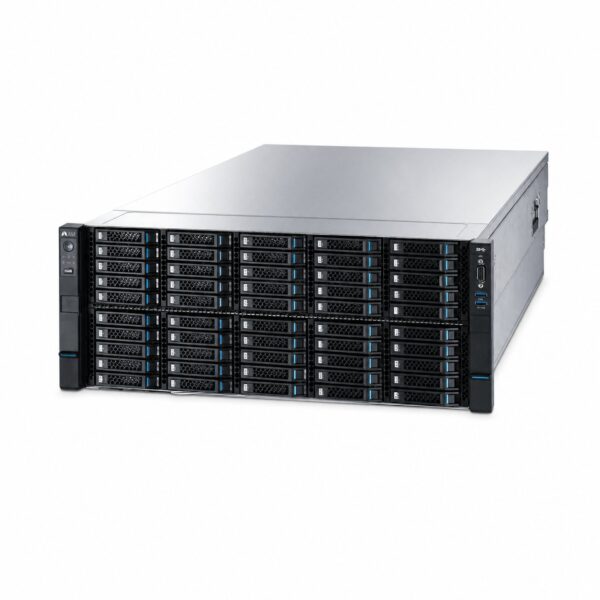

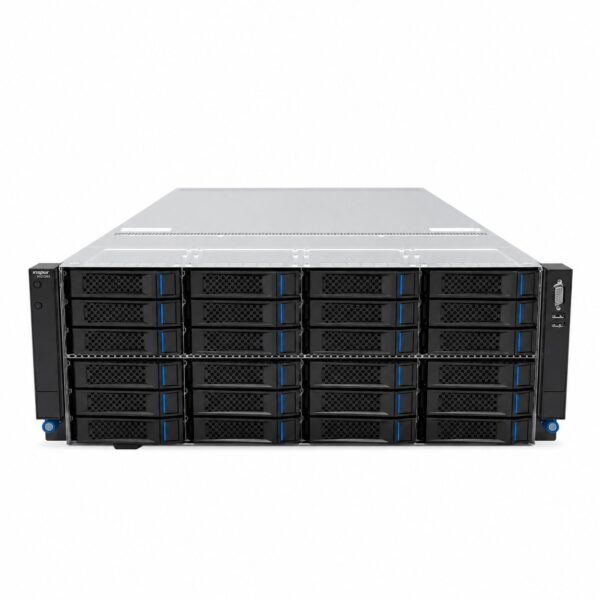

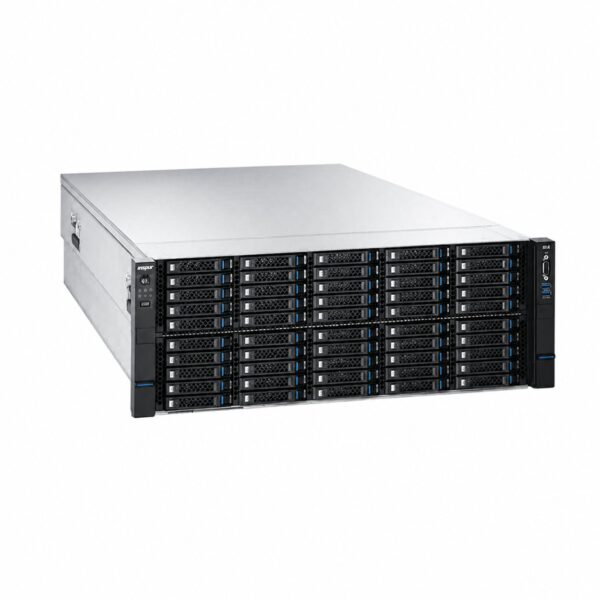

Inspur NF8480M6 4U Rack Server

The Inspur NF8480M6 is a high-end 4U 4-socket rack server powered by 3rd Generation Intel® Xeon® Scalable processors. Engineered for mission-critical enterprise workloads, large-scale databases, SAP HANA, and hyper-dense virtualization environments, it delivers massive memory capacity, high expansion density, and enterprise-grade reliability.

Key Highlights

High Compute Density: Accommodates up to 4 Intel® Xeon® Scalable processors within a compact 4U chassis.
Extensive Memory Capability: Features 48 DDR4 DIMM slots supporting up to 18 TB total memory and Intel® Optane™ Persistent Memory.
Flexible Storage & Expansion: Up to 24x 2.5″ or 3.5″ drive bays supporting SAS/SATA/NVMe SSDs, alongside up to 18 PCIe slots for high-speed connectivity or GPU acceleration.
Enterprise Reliability (RAS): Fully modular design equipped with N+N redundant hot-swap power supplies and cooling modules to ensure 24/7 continuous operation.

Technical Specifications

Feature / Subsystem	Specifications
Form Factor	4U Rack Server
Processors	Up to 4x 3rd Gen Intel® Xeon® Scalable Processors (Cooper Lake architecture) Up to 28 cores per processor, TDP up to 250W
Chipset	Intel® C621A Series Chipset
Memory	• 48x DDR4 DIMM slots (up to 3200 MHz) • Supports ECC RDIMM / LRDIMM • Supports Intel® Optane™ Persistent Memory 200 Series
Storage Bays	• Front: Up to 24x 2.5″ / 3.5″ SAS/SATA/NVMe drive bays • Internal: Dual M.2 SSD slots for OS boot drive redundancy
Storage Controllers	Hardware RAID controllers (RAID 0/1/5/6/10/50/60) with cache protection and supercaps
Network Interfaces	• 1x Dedicated OCP 3.0 NIC slot (10GbE / 25GbE / 100GbE options) • Integrated management network ports
PCIe Expansion	Up to 18x PCIe 3.0 slots (supporting full-height/full-length add-in cards and GPUs)
Power Supply	Redundant hot-swap power supply units (80 Plus Platinum / Titanium): • Options: 2000W / 3000W (Supports 1+1, 2+2, or 3+1 redundancy configurations)
Cooling System	Hot-swappable N+1 redundant cooling fans
System Management	Inspur ISMC (Inspur Server Management Center) • IPMI 2.0, KVM over IP, Virtual Media, Redfish API, SNMP
Supported Operating Systems	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, Ubuntu Server, CentOS
Operating Environment	Operating Temperature: 5°C to 40°C (41°F to 104°F)
