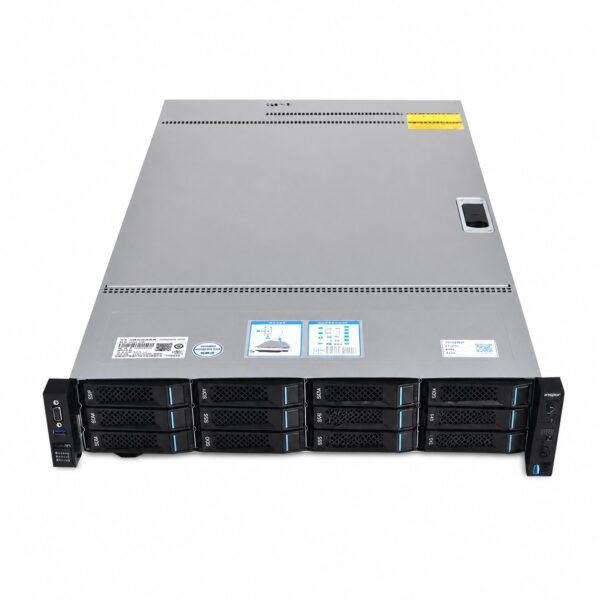

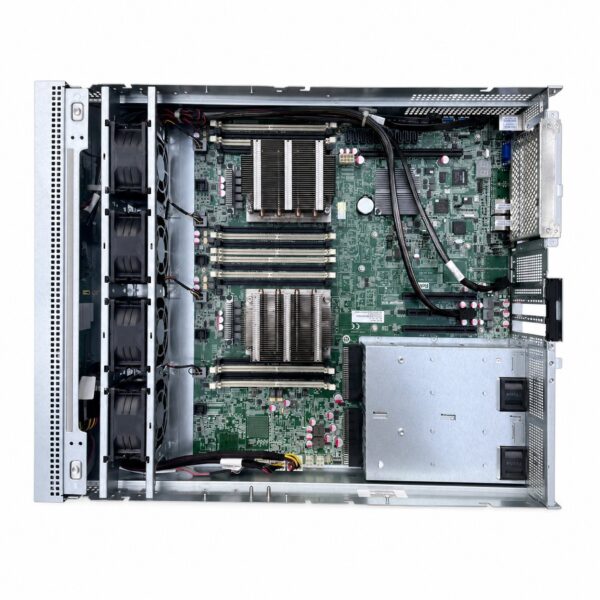

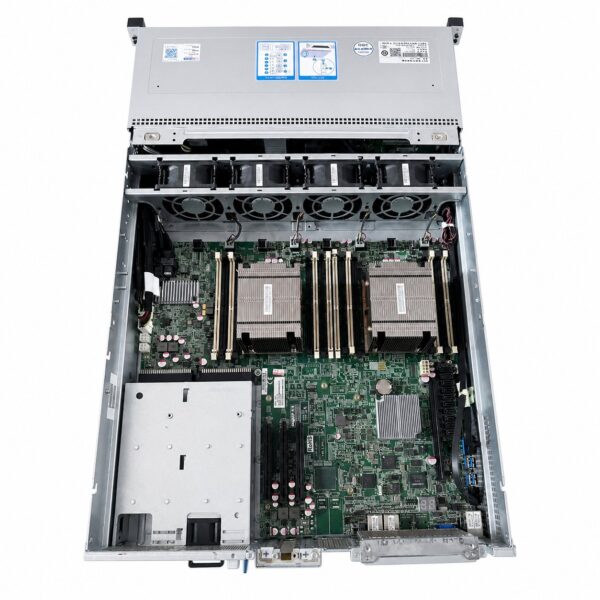

Name: Inspur SA5212M4 2U Rack-mountable server chassis - SunSpike
SKU: SA5212M4

Inspur SA5212M4 Datasheet & Technical Specifications

Product Overview

The Inspur SA5212M4 is a 2U dual-socket rackmount storage server optimized for high-density storage, enterprise data centers, cloud computing, virtualization, and Big Data storage nodes. Powered by the Intel Xeon E5-2600 v3/v4 product families, it balances flexible computing performance with ultra-high storage density, supporting up to 12 x 3.5-inch front drive bays and optional rear drive bays.

Key Technical Specifications

Feature	Technical Specification
Form Factor	2U Rack-mountable server chassis
Processor Family	Up to 2 x Intel Xeon E5-2600 v3 / v4 series processors (Up to 145W TDP per socket)
Processor Socket	Dual Socket R3 (LGA 2011-3)
Chipset	Intel C610 Series Chipset (Wellsburg)
Memory Slots	16 x DDR4 DIMM slots (4 channels per CPU)
Max Memory Capacity	Up to 1 TB / 1024 GB (using 64GB RDIMM/LRDIMM) at speeds up to 2400 MHz; supports ECC, memory mirroring, and memory rank sparing

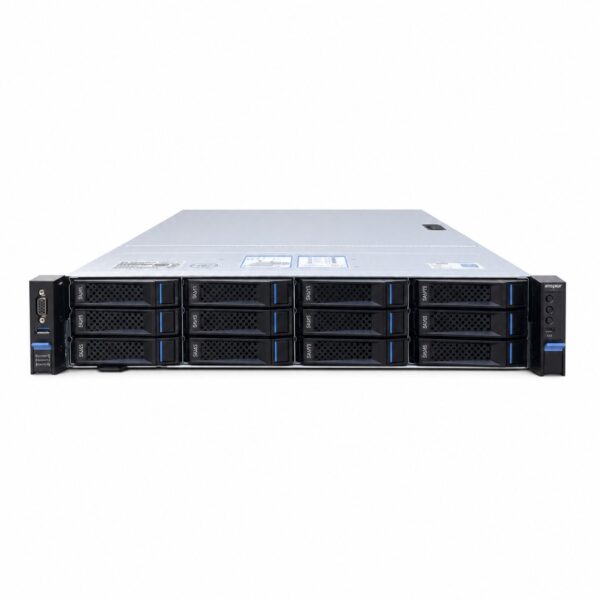

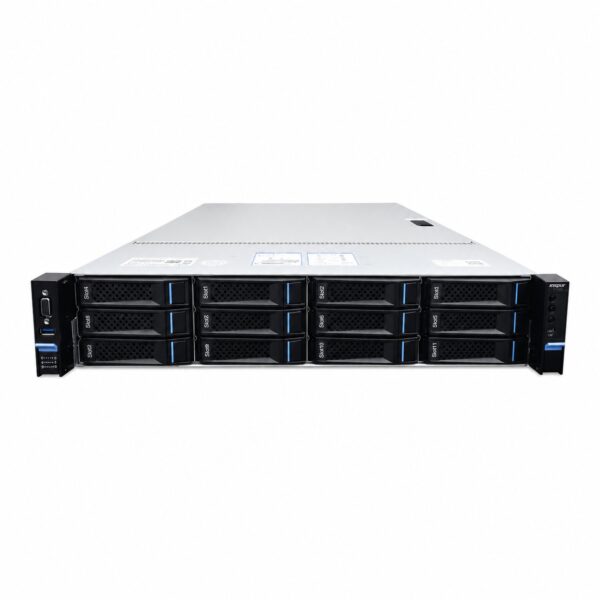

Storage Drive Bays	• Front: Up to 12 x 3.5-inch hot-swappable SAS / SATA / SSD bays • Rear: Optional 2 x 2.5-inch hot-swappable SAS / SATA / SSD rear bays
Storage Controller	Onboard SAS3008 12Gb/s SAS controller or PCIe High-Performance 12Gb/s SAS RAID controller (supports RAID 0, 1, 5, 6, 10, 50, 60 with cache protection)
PCIe Expansion Slots	Up to 3 x PCIe 3.0 slots (via Riser card options, supporting full-height/half-length or low-profile add-on cards)
Network Interfaces	Modular or integrated network options: • Dual-port 10GbE SFP+ optical ports • Dual-port 1GbE RJ45 ports
System Management	Onboard IPMI 2.0 compliant BMC (Aspeed AST2400) with dedicated 1GbE RJ-45 management port; supports KVM over IP, virtual media, and web management
Graphics	Integrated Aspeed AST2400 2D Video Graphic Adapter (Max resolution: 1280×1024)

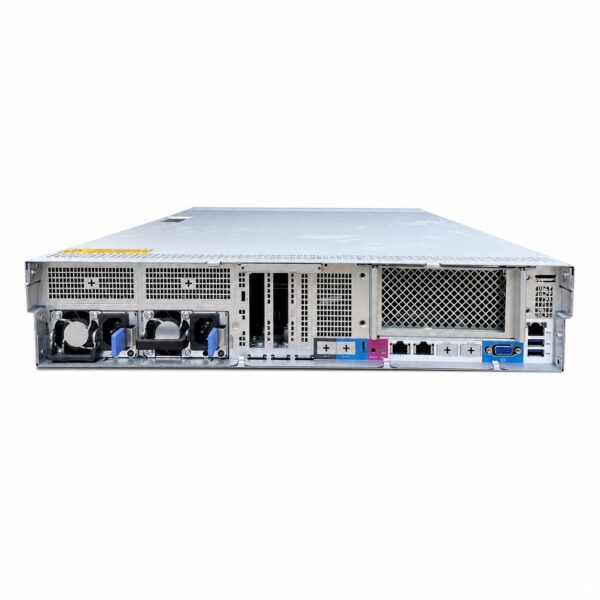

I/O Ports	2 x Rear USB 3.0, 2 x Internal USB 3.0, 1 x VGA port, 1 x Serial port (RJ45), 1 x Dedicated IPMI management port
Power Supply	Redundant 550W / 800W 80 PLUS Platinum hot-swap PSUs (1+1 configuration, supports 220V AC / 240V HVDC)
Cooling System	Redundant hot-swappable cooling fan modules
Chassis Dimensions	447 mm (W) × 87 mm (H) × 720 mm (D)
System Weight	~25 kg (fully configured)
Operating Systems	Microsoft Windows Server, Red Hat Enterprise Linux (RHEL), SUSE Linux Enterprise Server (SLES), VMware ESXi
