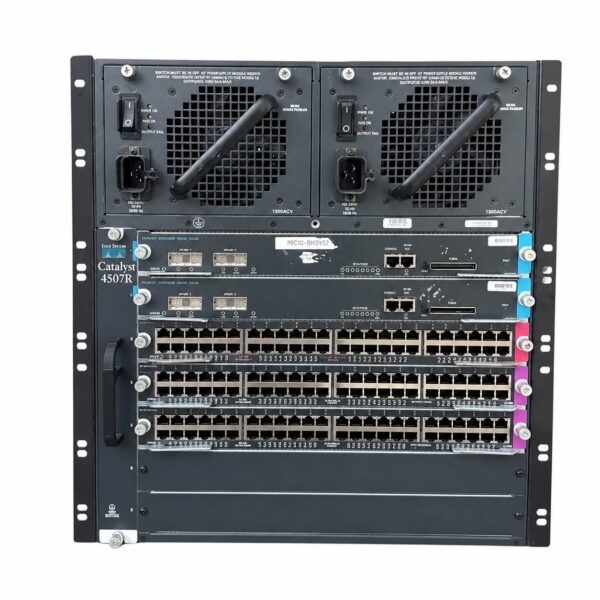

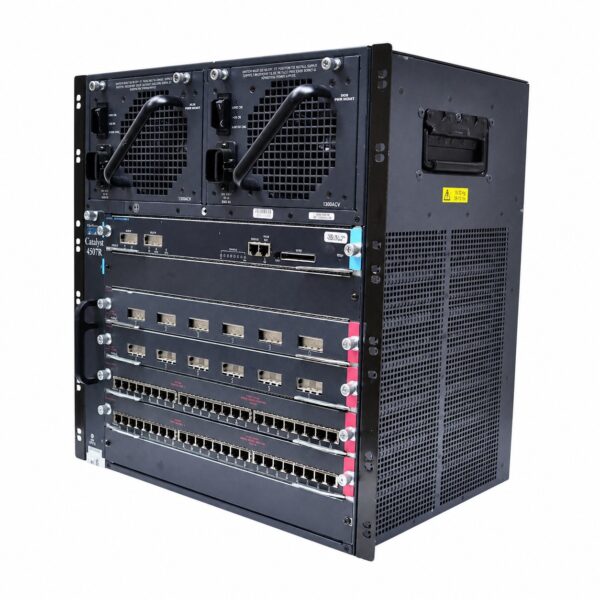

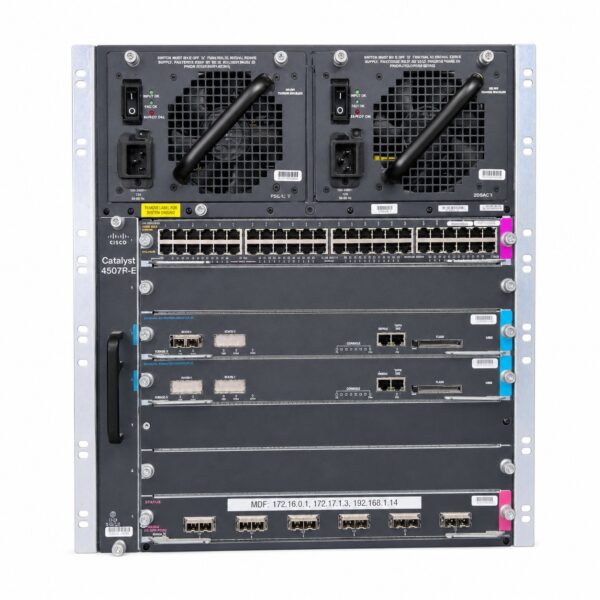

Cisco Catalyst WS-C4507R+E Switch Overview

The Cisco Catalyst WS-C4507R+E is a 7-slot modular switch chassis designed for enterprise campus core and aggregation layer deployments. It is part of the Catalyst 4500 E-Series and features a high-availability design with support for redundant supervisor engines and power supplies.

Feature	Description
Model	WS-C4507R+E (also listed as C1-C4507R+E)
Series	Cisco Catalyst 4500 E-Series
Form Factor	Modular switch chassis
Rack Units	11RU
Total Slots	7 horizontal slots, numbered from 1 (top) to 7 (bottom)
Supervisor Engine Slots	2 dedicated slots (Slot 3 and Slot 4) for 1+1 redundancy
Line Card Slots	5 slots (Slot 1, 2, 5, 6, 7)
Backplane / Per-Slot Bandwidth	Up to 48 Gbps full-duplex per line card slot
System Switching Capacity	Up to 848 Gbps
Compatible Supervisor Engines	Supervisor Engine 7-E, 7L-E, 6-E, 6L-E, V-10GE, V, IV, II-Plus-10GE, II-Plus
Power Supply Support	1+1 redundancy. Supports AC (e.g., PWR-C45-1000AC to 9000ACV) and DC power supplies
Cooling	One hot-swappable fan tray (WS-X4597+E) with 8 individual fans
Power over Ethernet (PoE)	Support for PoE, PoE+, and UPoE with compatible power supplies and line cards
Maximum Port Density	Up to 244 ports
High Availability	Supports 1+1 Supervisor Engine Redundancy with Stateful Switchover (SSO) and Nonstop Forwarding (NSF)
Layer Support	Layer 2 through Layer 4 switching and routing
Dimensions (H x W x D)	19.19 x 17.31 x 12.50 in (487.4 x 439.7 x 317 mm)
Weight	Approx. 20.07 kg (chassis only)

Additional Key Features:

Bandwidth Capacity: The chassis provides 48 Gbps of bandwidth per slot, offering investment protection for future high-bandwidth requirements.
Redundancy: The two dedicated supervisor slots and two power supply bays maximize system uptime.
Software Support: Cisco IOS Software Release 12.2(54)SG or later is required. It also supports Cisco IOS XE Software for features like ISSU.
Standards Compliance: The chassis complies with Network Equipment Building Standards (NEBS) Level 3.

Ordering Information:
The base chassis part number is WS-C4507R+E, which includes the chassis and fan tray but no power supplies. Bundles are also available, such as the WS-C4507RE+96V+, which includes the chassis, Supervisor Engine 7L-E, and two WS-X4648-RJ45V+E line cards.
