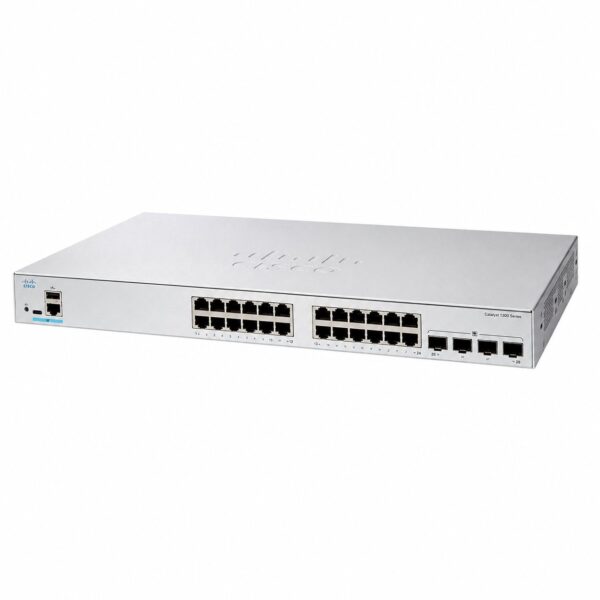

Name: Cisco Catalyst C1300-24T-4G - SunSpike
SKU: C1300-24T-4G

Product Overview

The Cisco Catalyst C1300-24T-4G is a fully managed, enterprise-class Gigabit Ethernet Layer 3 switch designed for small and medium-sized businesses and branch offices. It delivers reliable and secure connectivity, operating on customized Linux OS software with an intuitive dashboard that simplifies network setup.

Key Specifications

Category	Details
Product Model	C1300-24T-4G
Device Type	Switch – 24 ports – L3 – Managed
Enclosure Type	Rack-mountable
Subtype	Gigabit Ethernet

Port Configuration

Port Type	Quantity
10/100/1000Base-T RJ-45 ports	24
Gigabit SFP ports (uplinks)	4
Console ports	1x RJ-45, 1x USB-C

Performance

Specification	Value
Switching capacity	56 Gbps
Forwarding rate (64-byte packets)	41.66 Mpps
MAC address table size	16,000 entries
Jumbo frame support	9,000 bytes
Packet buffer size	1.5 MB
Priority queues	8

Capacity

Feature	Limit
VLAN IDs	4,093
IPv4 static routes	Up to 990
IPv4 interfaces	128
ACL rules	1,024
Link aggregation groups	8
Link aggregation ports per group	8
MSTP instances	8
RPVST+ instances	126
IGMP multicast groups	2,000

Processor & Memory

Component	Specification
Processor	ARM dual-core @ 1.4 GHz
RAM	1 GB DDR4 SDRAM
Flash Memory	512 MB

Networking Standards

IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az (Energy-Efficient Ethernet), IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Routing Protocols

STP, static IP routing, RSTP, MSTP, IGMP (v1/v2/v3), CIDR, RIP-2, policy-based routing (PBR), MLD (v1/v2), Bounjour

Remote Management Protocols

CLI, SNMP (v2c/v3), Telnet, SSH/SSH-2, DHCP, SCP, HTTPS, HTTP, ICMP, TFTP, Syslog, RMON, RADIUS

Key Features

Layer 3 switching with dynamic routing capabilities
Fanless design for silent operation
IPv4 and IPv6 dual stack support
Front panel stacking for up to 8 switches managed as a single unit
Advanced security: IEEE 802.1X, port security, ARP inspection, IP Source Guard, DHCP snooping, IPv6 First Hop Security
Quality of Service (QoS): 8 priority queues, DSCP-based CoS, WRR, Strict Priority
VLAN support: Port-based, 802.1Q tagged, MAC-based, protocol-based, private VLAN, guest VLAN
Link Aggregation with LACP
sFlow monitoring
Zero-Touch Deployment and Cisco Network Plug and Play support
Energy Efficient Ethernet (IEEE 802.3az)
Dual image support for minimal downtime during upgrades

Physical Specifications

Specification	Value
Dimensions (W x D x H)	445 x 240 x 44 mm (17.5 x 9.45 x 1.73 in)
Weight	2.63 kg (5.8 lbs)
Form Factor	1U Rack-mountable
Cooling	Fanless
Housing Material	Metal

Power Specifications

Specification	Value
Power Supply	AC 100-240V, 50-60 Hz
Max Power Consumption (110V)	14.6W
Max Power Consumption (220V)	14.8W
Idle Power	4.9W

Environmental Specifications

Condition	Range
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-25°C to 70°C (-13°F to 158°F)
Operating Humidity	10% to 90% (non-condensing)
