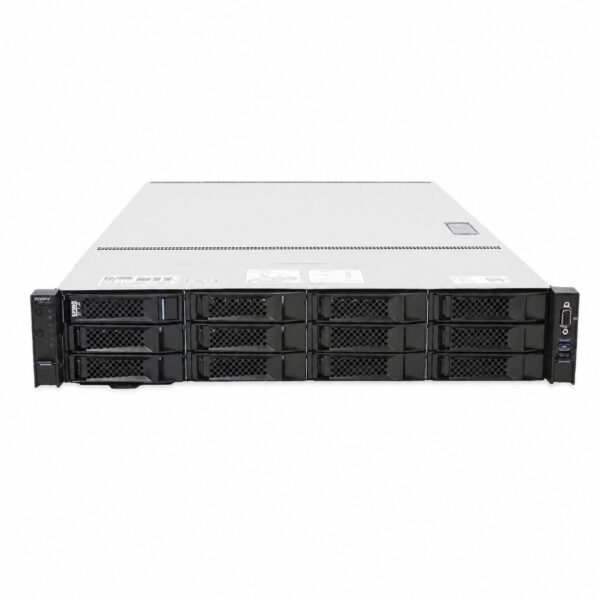

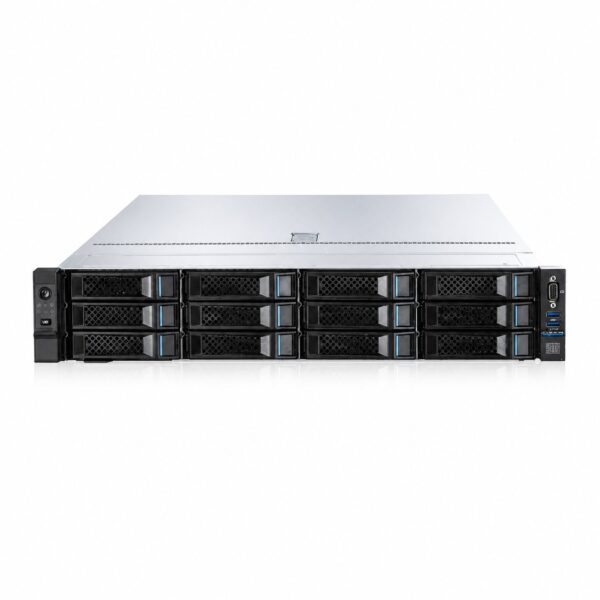

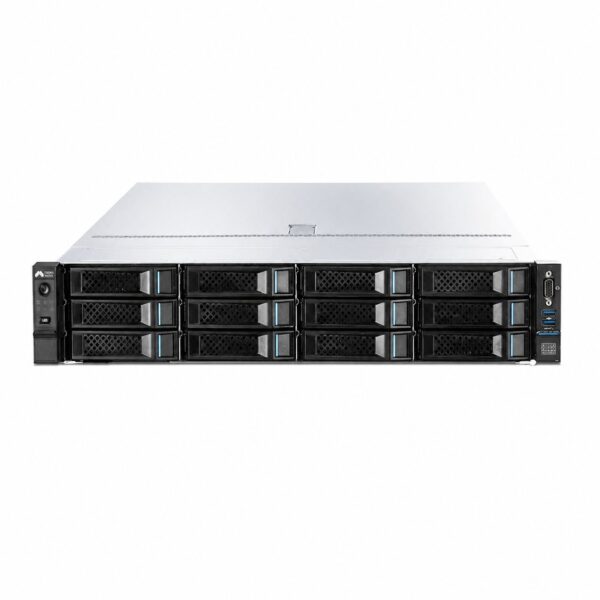

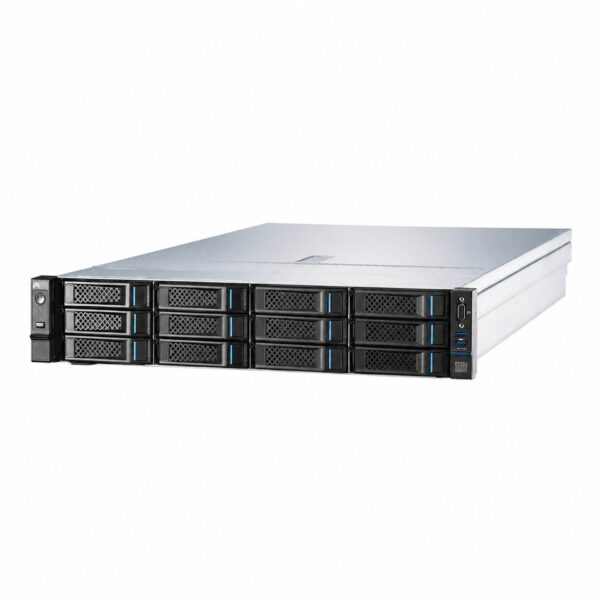

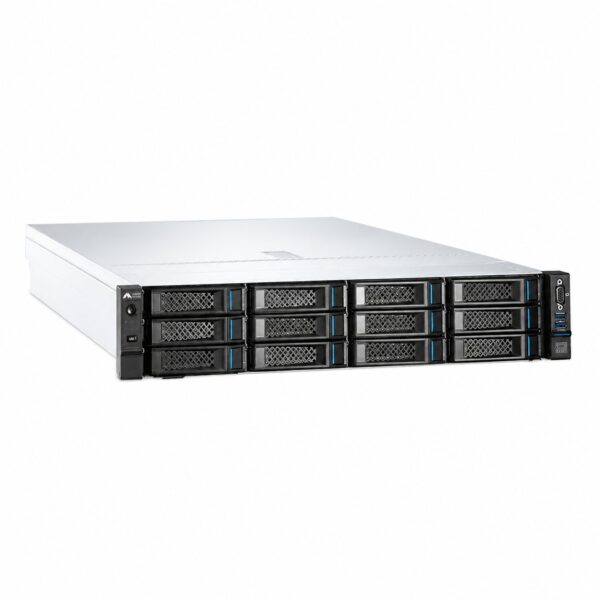

Inspur Information NF5270M6 Rack Server Datasheet

The Inspur NF5270M6 is a 2U dual-socket mainstream rack server powered by 3rd Gen Intel® Xeon® Scalable Processors. Designed for enterprise data centers, cloud computing, virtualization, big data analytics, and database applications, it delivers a balance of high compute performance, flexible storage expansion, energy efficiency, and intelligent management.

Key Highlights

High Performance: Supports up to two 3rd Gen Intel® Xeon® Scalable Processors (Ice Lake) with up to 270W TDP per CPU.
Flexible Storage & Expansion: Supports high-density drive configurations (3.5″ LFF and 2.5″ SFF SAS/SATA/NVMe SSDs) alongside PCIe 4.0 expansion slots.
Intelligent Thermal Efficiency: Optimized air duct design with smart fan speed adjustment and 80 PLUS Platinum/Titanium certified CRPS redundant power supplies.
Simplified Management: Integrated ISPMC (Inspur Server Management Console) featuring IPMI 2.0, Redfish API, and out-of-band monitoring for streamlined lifecycle operations.

Technical Specifications

Feature / Category	Specification Details
Form Factor	2U Rack Server
Processor	1 or 2 × 3rd Gen Intel® Xeon® Scalable Processors (Ice Lake) Up to 270W TDP per processor
Chipset	Intel® C621A Series Chipset
Memory	Up to 16/32 × DDR4 DIMM slots (up to 3200 MHz) Supports RDIMM, LRDIMM, and Intel® Optane™ Persistent Memory 200 Series
Storage Controllers	Hardware SAS/RAID Controllers (RAID 0/1/5/6/10/50/60 with cache protection) Onboard SATA/NVMe controllers

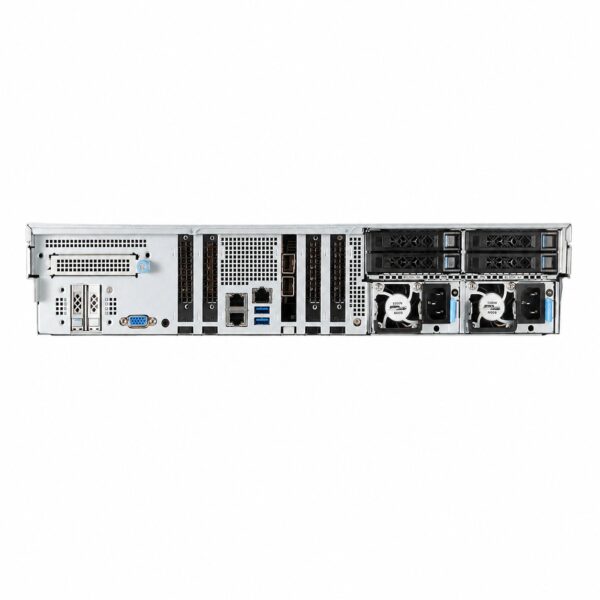

Drive Bays	Front: Up to 12 × 3.5″ SAS/SATA/NVMe HDDs/SSDs or 24/25 × 2.5″ SAS/SATA/NVMe SSDs Rear: Up to 2/4 × 2.5″ or 3.5″ hot-swappable drives Internal: Dual M.2 SSDs (PCIe/SATA) for OS boot
I/O & PCIe Slots	Up to 8 × PCIe 4.0 expansion slots (supports full-height/half-height cards and OCP 3.0 mezzanine card)
Network Interfaces	Flexible OCP 3.0 NIC module (1GbE, 10GbE, 25GbE, 100GbE options) Dedicated RJ45 management port
Power Supply	1+1 Redundant Hot-Swappable CRPS Power Supplies Options: 550W / 800W / 1300W / 1600W / 2000W AC/DC (80 PLUS Platinum / Titanium)
Cooling	N+1 Redundant hot-swappable cooling fans
Systems Management	Integrated ISPMC management controller Supports IPMI 2.0, KVM over IP, Virtual Media, Redfish API, Web GUI
Security	TPM 2.0 / TCM module, Chassis intrusion switch, Secure Boot, Firmware signature verification
Operating Systems	Microsoft Windows Server, Red Hat Enterprise Linux (RHEL), SUSE Linux Enterprise Server (SLES), VMware ESXi, Ubuntu, CentOS
Dimensions (W × H × D)	Standard 2U Chassis: 435 mm × 87.5 mm × 780 mm (17.1 in × 3.44 in × 30.7 in)
Operating Temperature	5°C to 35°C (41°F to 95°F)
