Supermicro SuperServer SYS-220BT-DNTR

The Supermicro SYS-220BT-DNTR is a high-density 2U 2-Node BigTwin™ System designed for enterprise data centers, cloud computing, hyper-converged infrastructure (HCI), and high-performance computing (HPC) environments. Each node operates independently in a multi-node chassis to maximize compute density and power efficiency.

Key Features & Highlights

• High Density: 2 independent hot-pluggable server nodes in a 2U chassis.

• Dual-Processor Compute: Powered by 3rd Gen Intel® Xeon® Scalable Processors per node.

• PCIe 4.0 Support: High-bandwidth I/O performance across NVMe drives and expansion slots.

• Flexible Networking: AIOM (Advanced I/O Module) support, compliant with OCP 3.0 standards.

• High Efficiency: Redundant Titanium Level (96% efficiency) power supplies.

Detailed Specifications (Per Node)

System Architecture

Component	Specification
System Model	Supermicro SYS-220BT-DNTR (BigTwin™)

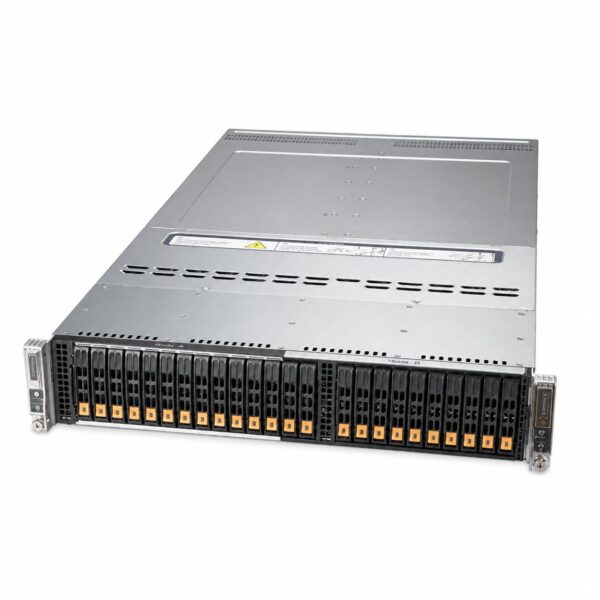

Form Factor	2U Rackmount (2 Nodes per System)

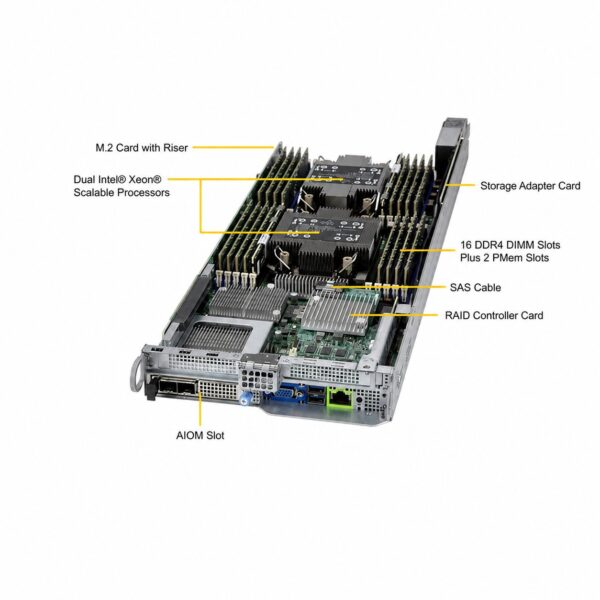

Motherboard	MBD-X12DCT-NT
Chassis	CSE-217BT-R2K21B

Processor & Chipset

Parameter	Specification
CPU Type	Dual 3rd Gen Intel® Xeon® Scalable Processors
Socket	Socket P+ (LGA 4189)
TDP Support	Up to 270W TDP
Chipset	Intel® C621A

Memory

Parameter	Specification
Memory Capacity	Up to 4TB ECC RDIMM/LRDIMM DDR4-3200MHz
DIMM Slots	16 DIMM slots per node
Persistent Memory	Supports Intel® Optane™ Persistent Memory 200 Series

Storage & Drive Bays

Parameter	Specification

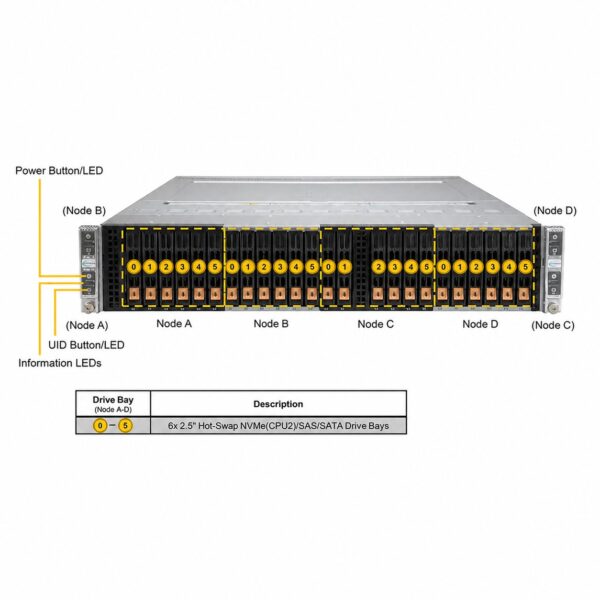

Hot-swap Bays	6x 2.5″ Hot-swap NVMe/SATA drive bays per node (12x total per system)
M.2 Support	On-board M.2 NVMe slots for boot drives (PCIe 3.0/4.0 x4)
RAID Controller	Intel® PCH SATA (0, 1, 5, 10); Hardware RAID options via add-on cards

Expansion Slots & Networking

Parameter	Specification

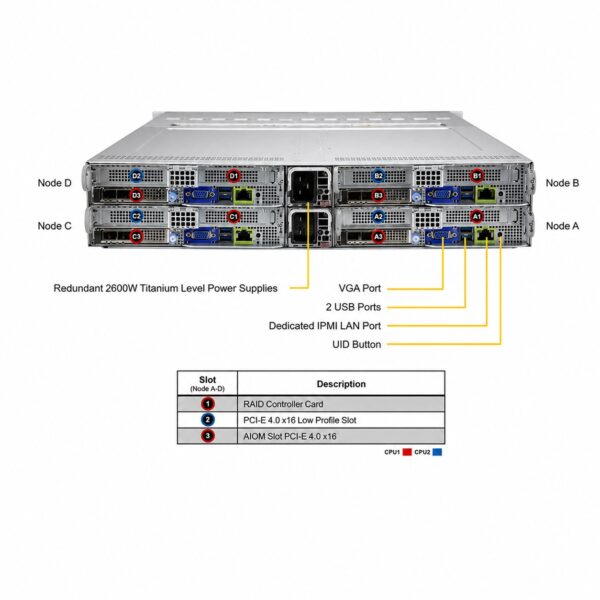

PCIe Slots	2x PCIe 4.0 x16 Low-Profile (LP) slots per node
Network Interface	1x AIOM slot per node (PCIe 4.0 x16, OCP 3.0 form factor for 1GbE/10GbE/25GbE/100GbE options)
IPMI Management	1x Dedicated RJ45 Gigabit Ethernet IPMI port per node

Power Supply & Thermal Management

Parameter	Specification
Power Supplies	2x 2200W Redundant Titanium Level (96%) Power Supplies
Input Voltage	200–240Vac / 100–127Vac
Cooling System	Heavy-duty fans with optimal zone speed control

System Management & Security

Parameter	Specification
Management Software	Supermicro Out-of-Band (OOB) Software, Supermicro Power Manager (SPM), IPMI 2.0 with Virtual Media and KVM-over-LAN
Security Hardware	Trusted Platform Module (TPM 2.0 header), Cryptographic Firmware Authentication

Operating Environment & Physical Specs

• Dimensions (W × H × D): 17.2″ (437 mm) × 3.5″ (88 mm) × 28.75″ (730 mm)

• Operating Temperature: 10°C to 35°C (50°F to 95°F)

• Non-Operating Temperature: -40°C to 60°C (-40°F to 140°F)

• Operating Relative Humidity: 8% to 90% (non-condensing)
