Cisco Catalyst 4506-E
WS-C4506-E
Enterprise stock · tested · export documentation available

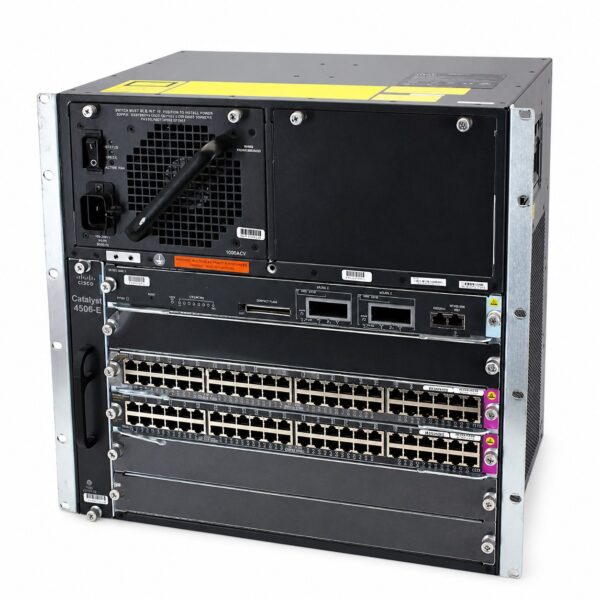

Cisco Catalyst 4506-E Switch Overview
The Cisco Catalyst 4506-E is an enterprise-class, modular switch chassis designed for scalable, high-performance campus and data center networks. Built on the Cisco Catalyst 4500 E-Series architecture, this 6-slot chassis delivers flexibility, resiliency, and future-ready performance for organizations with growing network demands.
Key Features and Specifications
| Specification | Details |
|---|---|
| Model | WS-C4506-E |
| Series | Cisco Catalyst 4500 E-Series |
| Device Type | Enterprise-class modular switch chassis |
| Enclosure Type | Rack-mountable – 10U |
| Chassis Slots | 6 slots total (1 dedicated Supervisor Engine slot + 5 line card slots) |
| Switching Capacity | Up to 928 Gbps (full chassis, depends on Supervisor Engine) |
| Forwarding Rate | Up to 250 Mpps (depends on Supervisor Engine) |
| Layer Support | Layer 2 and Layer 3 (full routing) with supported Supervisor Engines |
| Supervisor Engine Support | WS-X45-SUP7-E, WS-X45-SUP8-E, Supervisor Engine 6L-E, 6-E, V-10GE, V, IV, II-Plus-10GE, II-Plus |
| Supervisor Redundancy | Not supported in this chassis |
| Power Supply | Internal power supply (not included), hot-plug. Supports up to 2 units for 1+1 redundancy |
| Power over Ethernet (PoE) | Optional, requires PoE-capable power supply. Supports PoE and PoE+ |
| Fan Tray | Included, hot-swappable |
| Operating System | Cisco IOS XE Software |
Physical and Environmental Specifications
| Specification | Details |
|---|---|
| Dimensions (H × W × D) | 17.5 × 17.3 × 16.1 inches (44.1 × 44.0 × 31.7 cm) |
| Weight | 18.4 kg (40.6 lbs) (chassis only) |
| Rack Mounting Kit | Included |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -40°C to 75°C (-40°F to 167°F) |
| Operating Humidity | 10% to 90% (non-condensing) |
| Storage Humidity | 10% to 96% (non-condensing) |
| Operating Altitude | -60 to 3000 meters |
| MTBF | 710,119 hours |
Regulatory Standards Compliance
The Cisco Catalyst 4506-E complies with various regulatory standards, including but not limited to:
-
Emissions: FCC Part 15 Class A, EN 55022 Class A, VCCI Class A, ICES-003 Class A
-
Safety: UL 60950, IEC 60950, EN 60950, CSA 22.2 No. 60950
-
Environmental: NEBS Level 3, RoHS, WEEE
