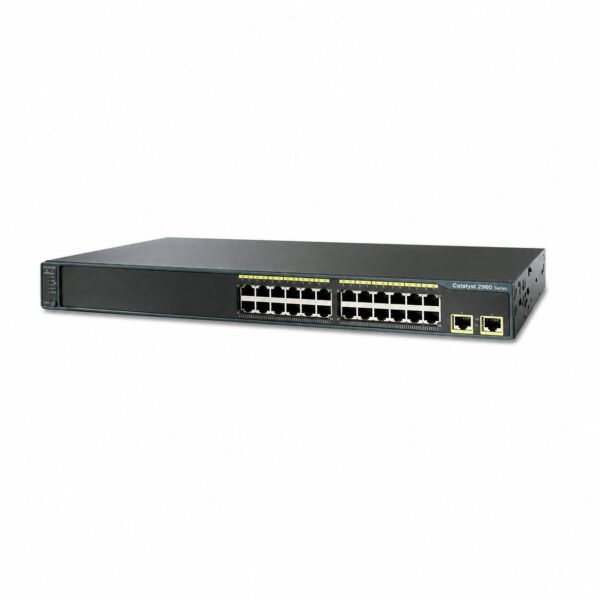

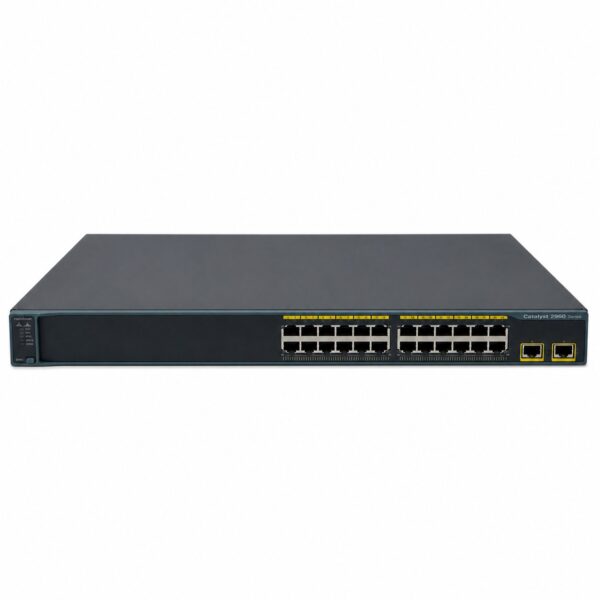

Name: Cisco Catalyst 2960-24TT - SunSpike
SKU: 2960-24TT

The Cisco Catalyst 2960-24TT is a fixed-configuration, managed Fast Ethernet switch from Cisco’s Catalyst 2960 Series. Below is a consolidated datasheet of its full English technical specifications, compiled from official Cisco documentation and related resources.

Product Overview

The Cisco Catalyst 2960 Series Intelligent Ethernet Switches are a family of fixed-configuration standalone devices that provide desktop Fast Ethernet and Gigabit Ethernet connectivity for entry-level enterprise, mid-market, and branch office networks. The 2960-24TT model specifically offers 24 Fast Ethernet ports and 2 fixed Gigabit Ethernet uplink ports.

Quick Specs

Feature	Specification
Product Family	Cisco Catalyst 2960 Series
Model	2960-24TT (Part Number: WS-C2960-24TT-L)
Device Type	Switch – 24 ports – Managed
Enclosure Type	Rack-mountable – 1U
Ports	24 x 10/100 Ethernet + 2 x 10/100/1000 Ethernet Uplink
Forwarding Performance	6.5 Mpps (64-byte packets)
Switching Bandwidth	32 Gbps
DRAM	64 MB
Flash Memory	32 MB
MAC Address Table	8K entries

Ports & Connectivity

The switch’s interfaces are clearly defined:

24 x 100Base-TX RJ-45 (10/100 Ethernet ports)
2 x 1000Base-T RJ-45 (Fixed Gigabit Ethernet uplink ports)

Performance & Capacity

Key performance metrics from Cisco documentation are listed below:

Forwarding Bandwidth: 8.8 Gbps (for the 2960-24TT model).
Maximum VLANs: 255.
Jumbo Frame Support: Up to 9018 bytes on Gigabit ports.
IPv4 IGMP Groups: 255.

Power & Physical Specifications

The physical and power details are essential for network planning:

Specification	Detail
AC Input Voltage	100 to 240 VAC (Autoranging), 50-60 Hz
Power Consumption	30W (Operational)
Dimensions (H x W x D)	1.73 x 17.5 x 9.3 in (4.4 x 44.5 x 23.6 cm)
Weight	8.0 lb (3.6 kg)
MTBF	282,416 to 407,707 hours

Environmental Ranges

The switch is designed to operate within the following environmental parameters:

Operating Temperature: 32 to 113ºF (0 to 45ºC)
Storage Temperature: –13 to 158ºF (-25 to 70ºC)
Operating Relative Humidity: 10 to 85% (noncondensing)
Operating Altitude: Up to 10,000 ft (3049 m)

Protocols & Standards

The Cisco Catalyst 2960-24TT complies with numerous IEEE standards and supports a comprehensive set of management protocols.

Compliant Standards: IEEE 802.1D, 802.1p, 802.1Q, 802.1s, 802.1w, 802.1x, 802.3, 802.3ab, 802.3ad (LACP), 802.3ah, 802.3u, 802.3x, 802.3z.
Remote Management: SNMP (v1, v2c, v3), RMON (1,2,3,9), Telnet, HTTP, HTTPS, SSH.
Authentication: RADIUS, TACACS+, SSH v2.
