Name: Supermicro GPU SuperWorkstation 7047GR-TRF - SunSpike
SKU: SYS-7047GR-TRF

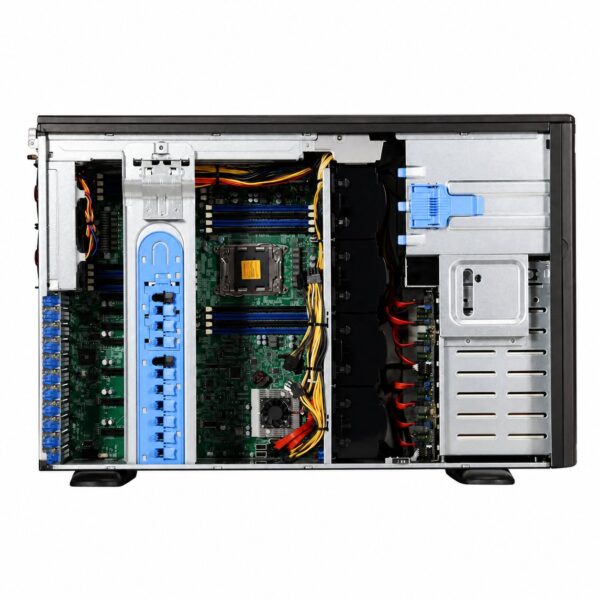

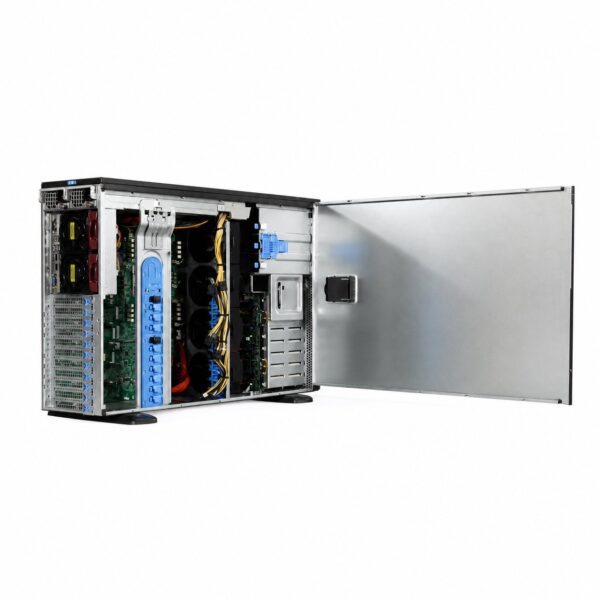

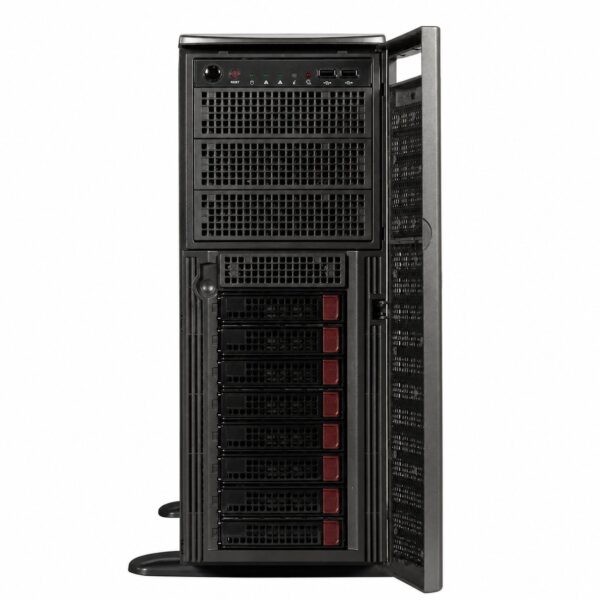

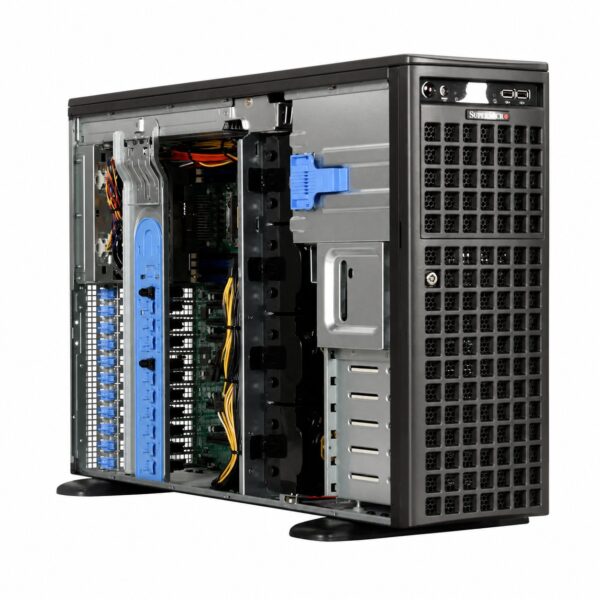

The interior features dual CPU sockets, 16 DIMM memory slots, and expansion room for up to 4 double-width GPUs, paired with 8 front hot-swappable 3.5-inch SAS/SATA drive bays and a 90-degree rotatable media bay for rack conversion.

System Specifications

Feature Category	Technical Specification
Product Model	Supermicro GPU SuperWorkstation 7047GR-TRF (Dark Gray)
Motherboard	Super X9DRG-QF
Chassis Model	CSE-747TQ-R1620B
Form Factor	4U Rackmountable / Convertible Tower
Processor / CPU	• Dual Socket R (LGA 2011) • Supports Intel® Xeon® Processor E5-2600 and E5-2600 v2 series • System Bus: QPI up to 8.0 GT/s • CPU Max TDP: Up to 150W
Chipset	Intel® C602 Chipset
System Memory	16x 240-pin DDR3 DIMM slots • Up to 1TB DDR3 ECC LRDIMM • Up to 512GB DDR3 ECC Registered memory (RDIMM) • Up to 192GB DDR3 ECC Unbuffered memory (UDIMM) • Memory Speeds: 1866 / 1600 / 1333 / 1066 / 800 MHz
Expansion Slots	• 4x PCI-E 3.0 x16 (Double-width, supports up to 4 GPU co-processor cards) • 2x PCI-E 3.0 x8 (1 in x16 slot) • 1x PCI-E 2.0 x4 (in x8 slot)
Storage Bays	• 8x Hot-swap 3.5″ SAS/SATA Drive Trays • 3x 5.25″ Peripheral Bays (rotates 90° for rack mounting) • 1x Fixed 3.5″ internal drive bay
On-Board Controller	• SATA 3.0 (6Gbps): 2 ports with RAID 0, 1 • SATA 2.0 (3Gbps): 8 ports with RAID 0, 1, 5, 10
Networking	• Dual Port GbE: Intel® i350 Dual-Port Gigabit Ethernet (2x RJ45) • Dedicated IPMI: 1x Realtek RTL8201N PHY
Server Management	Support for Intelligent Platform Management Interface v2.0 (IPMI 2.0) with Virtual Media over LAN and KVM-over-LAN via Renesas SH7757 BMC
Graphics	Integrated Matrox G200eW (via Renesas SH7757 BMC)
Input / Output Ports	• 2x RJ45 Gigabit Ethernet LAN ports • 1x Dedicated RJ45 IPMI LAN port • 9x USB 2.0 ports (4 rear, 4 header, 1 Type-A internal) • 1x VGA output • 1x Fast UART 16550 Serial Port / Header
Power Supply	1620W Redundant Power Supplies with PMBus • 80 PLUS Platinum Level Certified (94% Efficiency) • Input Voltage: 100 – 240V AC
System Cooling	• Middle: 4x 92x38mm 4-pin PWM cooling fans • Rear: 2x 80x38mm 4-pin PWM exhaust fans
Dimensions & Weight	• Dimensions (H x W x D): 18.2″ x 7.0″ x 26.5″ (462 mm x 178 mm x 673 mm) • Gross Weight: ~62 lbs (28.1 kg)
