Name: Supermicro SuperServer SYS-222B-TR - SunSpike
SKU: SYS-222B-TR

Product Overview

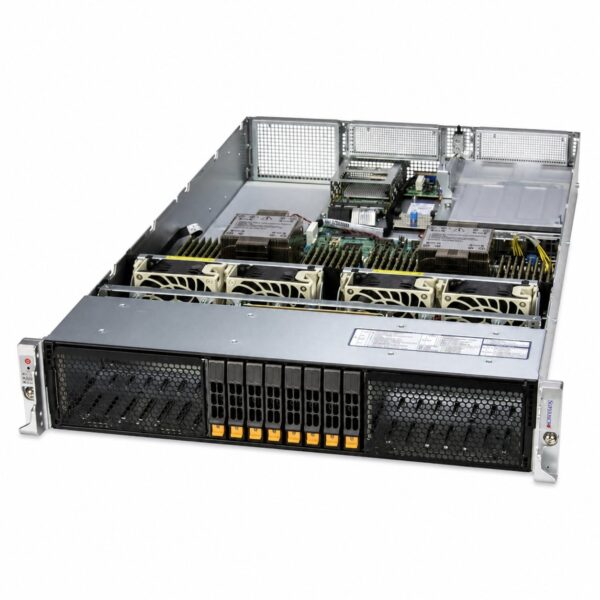

The Supermicro SuperServer SYS-222B-TR is an enterprise-grade 2U rackmount server designed for high-density compute, virtualization, cloud infrastructure, enterprise storage, and data-intensive applications. Built on Supermicro’s X14 architecture supporting Intel Xeon 6 processors, the platform delivers exceptional memory bandwidth, PCIe Gen 5 expansion capacity, flexible storage configurations, and redundant high-efficiency power supplies.

Key Highlights

High-Density Compute: Supports Intel Xeon 6 processors with high core counts and integrated vector/AI accelerators.
Next-Gen Memory Bandwidth: DDR5 memory support up to 6400 MT/s for demanding multi-threaded workloads.
PCIe 5.0 & Flexible I/O: High-speed PCIe 5.0 expansion slots alongside AIOM / OCP 3.0 networking mezzanine options.
Hot-Swappable Storage: Front-accessible hot-swap drive bays supporting NVMe, SAS, and SATA, plus onboard M.2 NVMe slots for OS boot.
Enterprise Reliability: Redundant Titanium-level power supplies (TR = Redundant Power) and hot-swappable cooling fans.
Out-of-Band Management: Integrated IPMI 2.0 with AST2600 BMC controller, HTML5 virtual media, and Redfish API integration.

Technical Specifications

Specification	Details
System Form Factor	2U Rackmount
Processor Architecture	Intel Xeon 6 Processors (Single / Dual Socket options depending on SKU sub-variant)
System Chipset	Intel System on Chip (SoC) / Intel C741 Chipset family

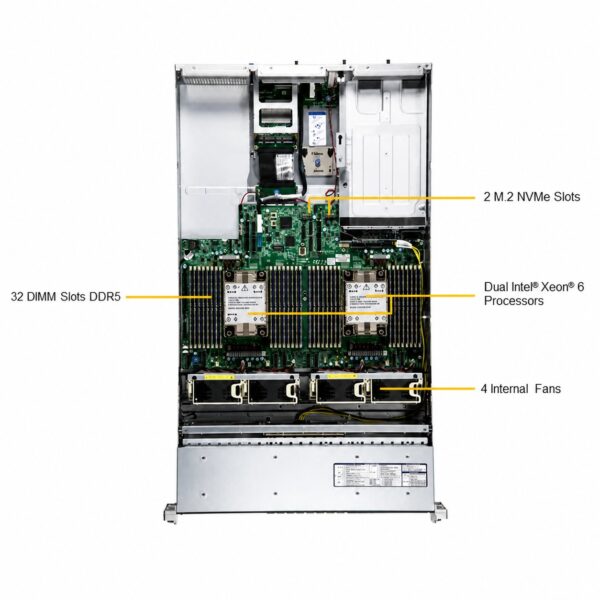

Memory Capacity	Multi-channel DDR5 DIMM slots (supports ECC Registered RDIMM/3DS RDIMM, up to 6400 MT/s)

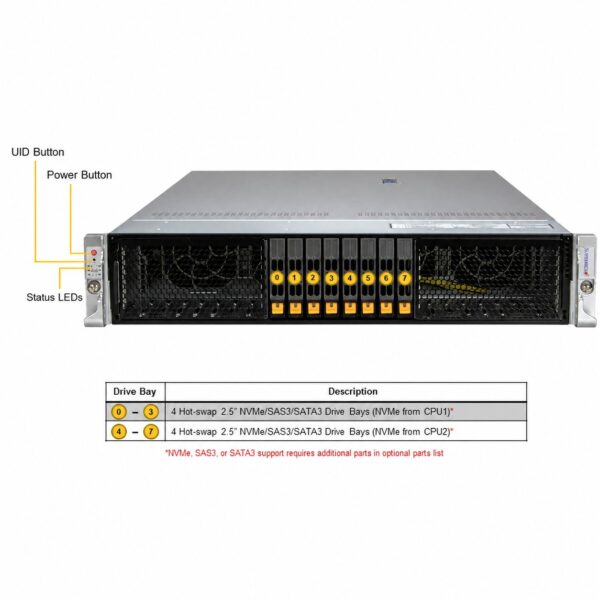

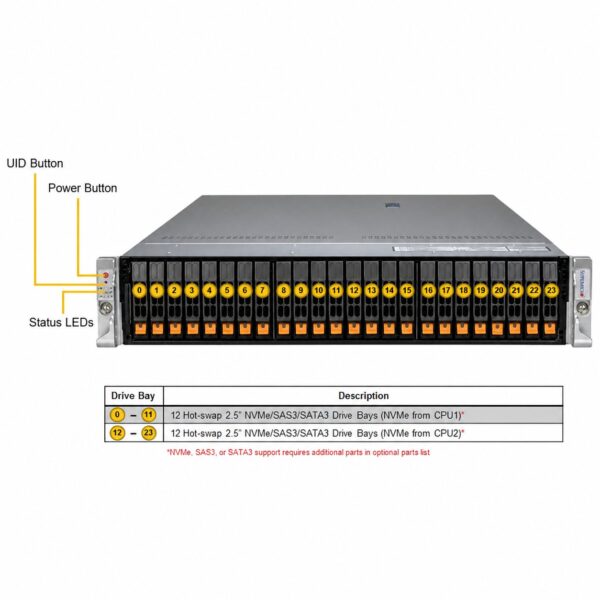

Drive Bays	Hot-swap 2.5″ / 3.5″ NVMe / SAS / SATA drive bays (Backplane configuration options available)
Boot Drive	2x M.2 NVMe (PCIe 4.0/5.0 x4) onboard for OS mirror/boot

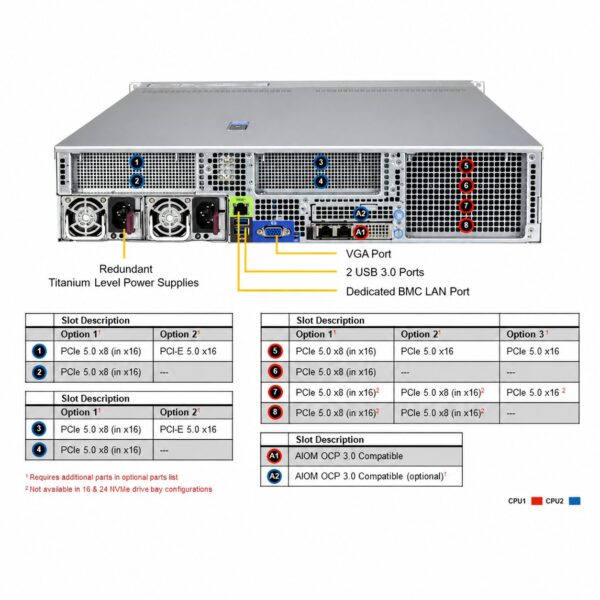

PCIe Expansion Slots	Multiple PCIe 5.0 x16 / x8 expansion slots (Full-Height / Low-Profile)
Network Interfaces	AIOM / OCP 3.0 Mezzanine Card Slot (supporting 1GbE, 10GbE, 25GbE, or 100GbE options)
System Management	Dedicated 1GbE RJ45 Management Port, ASPEED AST2600 BMC, IPMI 2.0, Redfish, KVM over IP
Graphics	ASPEED AST2600 Integrated Graphics (1x VGA Port)
I/O Ports	Front/Rear USB 3.0 ports, 1x VGA, 1x Dedicated IPMI LAN, Serial Port Header
Cooling System	4x to 6x Hot-swap heavy-duty PWM cooling fans with optimal fan speed control
Power Supply	Redundant Titanium-Level (96% Efficiency) 1200W / 1600W / 2000W AC Power Supplies
Security Features	Trusted Platform Module (TPM 2.0) Header, Silicon Root of Trust (RoT), Chassis Intrusion Switch
Operating Temperature	10°C to 35°C (50°F to 95°F) standard operating environment
