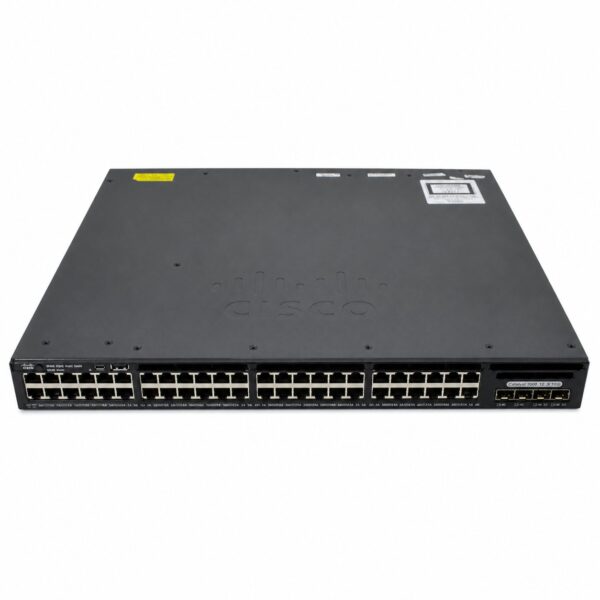

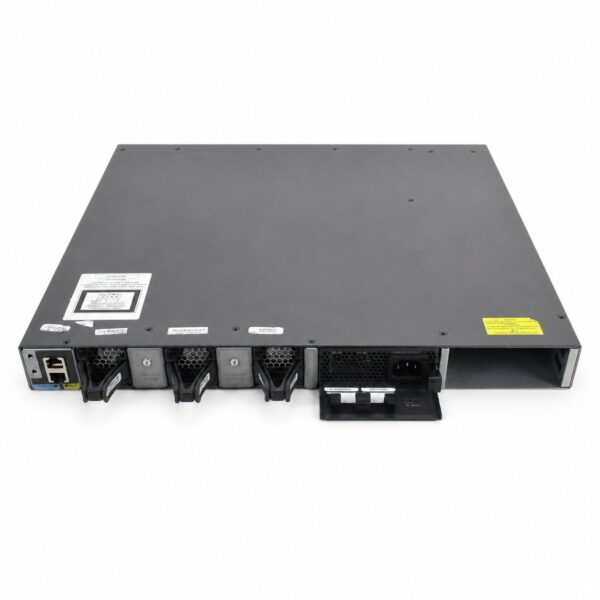

Name: Cisco Catalyst 3650-48TD - SunSpike
SKU: WS-C3650-48TD

Cisco Catalyst 3650-48TD Series Switch Datasheet

Product Overview
The Cisco Catalyst 3650-48TD is an enterprise-class, stackable access layer switch that delivers converged wired and wireless access on a single platform. It is built on the Cisco Unified Access Data Plane (UADP) ASIC and supports Cisco StackWise-160 technology .

Key Specifications

Category	Specification
Model Variants	WS-C3650-48TD-S (IP Base Software), WS-C3650-48TD-L (LAN Base Software), WS-C3650-48TD-E (IP Services Software)
Device Type	Switch – 48 ports – L3 – managed – stackable
Enclosure Type	Desktop, rack-mountable – 1U
Ports	48 x 10/100/1000 Ethernet downlink ports + 2 x 10 Gigabit SFP+ uplink ports
Performance	Switching capacity: 176 Gbps
	Forwarding performance: 130.95 Mpps
Capacity	IPv4 routes: 24000
	MAC address table size: 32000 entries
	Jumbo Frame Support: 9198 bytes
	VLAN IDs: 4000
	Switched Virtual Interfaces (SVIs): 1000
Memory	DRAM: 4 GB
	Flash: 2 GB
Software	-S model: Cisco IOS IP Base
	-L model: Cisco IOS LAN Base
	-E model: Cisco IOS IP Services
Power	Internal power supply, 250W AC 120/230 V (50/60 Hz), hot-plug
	Power Redundancy: Optional (1+1)
Dimensions & Weight	Width: 17.5 in / 44.5 cm	Depth: 17.6 in / 44.8 cm	Height: 1.7 in / 4.4 cm
	Weight: 15.9 lbs / 7.21 kg
Warranty	Limited lifetime warranty
MTBF	527,580 hours

Features & Capabilities

Layer 2 & 3 Switching: Supports advanced features including VLANs, trunking, Rapid Spanning Tree Protocol (RSTP), Multiple Spanning Tree Protocol (MSTP), and static IP routing . The “-S” model also supports dynamic routing protocols like OSPF and RIP .
High Availability: Stackable with Cisco StackWise-160 technology, offering up to 160 Gbps of stack bandwidth .
Security & QoS: Provides Access Control Lists (ACL), DHCP snooping, Dynamic ARP Inspection (DAI), and RADIUS/TACACS+ authentication .
Management: Supports remote management via SNMP, RMON, Telnet, SSH, and a Command-Line Interface (CLI) .
Compliant Standards: Meets a wide range of IEEE standards including 802.3, 802.1Q, 802.3af (PoE), and 802.3at (PoE+) .
