Name: Supermicro SuperServer SYS-620P-TR - SunSpike
SKU: SYS-620P-TR

Supermicro SuperServer SYS-620P-TR

Dual 3rd Gen Intel Xeon Scalable Processors (Ice Lake) support up to 270W TDP.
18 DIMM Slots offering high-density DDR4 memory support and Intel Optane Persistent Memory 200 Series.
PCIe 4.0 Support for flexible high-bandwidth expansion options.
Redundant Power Supplies (1200W Titanium Level, 1+1 setup) for continuous uptime.
Ideal Workloads: Enterprise Server, Virtualization, Cloud Computing, Database Applications, Data Center Infrastructure.

Feature	Specification Details
System Model	Supermicro SuperServer SYS-620P-TR

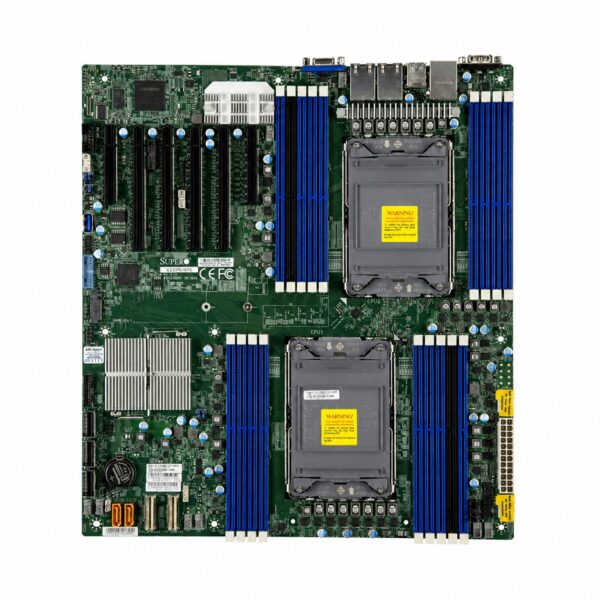

Motherboard	Super X12DPi-NT6
Form Factor	2U Rackmount
Dimensions	Height: 3.5″ (89 mm) \| Width: 17.2″ (437 mm) \| Depth: 25.5″ (648 mm)
Processor Support	Dual Socket P+ (LGA-4189) Supports 3rd Gen Intel Xeon Scalable Processors Up to 40 Cores / 80 Threads per socket, TDP up to 270W
Memory Capacity	18 DIMM slots Up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM Supports Intel Optane Persistent Memory 200 Series

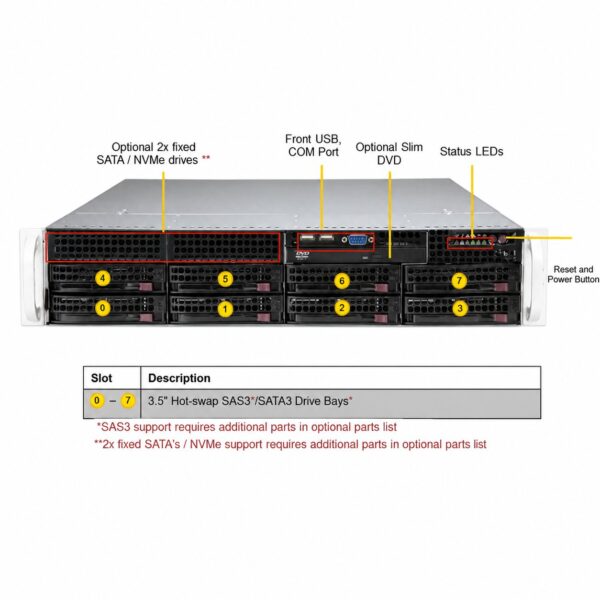

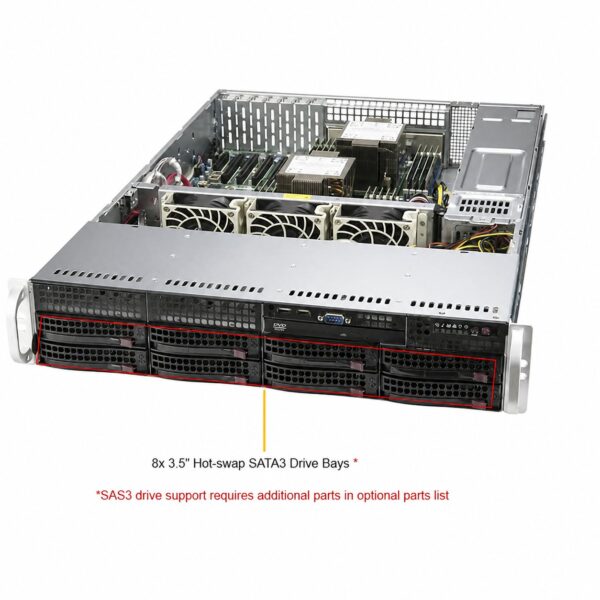

Drive Bays	8 x 3.5″ Hot-swap SATA3 drive bays (SAS3 supported via optional add-on card controller)
Expansion Slots	4 x PCIe 4.0 x16 Full-Height, Full-Length (FHFL) 2 x PCIe 4.0 x8 Full-Height, Half-Length (FHHL)
Onboard Networking	Dual 10GbE RJ45 LAN ports via Intel X550 controller
System Management	Support for IPMI 2.0, KVM-over-IP, Redfish API, SSM, SPM, SUM, Supermicro Out-of-Band (OOB)

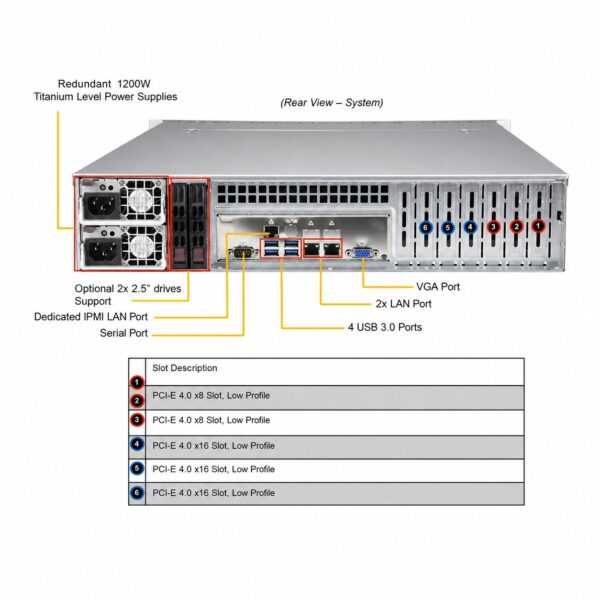

Input / Output (I/O)	2 x 10GbE RJ45 Ports 1 x Dedicated IPMI LAN Port 4 x USB 3.0 Ports (2 Rear, 2 Front) 1 x VGA Port 1 x COM Port (Rear)
Cooling System	3 x 8cm Heavy-duty hot-swap PWM fans
Power Supply	Dual 1200W Redundant Titanium Level (96% Efficiency) Power Supplies (1+1)
System BIOS	256Mb SPI Flash EEPROM with AMI BIOS
