Huawei S1720-52GFR-4P-AC – Product Documentation

Name: Huawei S1720-52GFR-4P-AC Switch - SunSpike
SKU: S1720-52GFR-4P-AC

Product Overview

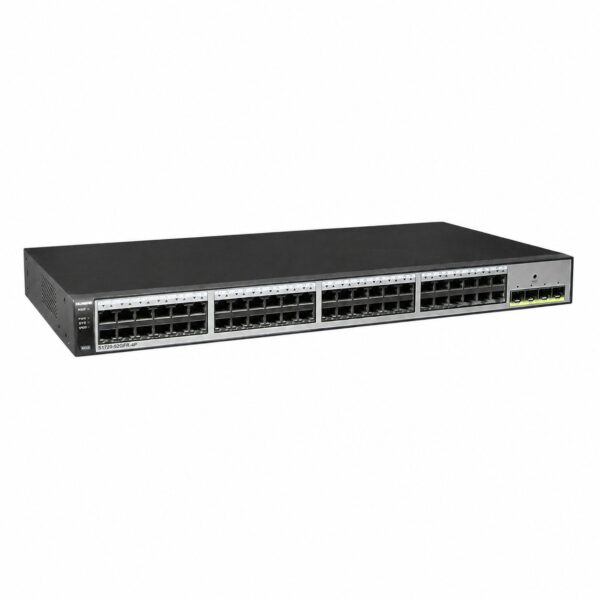

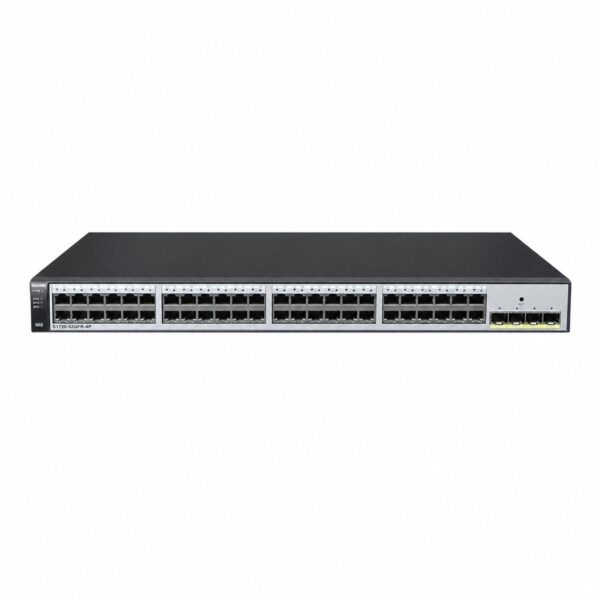

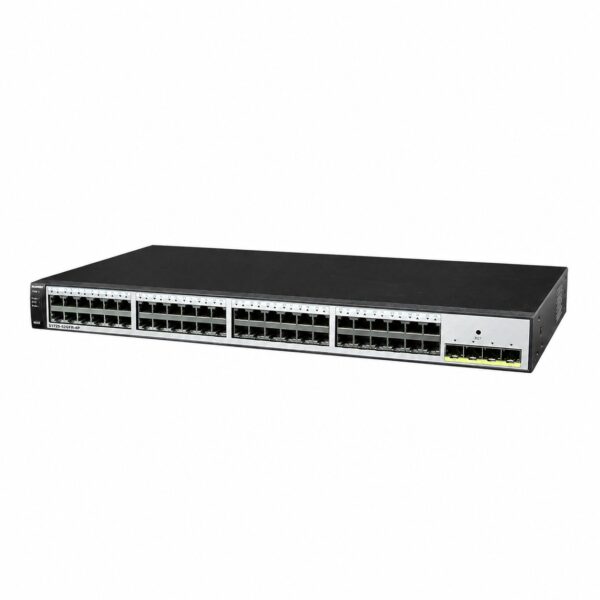

The Huawei S1720-52GFR-4P-AC is a 52-port managed Gigabit Ethernet switch from the S1700 series, designed for deployment at the access layer of enterprise networks. It is a new-generation energy-saving enterprise switch featuring 48 × 10/100/1000BASE-T ports and 4 × 1000BASE-X Ethernet SFP ports.

The switch provides easy installation and maintenance methods along with rich service features to help users build secure, reliable, and high-performance networks. It delivers cost-effective packet switching capability, multi-service access capabilities, excellent extensibility, Quality of Service (QoS) guarantee, powerful multicast replication, and carrier-class security. The S1700 series can be used to build ring topologies of high reliability and is applicable to various scenarios including GE access to enterprise networks, GE-to-desktop deployments, and building future-oriented IT networks for enterprises.

The S1720-52GFR-4P-AC supports intelligent upgrade features – switches can obtain version upgrade paths and download the newest versions from the Huawei Online Upgrade Platform (HOUP), with the entire upgrade process being highly automated and achieving one-click upgrade. This greatly simplifies device upgrade operations and reduces maintenance costs.

The switch features a built-in power module (non-pluggable) and a built-in fan for forced air cooling with a left-to-right airflow direction. It is ideal for small to medium-sized businesses, Internet cafes, hotels, schools, and similar Ethernet access scenarios.

Technical Specifications

Item	Specification
Model	S1720-52GFR-4P-AC
Part Number	98010850
Downlink Ports	48 × 10/100/1000BASE-T
Uplink Ports	4 × GE SFP (1000BASE-X Ethernet ports)
Memory (RAM)	512 MB
Flash Memory	512 MB total, 240 MB available for customers
MAC Address Table	16K MAC
Stack Ports	Not supported
RTC	Not supported
RPS	Not supported
PoE	Not supported
Rated Voltage Range	100 V AC to 240 V AC, 50/60 Hz
Maximum Voltage Range	90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum Power Consumption (100% throughput, full fan speed)	47.3 W
Typical Power Consumption (30% traffic load)	29.9 W
EEE (Energy Efficient Ethernet)	Supported
Operating Temperature	0°C to 45°C (32°F to 113°F) at 0–1800 m altitude
Short-term Operating Temperature	-5°C to +55°C (23°F to 131°F) at 0–1800 m altitude
Storage Temperature	-40°C to +70°C (-40°F to +158°F)
Relative Humidity (non-condensing)	5% to 95%
Noise at Normal Temperature (27°C, sound power)	< 44.5 dB(A)
Heat Dissipation	Built-in fan with intelligent speed adjustment, left-to-right airflow
Dimensions (W × D × H)	442 mm × 310 mm × 43.6 mm
Basic Dimensions (H × W × D)	43.6 mm × 442.0 mm × 224.8 mm (1.72 in. × 17.40 in. × 8.85 in.)
Maximum Dimensions (depth from front panel ports to rear protrusions)	43.6 mm × 442.0 mm × 233.8 mm (1.72 in. × 17.40 in. × 9.20 in.)
Weight (including packaging)	4.4 kg (9.7 lb)
