Huawei S5700-28C-HI – Product Documentation

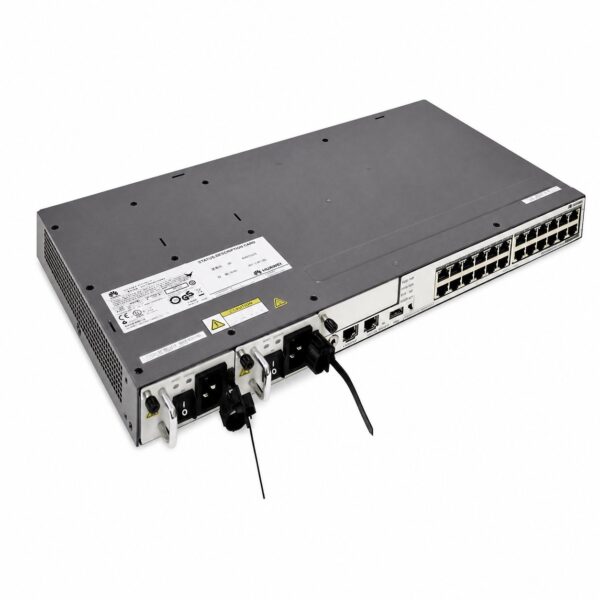

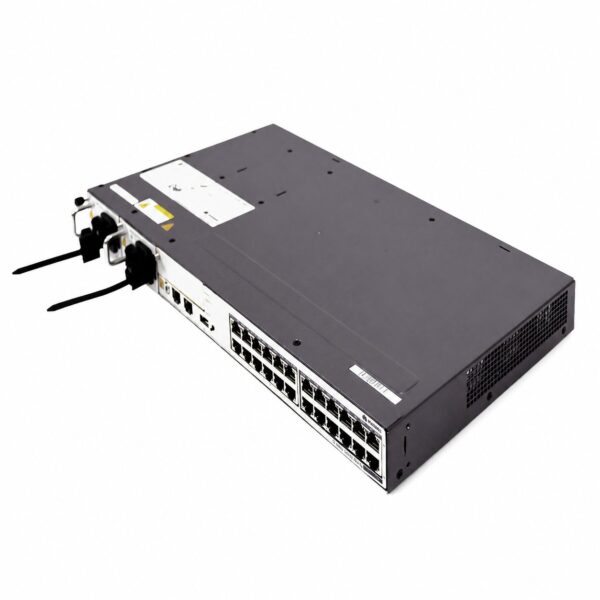

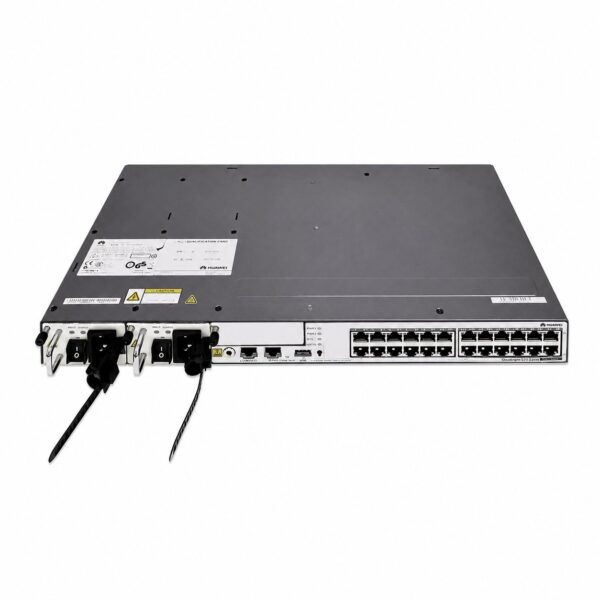

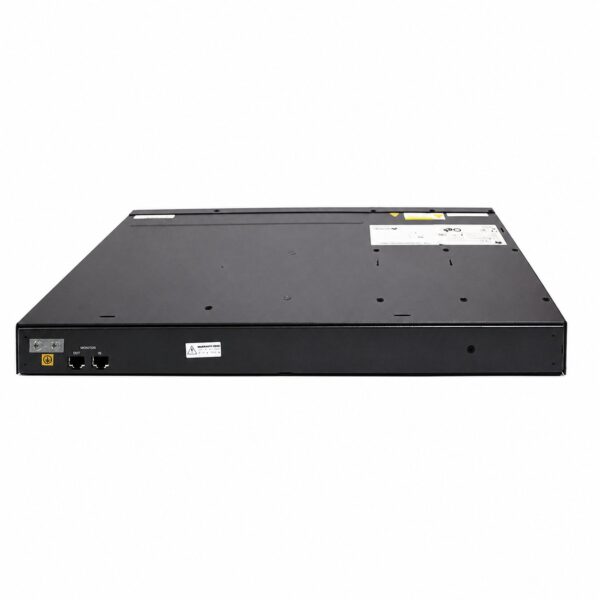

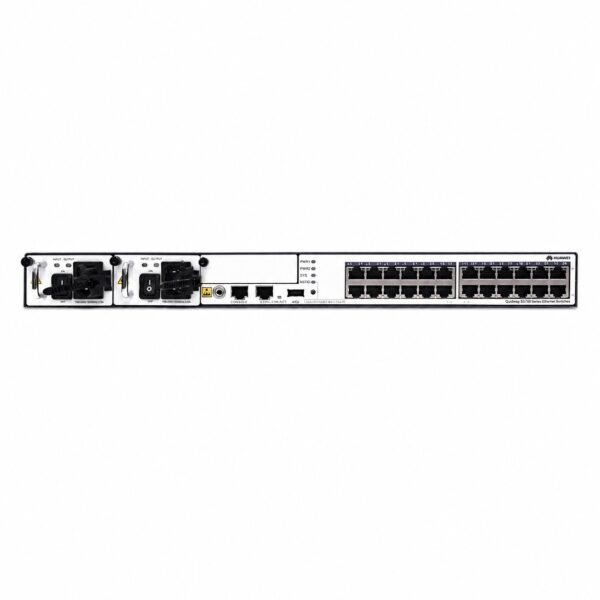

Name: Huawei S5700-28C-HI Switch - SunSpike
SKU: S5700-28C-HI

Product Overview

The Huawei S5700-28C-HI is an enterprise-class Layer 3 full-Gigabit Ethernet switch designed primarily for small to medium-sized enterprise network access and aggregation scenarios. It belongs to the S5700-HI (High-end Intelligent) series, which represents the advanced tier of Huawei’s S5700 family of Gigabit Ethernet switches.

Built on Huawei’s next-generation high-performance hardware architecture and powered by the Versatile Routing Platform (VRP) — Huawei’s unified software platform — the S5700-28C-HI delivers outstanding switching capacity, high-density GE access, and flexible uplink options. The switch integrates advanced technologies in reliability, security, and energy efficiency, helping enterprise customers build next-generation IT networks.

Key capabilities include:

Rich VPN and MPLS support – The switch supports Multi-VPN-Instance CE (MCE) functionality, enabling isolation between different VPN users on the same device to address data security concerns while reducing investment costs. It also supports MPLS and VLL (Virtual Leased Line) functions, serving as a high-quality enterprise dedicated line access device — one of the few cost-effective box-type MPLS switches in the industry.
Carrier-grade reliability – Beyond traditional STP/RSTP/MSTP spanning tree protocols, the S5700-28C-HI supports SmartLink and RRPP (Rapid Ring Protection Protocol) for millisecond-level link protection and fast failover. It also features SEP (Smart Ethernet Protection), a dedicated Ethernet link-layer ring protocol that provides 50ms service switchover performance, and supports E-Trunk for cross-device link aggregation.
Comprehensive security – The switch supports centralized MAC address authentication and 802.1x authentication, with dynamic or static binding of user credentials including account, IP, MAC, VLAN, port, and client security posture, enabling dynamic policy enforcement (VLAN, QoS, ACL).
IPv6 readiness – With hardware-supported IPv4/IPv6 dual stack and IPv6 over IPv4 tunnels (including manual Tunnel, 6to4 Tunnel, and ISATAP Tunnel), the switch enables line-speed Layer 3 forwarding in pure IPv4, pure IPv6, or co-existing network environments, facilitating smooth network transition from IPv4 to IPv6.
Advanced traffic management – The switch supports complex traffic classification based on quintuple, IP priority, ToS, DSCP, IP protocol type, ICMP type, TCP source port, VLAN, Ethernet frame protocol type, and CoS, along with dual-rate three-color traffic policing per flow.
Intelligent network management – Management capabilities include Smart Stacking, MFF (MAC Forced Forwarding), Virtual Cable Test, port mirroring and RSPAN, Telnet remote configuration, SNMPv1/v2/v3, RMON, eSight network management system, web-based management, auto-configuration, HGMP cluster management, HTTPS, system logging, and hierarchical alarming.

The S5700-28C-HI is ideally suited as an access switch in large and medium-sized campus networks or data centers, and as an aggregation switch in small campus networks.

Technical Specifications

Parameter	S5700-28C-HI	S5700-28C-HI-24S
Product Type	Full-Gigabit enterprise switch	Full-Gigabit enterprise switch
Application Layer	Layer 3	Layer 3
Target Market	Small to medium-sized enterprises	Small to medium-sized enterprises
Part Number	02353630	02353631
Fixed Ports	24 × 10/100/1000Base-T	24 × 100/1000Base-X
Uplink Options	4 × 1000Base-X SFP, 2 × 10GE SFP+, 4 × 10GE SFP+ subcards	4 × 1000Base-X SFP, 2 × 10GE SFP+, 4 × 10GE SFP+ subcards
Expansion Slots	1 extended slot	1 extended slot
Module Slots	4	4
Switching Capacity	256 Gbit/s	256 Gbit/s
Forwarding Performance	96 Mpps	96 Mpps
Switching Mode	Store-and-forward	Store-and-forward
MAC Address Table Size	32K	32K
Memory (RAM)	512 MB	512 MB
Flash Memory	64 MB	64 MB
Supported Subcards	4 × 1000Base-X SFP, 2 × 10GE SFP+, 4 × 10GE SFP+	4 × 1000Base-X SFP, 2 × 10GE SFP+, 4 × 10GE SFP+
Power Supply	Dual hot-swappable AC/DC power supplies	Dual hot-swappable AC/DC power supplies
AC Voltage (Rated)	100V – 240V, 50/60 Hz	100V – 240V, 50/60 Hz
AC Voltage (Max)	90V – 264V, 50/60 Hz	90V – 264V, 50/60 Hz
DC Voltage (Rated)	–48V to –60V	–48V to –60V
DC Voltage (Max)	–36V to –72V	–36V to –72V
Maximum Power Consumption	< 76 W (operational)	< 80 W (operational)
PoE Support	Not supported	Not supported
Dimensions (W × D × H)	442 × 220 × 43.6 mm	442 × 220 × 43.6 mm
Weight (Empty)	≤ 5 kg	≤ 5 kg
Weight (Fully Configured)	≤ 6.5 kg	≤ 6.5 kg
Package Weight	11.2 kg	4.2 kg
Operating Temperature	0°C to 50°C	0°C to 50°C
Storage Temperature	–5°C to 55°C	–5°C to 55°C
Operating Humidity	10% – 90% (non-condensing)	10% – 90% (non-condensing)
Storage Humidity	10% – 90% (non-condensing)	10% – 90% (non-condensing)
Stacking Support	Yes	Yes
Management Interfaces	Console port, ETH management port, USB port	Console port, ETH management port, USB port
