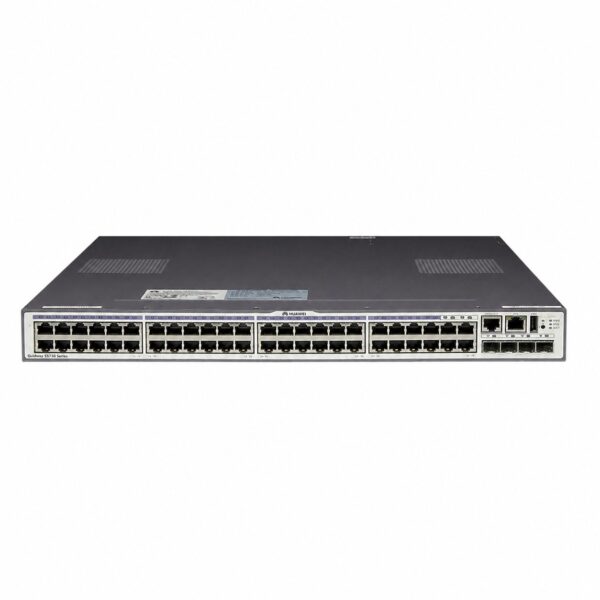

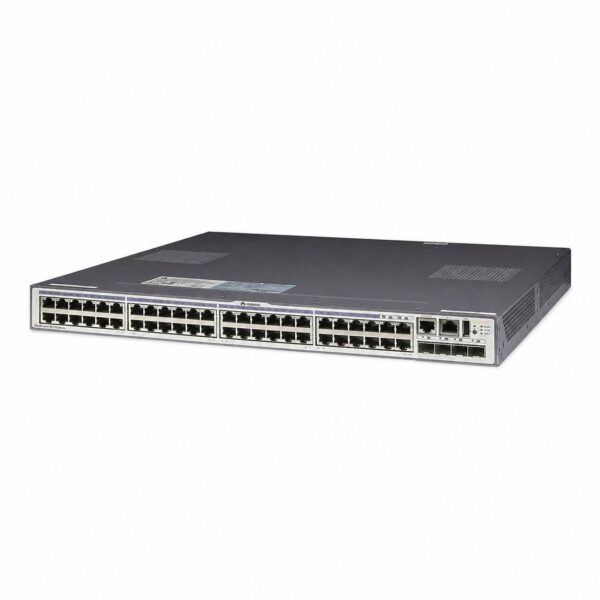

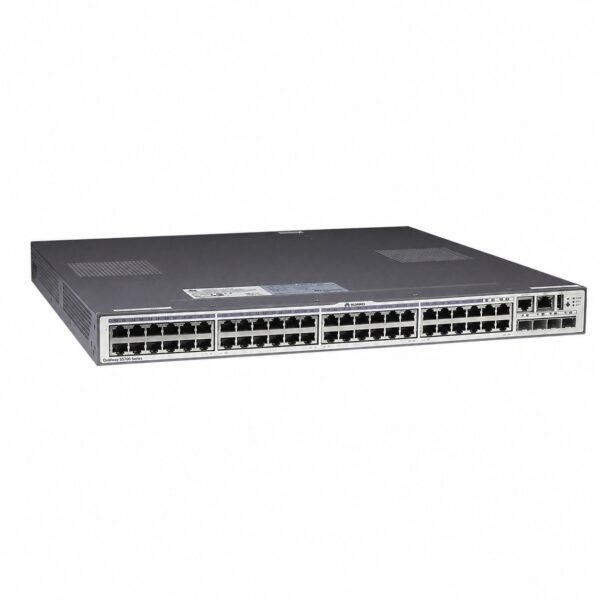

Huawei S5700-48TP-SI-AC – Product Information

Name: Huawei S5700-48TP-SI-AC Switch - SunSpike
SKU: S5700-48TP-SI-AC

Product Overview

The Huawei S5700-48TP-SI-AC is a high-performance, fixed-configuration Gigabit Ethernet Layer 3 switch designed for enterprise campus networks, data center access, and high-density Gigabit-to-the-desktop deployments.

Built on Huawei’s Versatile Routing Platform (VRP) software and high-performance hardware chips, this switch delivers large-capacity, high-density Gigabit ports with flexible uplink options. It features 48 Gigabit Ethernet ports with 10/100/1000BASE-T connectivity plus 4 GE SFP combo ports, enabling flexible fiber or copper uplink configurations.

The S5700-48TP-SI-AC provides advanced Layer 2 and Layer 3 switching capabilities, comprehensive security features including ACLs and port security, and energy-efficient design. It supports stacking for simplified management and scalability, and can be managed through Huawei’s eSight platform for streamlined network operations.

With its high port density, reliable performance for business-critical applications, and future-proof scalability through SFP combo ports, this switch is ideal for organizations seeking robust, feature-rich networking infrastructure with an excellent price-to-performance ratio. It is well-suited for campus network access/aggregation layers, IDC Gigabit access, and various enterprise connectivity scenarios.

Technical Specifications

Category	Specification
General
Model	S5700-48TP-SI-AC
Product Type	Gigabit Ethernet Switch
Application Layer	Layer 3
Switching Mode	Store-and-Forward

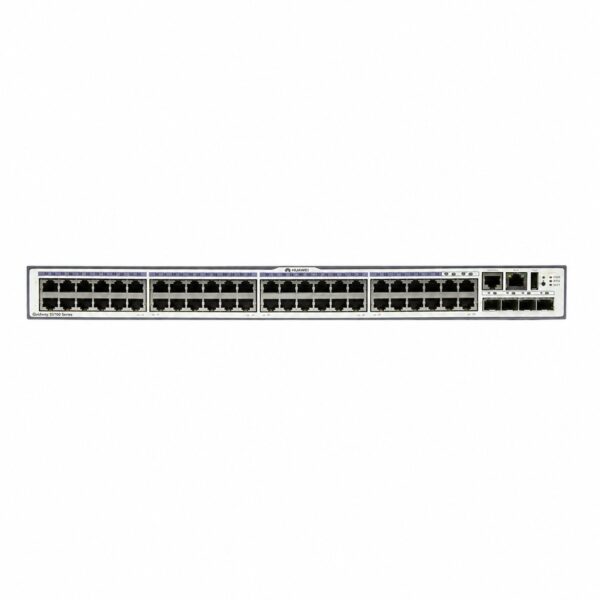

Ports & Interfaces
Total Ports	52
Fixed Ports	44 × 10/100/1000BASE-T ports
Combo Ports	4 × combo ports (10/100/1000BASE-T + 100/1000BASE-X)
Console Port	1 × console port
Management Port	1 × ETH management port
USB Port	1 × USB port
Expansion Slot	1 × stack expansion slot
Stack Ports	Two stack ports available on each stack card
Performance
Backplane Bandwidth	256 Gbps
Packet Forwarding Rate	72 Mpps
MAC Address Table	16K

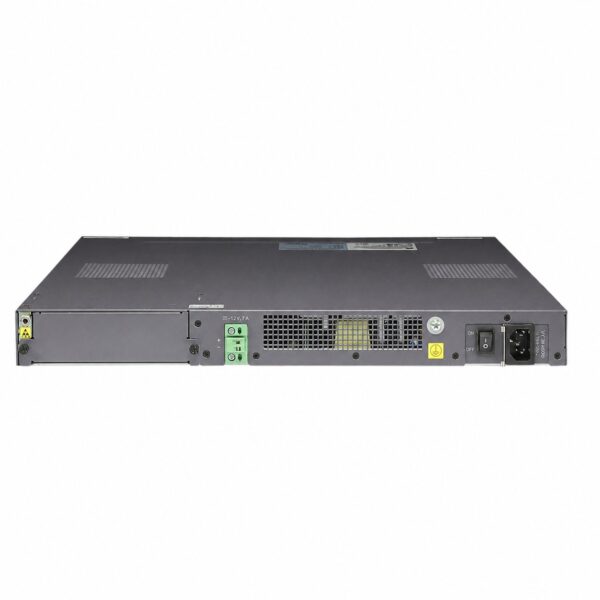

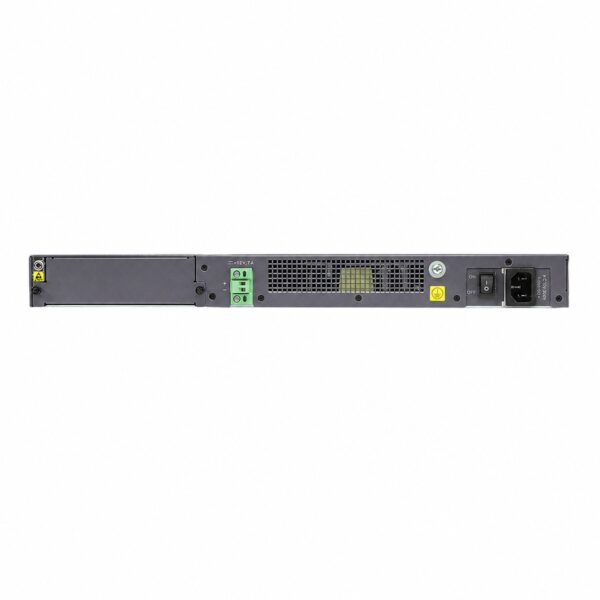

Power
Power Supply	Fixed AC power
Rated Voltage Range	100 V AC to 240 V AC, 50/60 Hz
Maximum Voltage Range	90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum Power Consumption	< 74W
Backup Power Socket	Yes (12V DC, 100W minimum)
RPS Support	Not supported
Physical
Dimensions (W × D × H)	442.0 × 420.0 × 43.6 mm (17.4″ × 16.5″ × 1.72″)
Weight	< 1.4 kg
Flash Memory	32 MB
Memory	256 MB
Environmental
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-5°C to 55°C
Operating Humidity	5% to 95%, non-condensing
Storage Humidity	10% to 90%
Operating Altitude	0 to 5000 m (0 to 16404 ft.)
Power Supply Surge Protection	6 kV differential mode, 6 kV common mode
Network Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1d, IEEE 802.1X
VLAN	Supports 4K VLANs; Guest VLAN, Voice VLAN; MAC/IP/subnet/policy/port-based VLAN; 1:1 and N:1 VLAN switching
QoS	Port-based rate limiting; packet redirection; traffic policing; dual-rate three-color CAR; 8 queues per port; WRR, DRR, SP, WRR+SP, DRR+SP queue scheduling; 802.1p and DSCP priority re-marking; L2–L4 packet filtering
Security	User分级 management and password protection; DoS/ARP/ICMP attack prevention; IP-MAC-port-VLAN binding; port isolation; port security; Sticky MAC;黑洞 MAC address; MAC address learning limit; IEEE 802.1X authentication; AAA authentication (Radius, TACACS+, NAC); SSH V2.0; HTTPS; CPU protection; blacklist/whitelist
Network Management	Stacking support; MFF; Virtual Cable Test; port mirroring and RSPAN; Telnet; SNMPv1/v2/v3; RMON; Web-based management; cluster management (HGMP); system logs; hierarchical alarms; GVRP; MUX VLAN
Multicast	IGMP v1/v2/v3 snooping; fast leave; VLAN multicast forwarding; multicast multi-VLAN replication; multicast load balancing across bundled ports; controllable multicast; port-based multicast traffic statistics
Stacking	Supported
