Huawei S2700-26TP-SI-AC – Product Documentation

Name: Huawei S2700-26TP-SI-AC Switch - SunSpike
SKU: S2700-26TP-SI-AC

Product Overview

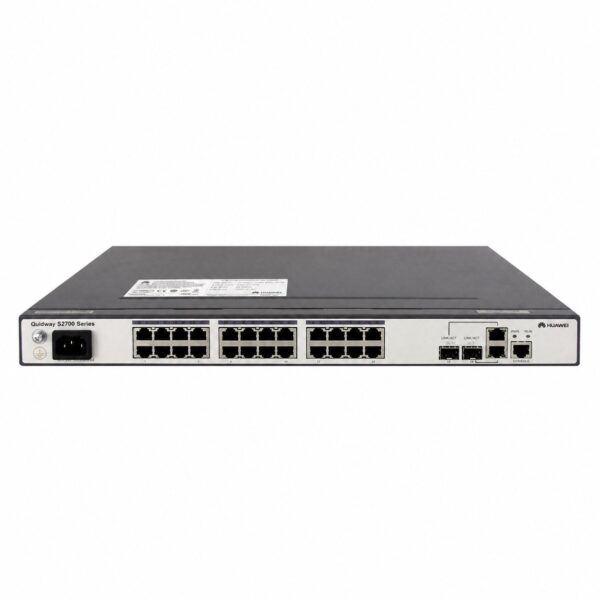

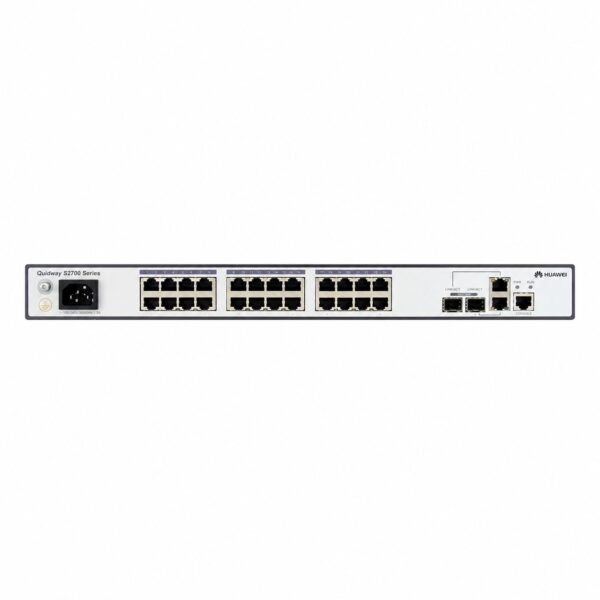

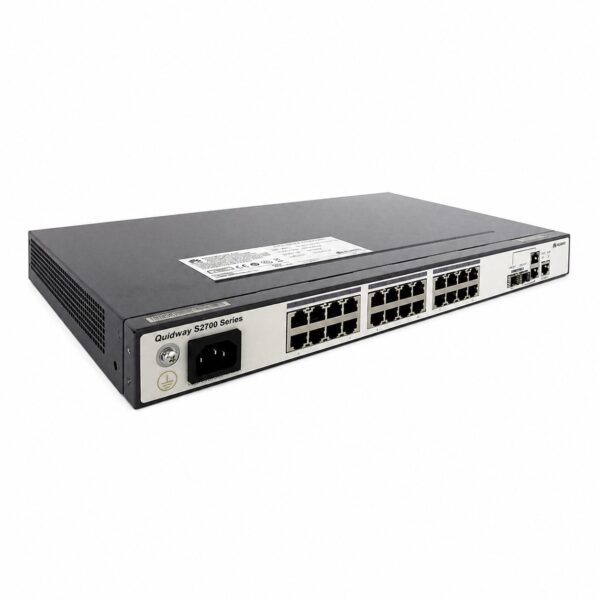

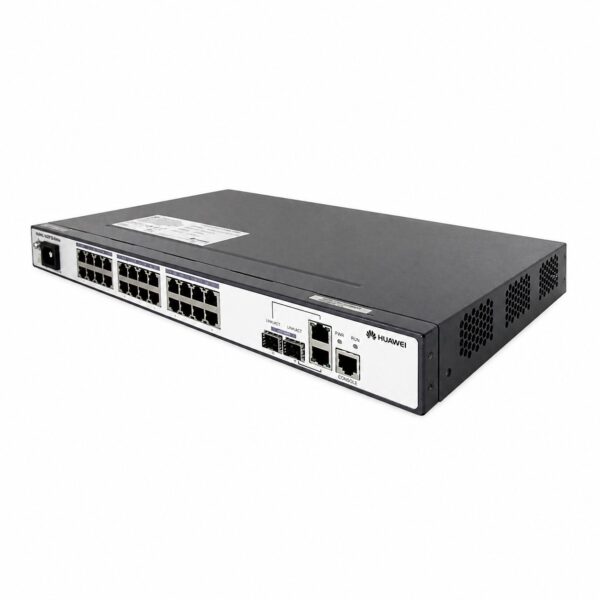

The Huawei S2700-26TP-SI-AC is a Layer 2 intelligent Ethernet access switch designed for enterprise network access layers. Housed in a 1U rack-mountable dark gray chassis, this switch delivers reliable 10/100 Mbps connectivity for desktop users while providing Gigabit uplink capabilities.

The switch features 24 Ethernet 10/100 ports and 2 dual-purpose 10/100/1000 or SFP ports (Combo ports), offering flexible connectivity options for both copper and fiber uplinks. With a switching capacity of 32 Gbps and a forwarding performance of 6.6 Mpps, it is well-suited for small to medium-sized enterprise networks requiring stable and efficient data forwarding.

Built on Huawei’s VRP (Versatile Routing Platform) software, the S2700-26TP-SI-AC supports comprehensive VLAN features with up to 4K VLANs, robust QoS mechanisms, and multiple network management options including CLI, Telnet, SNMP, and web-based management. The switch also incorporates advanced security features such as 802.1x authentication, DHCP Snooping, and IP Source Guard to protect against various network threats.

Designed with energy efficiency in mind, the S2700-26TP-SI-AC supports idle port power-saving technology and consumes less than 15.5W of power under typical operation. It also features built-in 6KV port lightning protection, ensuring reliable operation in diverse deployment environments. The switch supports intelligent stacking (iStack) for unified management of multiple devices.

Product Specifications

Category	Specification
General
Product Model	S2700-26TP-SI-AC
Product Type	Intelligent Ethernet Switch / Layer 2 Switch
Application Layer	Layer 2
Transmission Rate	10/100 Mbps
Switching Capacity	32 Gbps
Forwarding Performance	6.6 Mpps
MAC Address Table	8K
Switching Mode	Store-and-Forward
Ports
Port Structure	Non-modular
Total Ports	26 ports
Fixed Ports	24 × 10/100Base-TX Ethernet ports
Uplink Ports	2 × dual-purpose 10/100/1000 or SFP (Combo) ports
Transmission Mode	Full-duplex / Half-duplex auto-negotiation
Standards & Protocols
Network Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1d, IEEE 802.1X
VLAN
VLAN Support	IEEE 802.1Q VLAN, up to 4K VLANs supported
VLAN Features	Port-based VLAN
QoS
QoS Features	Port rate limiting and flow rate limiting
Queue Support	4 priority queues per port
Queue Mapping	802.1p-based packet-to-queue mapping
Scheduling Algorithms	SP, WRR, SP+WRR
Multicast
Multicast Management	IGMP v1/v2/v3 Snooping
Multicast Features	Bundle port multicast load balancing; port-based multicast flow rate limiting and traffic statistics
Port Mirroring	1:1 or N:1 port mirroring
Network Management
Management Methods	CLI configuration; Telnet remote configuration; SNMP V1/V2/V3; RMON; Cluster Management HGMP V2; SSH V2; Web-based management
Auto-configuration	Supported
GVRP	Supported
Stacking	Supported (iStack)
Security
Authentication	802.1x; AAA authentication; RADIUS; HWTACACS+; NAC
Access Control	IP, MAC, port, VLAN combined binding
Security Features	Dynamic ARP Detection; IP Source Guard; Port isolation; Port security; Sticky MAC; MAC address filtering; Packet filtering
Storm Control	Multicast, broadcast, and unknown unicast packet suppression
MAC Learning	MAC address learning limit per port
CPU Protection	Supported
Power
Power Supply	AC 100-240V, 50-60 Hz
Power Consumption	< 15.5W
Physical
Dimensions (W×D×H)	442 × 220 × 43.6 mm (1U)
Weight	< 2.4 kg
Environmental
Operating Temperature	0°C to 50°C
Operating Humidity	10% to 90% (non-condensing)
Storage Temperature	-5°C to 55°C
Storage Humidity	10% to 90% (non-condensing)
