Huawei S2700-18TP-SI-AC – Product Documentation & Specifications

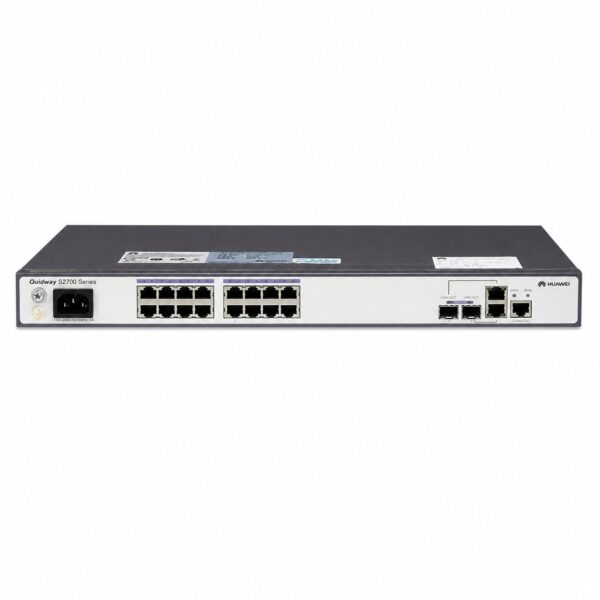

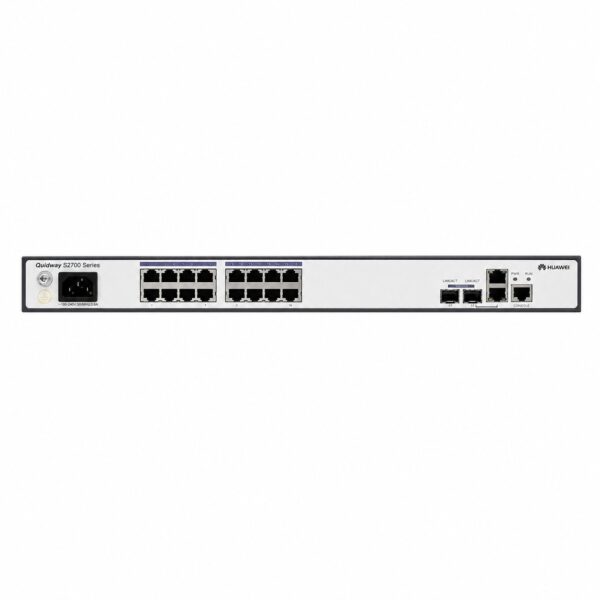

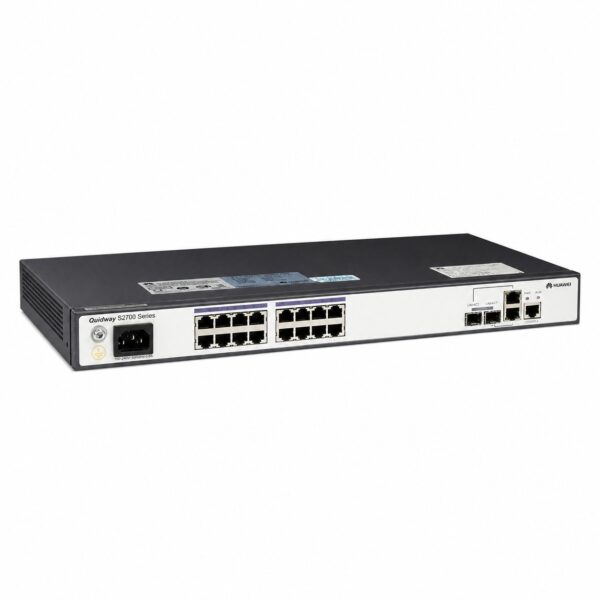

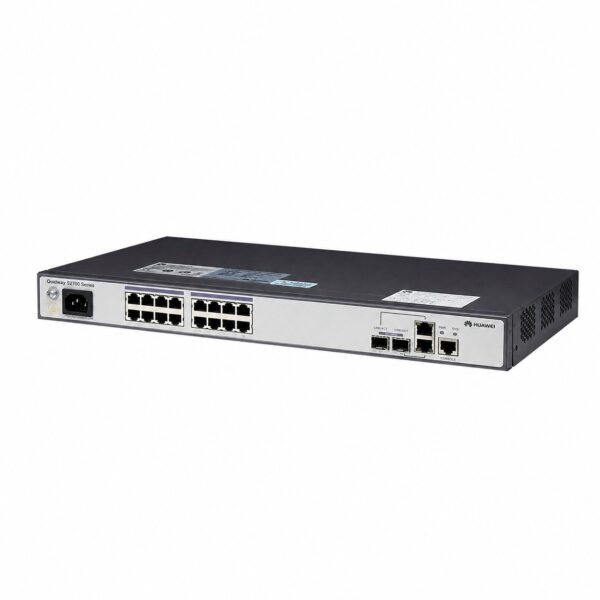

Name: Huawei S2700-18TP-SI-AC Switch - SunSpike
SKU: S2700-18TP-SI-AC

Product Overview

The Huawei S2700-18TP-SI-AC is a next-generation energy-efficient smart access Ethernet switch designed for enterprise network access and aggregation layers. It belongs to the S2700 series of campus fixed switches, offering high-density, cost-effective packet forwarding capabilities to meet enterprise requirements for reliable multi-service access and high-quality transmission.

The switch features 18 ports in a non-modular structure, including 16 10/100BASE-TX Ethernet electrical ports and 2 dual-purpose combo ports (10/100/1000BASE-T electrical + 100/1000BASE-X optical). The combo ports are multiplexed – only one interface (electrical or optical) can operate at a time.

Powered by advanced integrated chip energy-saving circuit design, the S2700-18TP-SI-AC supports balanced heat dissipation and idle port hibernation. Its fanless silent design effectively reduces noise pollution, making it suitable for deployment in office environments. The switch supports stackable deployment, automatic configuration, CLI management, Telnet remote configuration, SNMP V1/V2C/V3, RMON, SSH V2, and web-based management.

With 7KV lightning protection technology and comprehensive security features including AAA authentication, RADIUS, HWTACACS+, port isolation, and CPU protection, the S2700-18TP-SI-AC provides a reliable and secure access solution for enterprise networks.

Documentation List

Document Type	Description
Hardware Description	Chassis appearance, port layout, physical structure, and component specifications
Version Mapping Table	Software version compatibility matrix for the S2700-18TP-SI-AC chassis
Port Description	Detailed attributes of 10/100BASE-TX ports, combo ports (electrical + optical), and console port
Technical Specifications	Complete system parameters including memory, flash, performance, power, and environmental specifications
Configuration Guide	CLI configuration, Telnet remote configuration, and web management instructions
Network Management Guide	SNMP, RMON, cluster management (HGMP V2), and automatic configuration procedures
Security Configuration Guide	AAA authentication, RADIUS, HWTACACS+, port isolation, DHCP Snooping, and CPU protection settings
QoS Configuration Guide	Port rate limiting, queue mapping, SP/WRR/SP+WRR scheduling algorithms
VLAN Configuration Guide	IEEE 802.1Q VLAN support (up to 4K VLANs) and port-based VLAN configuration
Multicast Management Guide	IGMP v1/v2/v3 Snooping and port-based multicast rate limiting
Stacking Guide	Stackable deployment and configuration procedures
Application Scenarios	Enterprise network access and aggregation layer deployment use cases

Technical Specifications

Category	Parameter	Specification
Model	Product Model	S2700-18TP-SI-AC
	Product Type	Gigabit Ethernet Switch / Smart Switch
	Application Layer	Layer 2 / Layer 3
Hardware	Memory (RAM)	64 MB
	Flash Memory	16 MB
	Port Structure	Non-modular
	Port Count	18 ports
	Port Description	16 × 10/100BASE-TX Ethernet ports, 2 × dual-purpose combo ports (10/100/1000BASE-T + 100/1000BASE-X)
	Console Port	1 × console port (RJ45)
	Connector Type	RJ45
Performance	Switching Capacity	32 Gbps
	Forwarding Performance	5.4 Mpps
	MAC Address Table	8K entries
	Switching Mode	Store-and-forward
Standards	Network Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1d, IEEE 802.1X
VLAN	VLAN Support	IEEE 802.1Q VLAN, up to 4K VLANs
	VLAN Types	Port-based VLAN
QoS	Queue Support	4 or 8 priority queues per port
	Scheduling Algorithms	SP, WRR, SP+WRR
	Rate Limiting	Outbound port rate limiting and flow rate limiting
Multicast	IGMP Snooping	IGMP v1/v2/v3 Snooping
	Multicast Features	Port-based multicast rate limiting and traffic statistics
Network Management	Management Methods	CLI, Telnet, SNMP V1/V2C/V3, RMON, SSH V2, Web-based management
	Stacking	Stackable
	Automatic Configuration	Supported
	Cluster Management	HGMP V2
	GVRP	Supported
Security	Authentication	AAA, RADIUS, HWTACACS+, NAC
	Port Security	Port isolation, port security, Sticky MAC
	Access Control	IP, MAC, port, VLAN combination binding
	Storm Control	Multicast, broadcast, and unknown unicast packet suppression
	DHCP Snooping	Supported (S2710-SI)
	CPU Protection	Supported
	802.1X	Supported
	Dynamic ARP Inspection	Supported
	IP Source Guard	Supported
Power	Power Supply	AC 100–240 V, 50/60 Hz
	Maximum Voltage Range	100 V AC to 240 V AC, 50/60 Hz
	Power Consumption	< 14.5 W
Physical	Dimensions (W×D×H)	442.0 × 220.0 × 43.6 mm (17.4 × 8.7 × 1.72 in)
	Weight	< 2.4 kg
Environment	Operating Temperature	0°C to 45°C / 0°C to 50°C
	Operating Humidity	5%–95% (non-condensing) / 10%–90% (non-condensing)
	Storage Temperature	-5°C to 55°C
	Storage Humidity	10%–90% (non-condensing)
Other	Lightning Protection	7KV surge protection
	Cooling	Fanless silent design
