Huawei S2700-18TP-EI-AC – Product Documentation

Name: Huawei S2700-18TP-EI-AC Switch - SunSpike
SKU: S2700-18TP-EI-AC

Product Overview

The Huawei S2700-18TP-EI-AC is a next-generation green and energy-efficient intelligent 100 Mbps access Ethernet switch designed for enterprise networks. Built on advanced switching technology and Huawei’s proprietary VRP (Versatile Routing Platform) software, this switch delivers simple and convenient installation and maintenance procedures while incorporating flexible VLAN deployment, comprehensive security and QoS control policies, and environmentally friendly technologies.

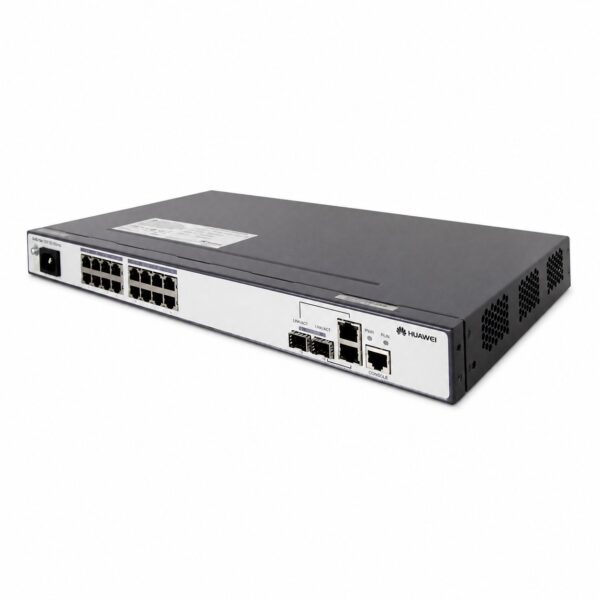

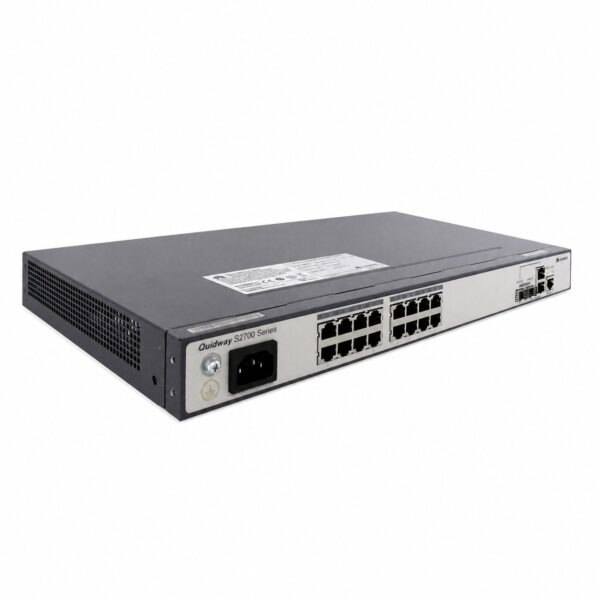

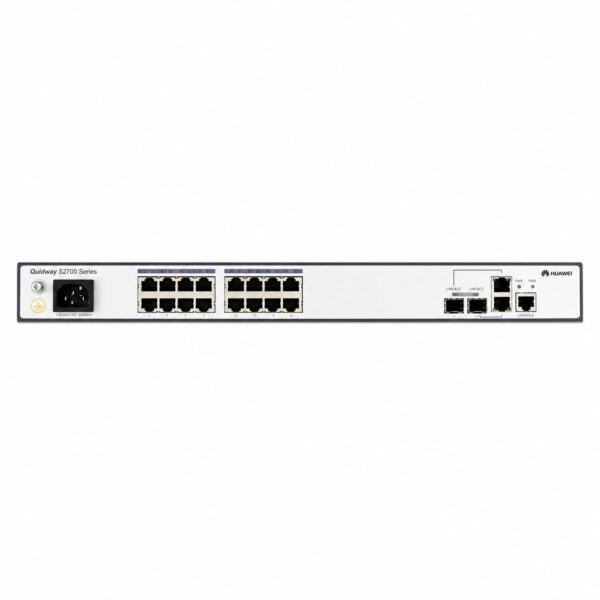

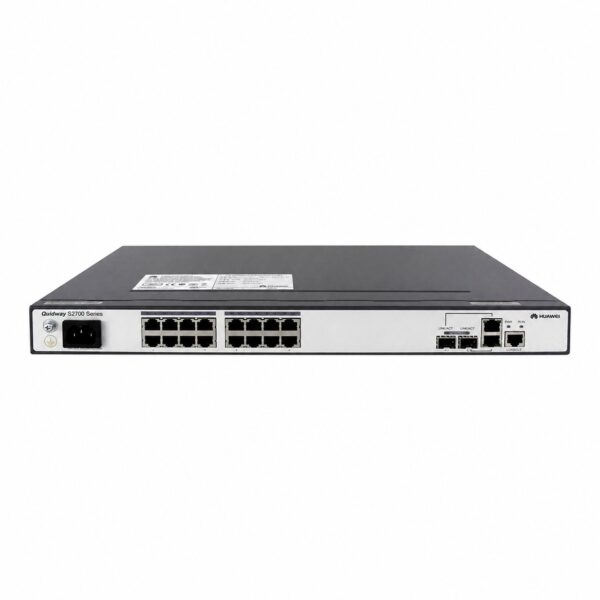

As a Layer 2 intelligent switch, the S2700-18TP-EI-AC provides 18 ports with a non-modular port structure. It features 16 10/100Base-TX Ethernet ports and 2 Gigabit Combo ports (10/100/1000Base-T or 100/1000Base-X). The switch supports stackable deployment, enabling network scalability and simplified management.

With a switching capacity of 32 Gbps and a forwarding performance of 5.4 Mpps, the S2700-18TP-EI-AC is well-suited for small to medium-sized enterprise networks requiring multi-service bearer capabilities and intelligent network access. It supports a wide range of network standards, comprehensive VLAN features, robust security mechanisms including 802.1x authentication and dynamic ARP inspection, as well as advanced QoS traffic control. The switch operates on AC power supply (100-240V) and features a compact 1U rack-mountable form factor.

Specifications

Category	Specification
Basic Parameters
Product Model	S2700-18TP-EI-AC
Product Type	Intelligent Switch
Application Layer	Layer 2
Switching Capacity	32 Gbps
Forwarding Performance	5.4 Mpps
Switching Mode	Store-and-Forward
MAC Address Table	8K
Hardware Parameters
Port Structure	Non-modular
Port Count	18 ports
Port Description	16 × 10/100Base-TX ports + 2 × Gigabit Combo ports (10/100/1000Base-T or 100/1000Base-X)
Transmission Rate	10/100 Mbps
Transmission Mode	Full-duplex / Half-duplex auto-negotiation
Stacking Support	Stackable
Network & Software
Network Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1d, IEEE 802.1X
VLAN Support	IEEE 802.1Q VLAN, up to 4K VLANs; port-based VLAN; MAC address-based VLAN; Basic QinQ
QoS	Port rate limiting and flow rate limiting; 4 priority queues per port; 802.1p mapping; SP, WRR, SP+WRR scheduling; flow classification based on source/destination MAC, source/destination IP, Layer 4 ports, protocol type, VLAN, Ethernet frame protocol, CoS; traffic marking and packet redirection
Multicast Management	IGMP v1/v2/v3 Snooping; multicast load balancing across bundled ports; multicast flow rate limiting and traffic statistics per port; port 1:1 or N:1 mirroring
Network Management	Stacking; auto-configuration; CLI configuration; Telnet remote configuration; SNMP V1/V2/V3; RMON; Cluster Management HGMP V2; SSH V2; WEB management; GVRP protocol
Security Management	802.1x with per-port maximum user limit; dynamic ARP inspection; IP Source Guard; AAA authentication (RADIUS, HWTACACS+, NAC); IP, MAC, port, VLAN binding; port rate limiting; port isolation, port security, Sticky MAC; packet filtering; MAC address filtering; multicast, broadcast, and unknown unicast storm suppression; MAC address learning limit; CPU protection
Other Parameters
Power Supply	AC 100-240V
Maximum Power Consumption	< 14.5W
Dimensions (W × D × H)	442 × 220 × 43.6 mm (1U)
Weight	< 2.4 kg
Operating Temperature	0°C to 50°C
Operating Humidity	10% to 90% (non-condensing)
Storage Temperature	-5°C to 55°C
Storage Humidity	10% to 90% (non-condensing)
