Huawei S3700-52P-EI-DC – Product Information

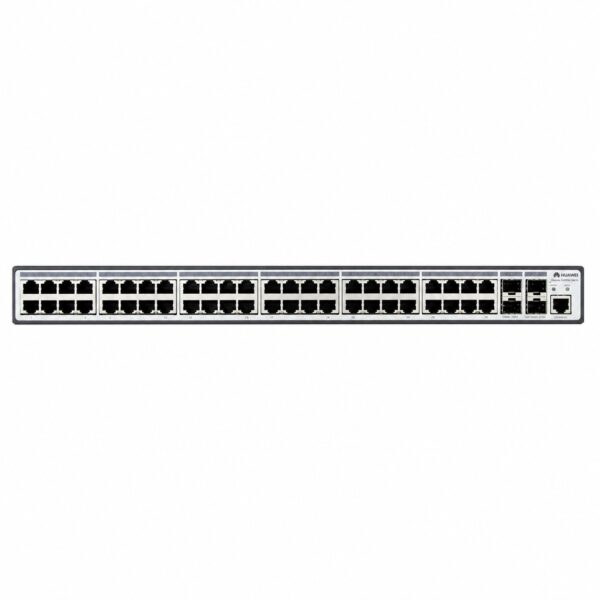

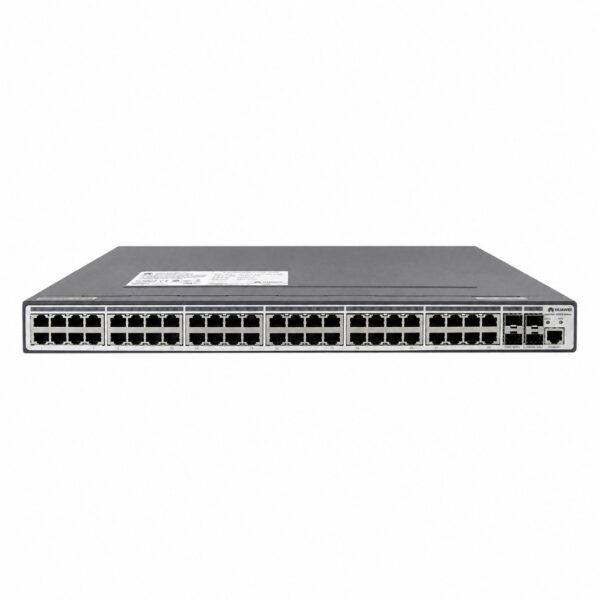

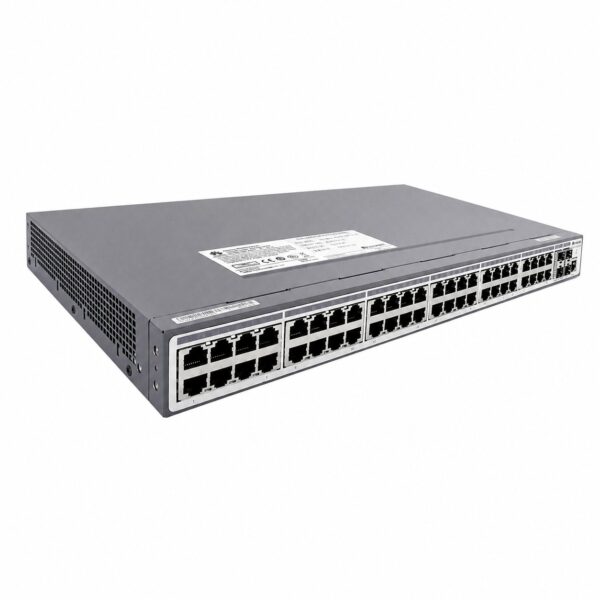

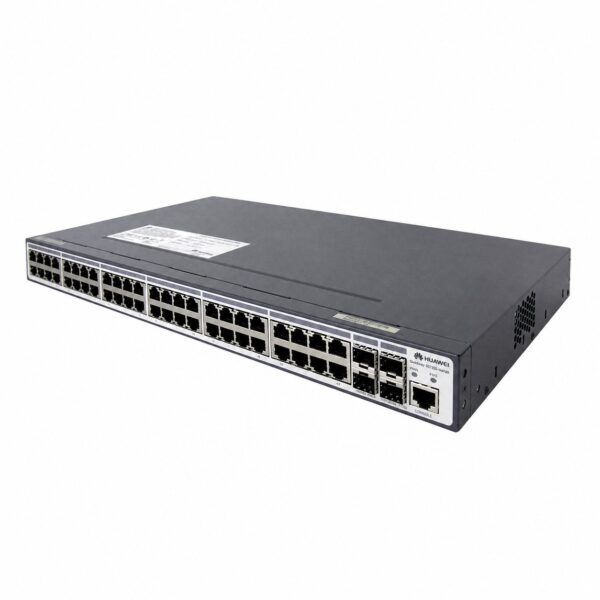

Name: Huawei S3700-52P-EI-DC Switch - SunSpike
SKU: S3700-52P-EI-DC

Product Overview

The Huawei S3700-52P-EI-DC is a high-performance, energy-efficient Layer 2/Layer 3 fixed-configuration Ethernet switch designed for enterprise campus access or aggregation networks. As an enhanced (“EI”) version of the S3700 series, it supports direct-current (DC) power input, making it particularly suitable for environments where DC power is preferred or required.

Built on Huawei’s Versatile Routing Platform (VRP), the switch delivers robust routing capabilities including static routing, RIPv1, RIPv2, and ECMP. It features intelligent iStack stacking technology, allowing multiple switches to be interconnected via stacking cables to form a virtual chassis architecture with a single management IP, significantly reducing operational and maintenance costs.

The S3700-52P-EI-DC employs a fanless, silent, and energy-saving design that minimizes power consumption, eliminates operational noise, reduces mechanical failure points, and protects against condensation corrosion and dust contamination. Its next-generation high-integration chipset supports idle port sleep mode for further power savings. The switch offers comprehensive QoS, robust security features, multicast optimization, and rapid ring protection protocols, making it a versatile and reliable solution for next-generation campus networks.

Product Specifications

Category	Specification
General
Model	S3700-52P-EI-DC
Series	S3700 Series (Enhanced Version)
Product Type	Fast Ethernet Switch / Enterprise-Class Switch
Application Layer	Layer 3
Switching Capacity	64 Gbps
Forwarding Performance	13.2 Mpps
MAC Address Table Size	16K
Memory (RAM / Flash)	128 MB RAM, 16 MB Flash
Switching Method	Store-and-Forward
Stacking Capability	Supports iStack Intelligent Stacking (up to 10 Gbps bidirectional stacking bandwidth)
Ports
Port Structure	Non-modular
Total Ports	52
Downlink Ports	48 × 10/100BASE-TX Ethernet ports
Uplink Ports	2 × 100/1000BASE-X SFP ports + 2 × 1000BASE-X SFP ports (total 4 × Gigabit SFP uplink ports)
Transmission Mode	Full-duplex / Half-duplex auto-negotiation
Network Standards
Supported Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1d, IEEE 802.1X
VLAN
VLAN Capacity	Supports up to 4K VLANs
VLAN Features	Guest VLAN, Voice VLAN, Super VLAN; VLAN based on MAC/protocol/IP subnet; QinQ; Flexible QinQ; 1:1 VLAN swapping; N:1 VLAN swapping
QoS
Queue Scheduling	WRR, DRR, SP, WRR+SP, DRR+SP
Traffic Management	Port-based rate limiting; packet redirection; port-based traffic policing; dual-rate three-color CAR; queue-based rate limiting; port shaping
Priority Marking	802.1p and DSCP priority re-marking
Packet Filtering	L2–L4 packet filtering based on source/destination MAC, source/destination IP, port, protocol, VLAN
Multicast
Multicast Groups	Supports up to 1K multicast groups
Multicast Protocols	IGMP v1/v2/v3 Snooping with fast-leave; multicast VLAN and cross-VLAN multicast replication; bundled port multicast load balancing; controllable multicast; port-based multicast traffic statistics; IGMP v1/v2/v3, PIM-SM, PIM-DM, PIM-SSM
Network Management
Management Features	MFF; Telnet remote configuration and maintenance; Virtual Cable Test (VCT); Ethernet OAM; port mirroring and RSPAN; SNMP v1/v2/v3; RMON; MUX VLAN; GVRP; iManager network management system; WEB management; auto-configuration; HGMP cluster management; SSH V2; system logging; hierarchical alarms
Security
Security Features	User分级 management and password protection; DoS attack prevention; ARP anti-attack; ICMP anti-attack; IP/MAC/port/VLAN combination binding; port isolation; port security; Sticky MAC; blackhole MAC addresses; MAC address learning limit; IEEE 802.1X authentication with single-port user limit; AAA authentication; RADIUS, HWTACACS+, NAC; SSH V2.0; CPU protection
Redundancy & Protection
Ring Protection	RRPP (Rapid Ring Protection Protocol), Smart Link, SEP
Power Supply
Power Input	DC: Rated –48 V to –60 V; Maximum range –36 V to –72 V
Maximum Power Consumption	< 38 W
Physical Specifications
Dimensions (W × D × H)	442 mm × 220 mm × 43.6 mm (1U rack-mount)
Weight	≤ 3 kg
Environmental Specifications
Operating Temperature	0 °C to +50 °C
Storage Temperature	–40 °C to +70 °C
Operating Humidity	10% to 90% (non-condensing)
Storage Humidity	10% to 90%
Operating Altitude	0–2000 m
