Huawei S2720-28TP-EI-AC Product Documentation

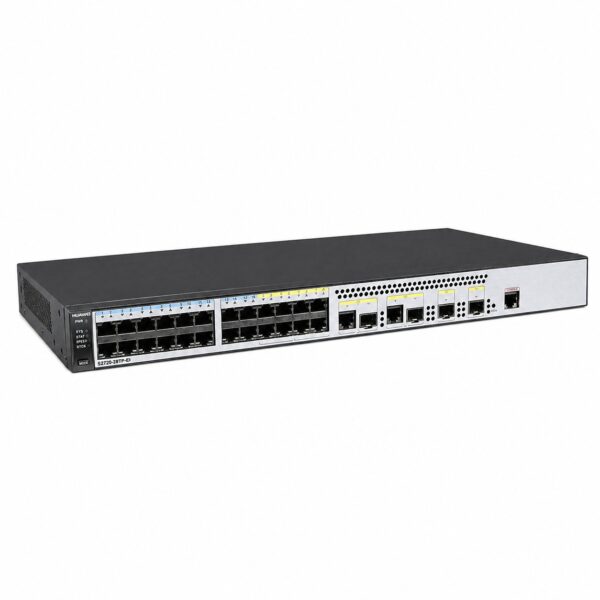

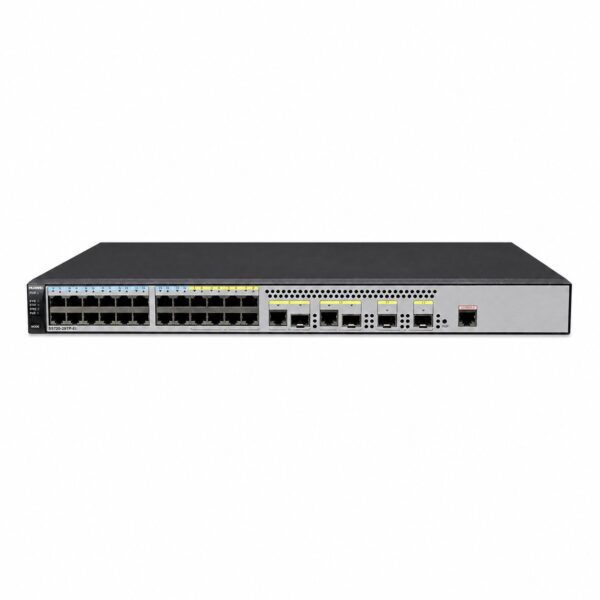

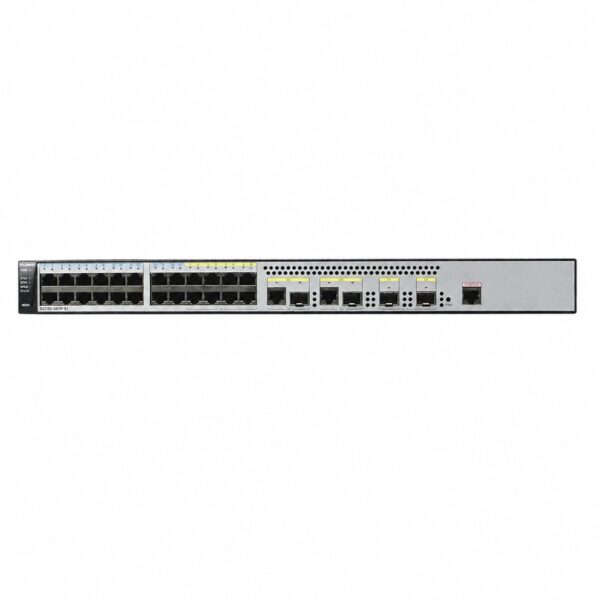

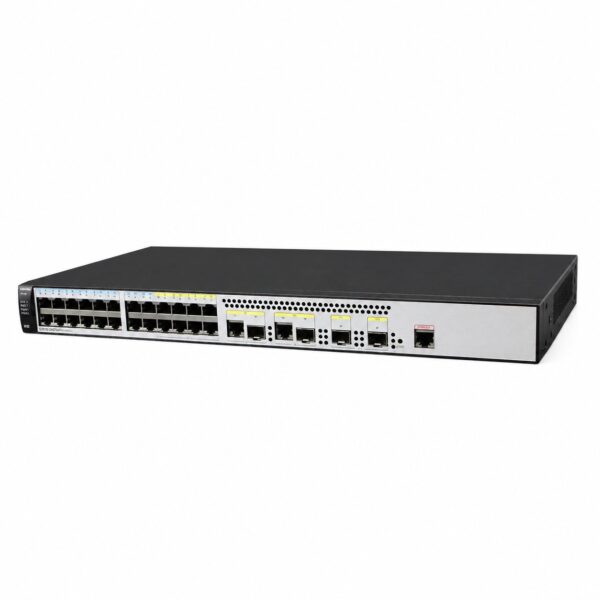

Name: Huawei S2720-28TP-EI-AC Switch - SunSpike
SKU: S2720-28TP-EI-AC

Product Overview

The Huawei S2720-28TP-EI-AC is a next-generation access switch that provides flexible 100M and GE access ports along with GE uplink ports. Built on next-generation, high-performance hardware and the Huawei Versatile Routing Platform (VRP), this switch supports intelligent stacking (iStack), flexible Ethernet networking, and diversified security control. It delivers a green, easy-to-manage, easily expandable, and cost-effective 100M-to-desktop solution for enterprise and small-to-medium business networks.

The switch operates at Layer 2 with a store-and-forward switching architecture, featuring 28 ports in a non-modular design. It includes 24 10/100BASE-TX Ethernet ports, 4 Gigabit SFP ports, and 2 combo ports (10/100/1000BASE-T + 100/1000BASE-X). With a backplane bandwidth of 12.8 Gbps and a packet forwarding rate of 9.6 Mpps, it provides reliable performance for desktop access scenarios.

The S2720-28TP-EI-AC offers comprehensive features including VLAN support (IEEE 802.1Q with up to 4K VLANs), QoS with 8 priority queues per port, multicast management (IGMP snooping v1/v2/v3), and robust security capabilities such as AAA authentication, 802.1X认证, MAC authentication, DHCP Snooping, and port isolation. It also supports IPv6 protocols, static routing, and MLD snooping.

With a compact 1U form factor (43.6 mm × 442.0 mm × 220.0 mm), fanless design for silent operation, and built-in surge protection (7KV on service ports), this switch is ideal for deployment in enterprise wiring closets and branch offices requiring reliable, quiet, and energy-efficient networking.

Technical Specifications

Category	Specification
General
Product Model	S2720-28TP-EI-AC
Product Type	Fast Ethernet Switch / Intelligent Switch / Enterprise-class Switch
Application Layer	Layer 2
Switching Capacity	12.8 Gbps
Packet Forwarding Rate	9.6 Mpps
Switching Mode	Store-and-forward
MAC Address Table	16K entries
Ports
Port Structure	Non-modular
Total Ports	28
Fixed Ports	24 × 10/100BASE-TX Ethernet ports
Uplink Ports	4 × Gigabit SFP ports
Combo Ports	2 × combo ports (10/100/1000BASE-T + 100/1000BASE-X)
Console Port	1 × console port
Stack Ports	2 × uplink 1000BASE-X optical ports
Power
Rated Voltage Range (AC)	100 V AC to 240 V AC, 50/60 Hz
Maximum Voltage Range (AC)	90 V AC to 264 V AC, 47 Hz to 63 Hz
Rated Voltage Range (DC)	-48 V to -60 V
Maximum Voltage Range (DC)	-36 V to -72 V
Maximum Power Consumption	< 15.7 W (100% throughput)
Typical Power Consumption	15.5 W (30% traffic load)
Physical
Dimensions (H × W × D)	43.6 mm × 442.0 mm × 220.0 mm (1.72 in. × 17.4 in. × 8.7 in.)
Weight	< 3 kg
Environmental
Operating Temperature	0°C to 45°C (some sources: -5°C to 50°C)
Storage Temperature	-40°C to +70°C
Operating Humidity	5% to 95% (non-condensing)
Operating Altitude	0 to 5000 m
Noise	Fanless (no noise under normal temperature)
Surge Protection
Service Port Surge Protection	Common mode: ±6 kV to ±7 kV
Power Supply Surge Protection	±6 kV (differential mode), ±6 kV (common mode)
Memory
RAM	256 MB
Flash	200 MB
