Huawei S2700-18TP-EI-DC – Product Information

Name: Huawei S2700-18TP-EI-DC Switch - SunSpike
SKU: S2700-18TP-EI-DC

Product Overview

The Huawei S2700-18TP-EI-DC is a next-generation energy-saving 100M Ethernet intelligent access switch from the Huawei S2700 series. It is a Layer 2 Ethernet switch designed primarily for deployment on enterprise intranets and IP Metropolitan Area Networks, carrying various Ethernet services.

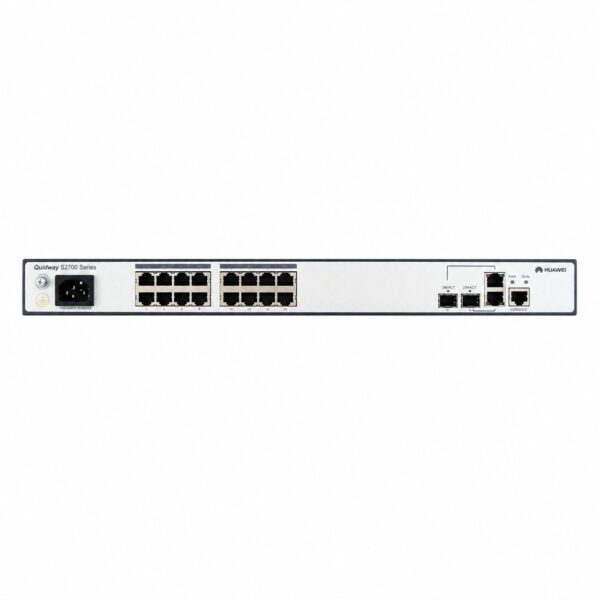

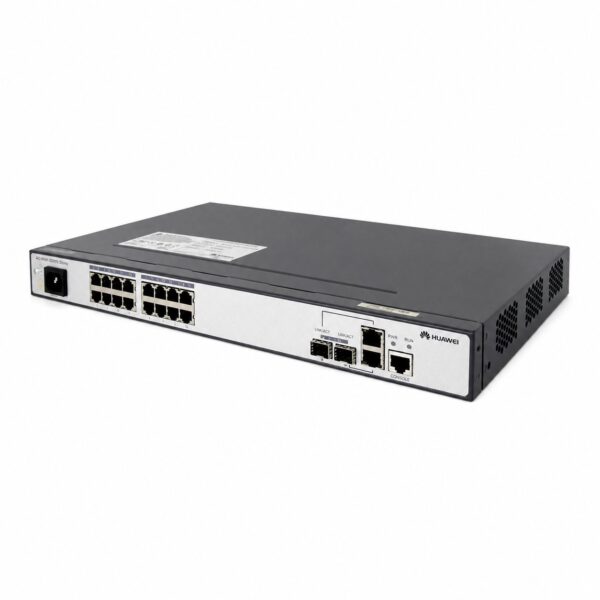

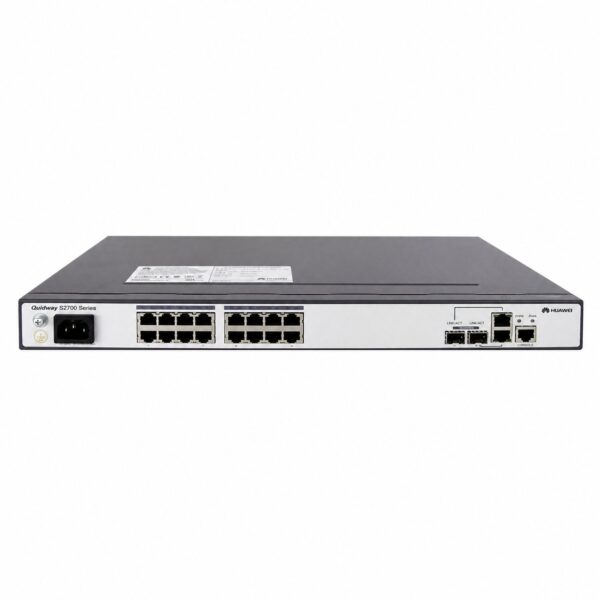

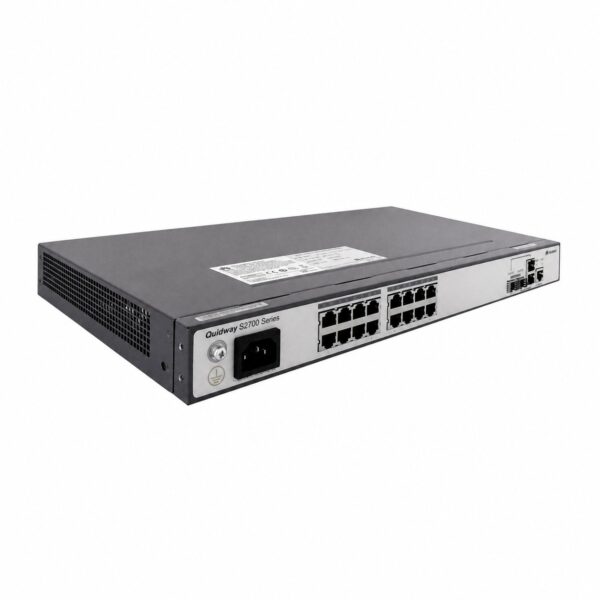

This model features 16 10/100BASE-T Ethernet ports and 2 dual-purpose Gigabit Combo ports (supporting either 10/100/1000BASE-T or SFP connectivity), and is equipped with a fixed DC power supply. The EI (Enhanced Edition) version provides more powerful VLAN and QoS capabilities compared to the SI (Standard Edition) models.

Built upon Huawei’s Versatile Routing Platform (VRP) software and leveraging cutting-edge switching technologies, the S2700-18TP-EI-DC delivers a switching capacity of 32 Gbps and a forwarding performance of 5.4 Mpps. The switch supports flexible VLAN deployment, comprehensive security and QoS policies, and energy-saving technologies, making it an ideal solution for enterprise customers building next-generation IT networks.

The S2700 series supports powerful surge protection, SEP, ERPS, and ASIC switching technologies. With a compact 1U form factor (442 mm × 220 mm × 43.6 mm) and weighing less than 2.4 kg, it is easy to install and maintain.

Technical Specifications

Category	Specification
Model	S2700-18TP-EI-DC
Product Type	Layer 2 intelligent Ethernet access switch
Fixed Ports	16 × 10/100BASE-T Ethernet ports, 2 × dual-purpose 10/100/1000BASE-T or SFP Combo ports
Extended Slots	None
Switching Capacity	32 Gbps
Forwarding Performance	5.4 Mpps
MAC Address Table	Supports 8K MAC address entries; supports manual deletion of dynamic MAC address entries; supports configuration of MAC address aging time; supports disabling of MAC address learning based on port or aggregation group; supports blackhole MAC addresses
VLAN Features	Supports IEEE 802.1Q; supports 4K active VLANs; supports port-based VLAN assignment; supports MAC address-based assignment; supports port-based QinQ
QoS	Supports outbound port-based rate limiting and flow-based rate limiting; supports 4 or 8 queues with different priorities on each port; supports mapping between 802.1p priorities and queues; supports SP, WRR, and SP+WRR scheduling algorithms
IPv4 Routing	Supports static routing
IPv6 Features	Supports IPv6 protocol; supports static IPv6 routes; supports MLD v1/v2 snooping
Multicast	Supports IGMP v1/v2/v3 snooping; supports MVLAN; supports controllable multicast; supports port-based rate limiting for multicast packets
Reliability	Supports STP (IEEE 802.1d), RSTP (IEEE 802.1w), MSTP (IEEE 802.1s), and RRPP topology and RRPP multi-instance
Security & Access Features	Supports 802.1x authentication and limit on the number of users on an interface; supports multiple authentication methods including AAA, RADIUS, and TACACS+; supports port isolation; supports IP Source Guard; supports DHCP snooping; supports sticky MAC; supports packet filtering based on MAC addresses; supports suppression of multicast, broadcast, and unknown unicast packets; supports limit on the number of learned MAC addresses; supports CPU defense; supports DHCP relay
Surge Protection	Surge protection capability of service ports: 6 kV to 7 kV
Management & Maintenance	Supports automatic configuration; supports CLI configuration; supports remote configuration and maintenance via Telnet; supports SNMP v1/v2/v3; supports SSHv2; supports Web management
Operating Environment	Long-term operating temperature: –5°C to +50°C; relative humidity: 10% to 90% (non-condensing)
Power Supply	Fixed DC power supply
Dimensions (W × D × H)	442 mm × 220 mm × 43.6 mm
Weight	< 2.4 kg (without power supply)
Power Consumption	< 14.5 W
