Huawei S2700-26TP-EI-DC – Product Information

Name: Huawei S2700-26TP-EI-DC Switch - SunSpike
SKU: S2700-26TP-EI-DC

Product Overview

The Huawei S2700-26TP-EI-DC is a Layer 2 intelligent Ethernet switch designed for enterprise access layer deployments. As part of Huawei’s S2700-EI series, this switch delivers energy-efficient, intelligent 100 Mbps access switching powered by next-generation switching technology and the Huawei VRP (Versatile Routing Platform) software platform.

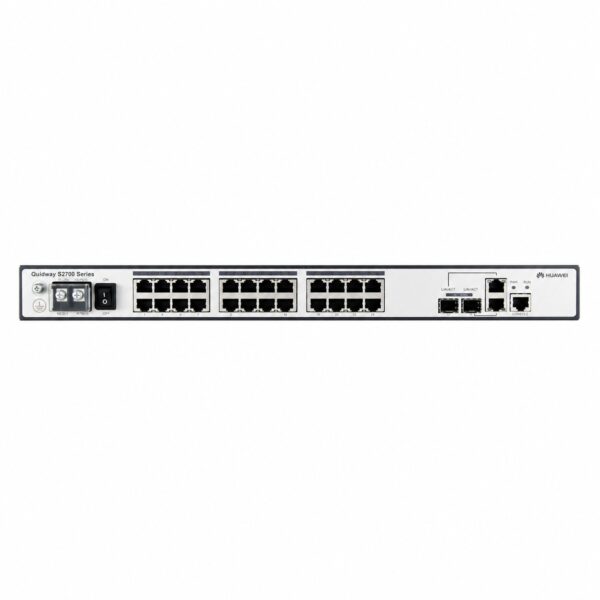

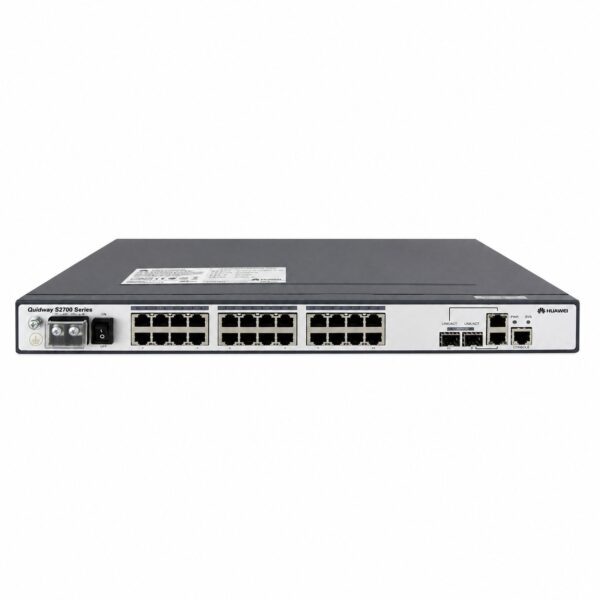

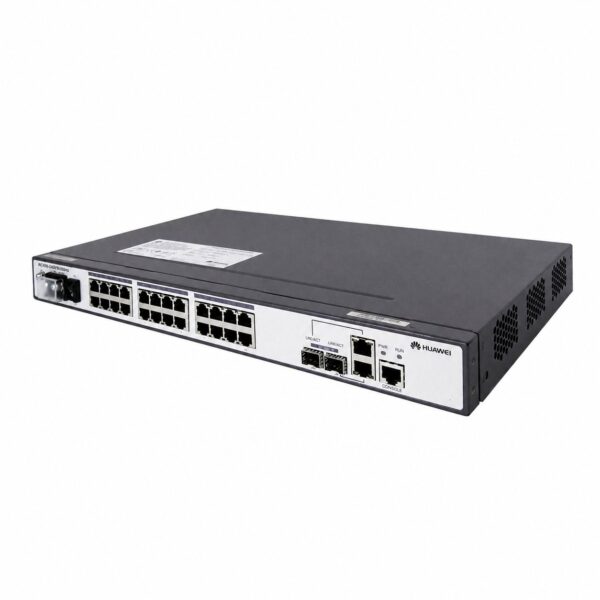

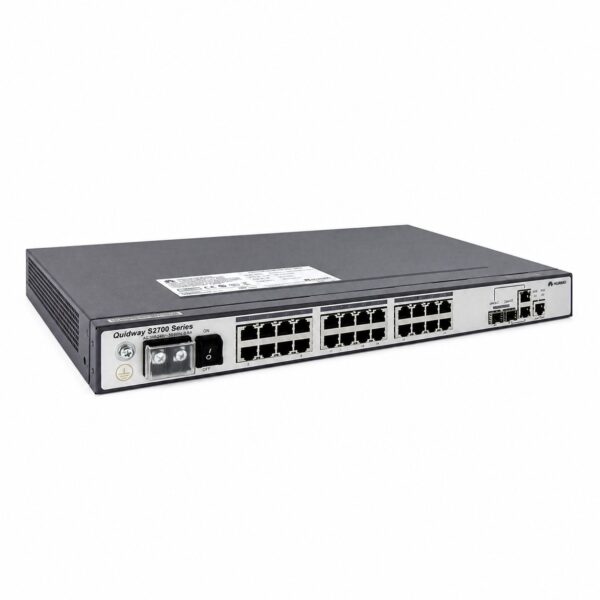

The switch features a non-modular 26-port configuration, comprising 24 10/100BASE-TX Ethernet ports and 2 Gigabit combo ports (10/100/1000BASE-T + 100/1000BASE-X). The combo ports provide flexible uplink connectivity, supporting both electrical and optical (SFP) interfaces. Powered by DC -48V to -60V input, the S2700-26TP-EI-DC is well-suited for environments where DC power infrastructure is available.

With a switching capacity of 32 Gbps and a packet forwarding rate of 6.6 Mpps, the switch supports store-and-forward switching and an 8K MAC address table. It offers comprehensive Layer 2 features including VLAN support (up to 4K VLANs based on IEEE 802.1Q), port-based and MAC-based VLAN assignment, and basic QinQ. The QoS mechanism supports port-based and flow-based rate limiting, with four priority queues per port and multiple scheduling algorithms including SP, WRR, and SP+WRR.

The switch is equipped with robust security features including 802.1X authentication, dynamic ARP inspection, IP Source Guard, AAA authentication (supporting RADIUS, HWTACACS+, and NAC), and comprehensive IP/MAC/port/VLAN binding capabilities. Management options are extensive, supporting CLI, Telnet, SSH V2, SNMP V1/V2/V3, RMON, HGMP V2 cluster management, and Web-based management.

The S2700-26TP-EI-DC also supports IGMP v1/v2/v3 Snooping for multicast management, port mirroring (1:1 or N:1), stackable functionality, and Huawei’s Easy Operation feature for simplified deployment, configuration, monitoring, and troubleshooting.

The compact form factor (442 × 220 × 43.6 mm, <2.4 kg) and wide operating temperature range (0°C to 50°C) make it suitable for various deployment scenarios, from small to medium-sized office networks to branch office connectivity.

Specifications

Category	Specification
General
Product Model	S2700-26TP-EI-DC
Product Type	Intelligent Switch / Ethernet Switch
Application Layer	Layer 2
Switching Method	Store-and-Forward
Performance
Backplane Bandwidth	32 Gbps
Packet Forwarding Rate	6.6 Mpps
MAC Address Table	8K
Ports
Port Structure	Non-modular
Total Port Count	26
Port Description	24 × 10/100BASE-TX ports + 2 × Gigabit Combo ports (10/100/1000BASE-T + 100/1000BASE-X)
Transmission Mode	Full-duplex / Half-duplex auto-negotiation
Standards
Network Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1d, IEEE 802.1X
VLAN
VLAN Support	Yes
VLAN Features	IEEE 802.1Q VLAN, up to 4K VLANs; port-based VLAN; MAC-based VLAN; basic QinQ
QoS
QoS Support	Yes
QoS Features	Port-based and flow-based rate limiting; 4 priority queues per port; 802.1p mapping; SP, WRR, SP+WRR scheduling; flow classification based on source/destination MAC, source/destination IP, Layer 4 ports, protocol type, VLAN, Ethernet frame protocol, CoS
Multicast
Multicast Management	IGMP v1/v2/v3 Snooping; multicast load balancing across bundled ports; port-based multicast rate limiting and traffic statistics
Security
Security Features	802.1X authentication; per-port maximum user limit; dynamic ARP detection; IP Source Guard; AAA (RADIUS, HWTACACS+, NAC); IP/MAC/port/VLAN binding; port isolation; port security; Sticky MAC; packet filtering; MAC address filtering; multicast/broadcast/unknown unicast storm suppression; MAC address learning limit; CPU protection
Management
Management Features	Stacking; auto-configuration; CLI; Telnet; SNMP V1/V2/V3; RMON; HGMP V2 cluster management; SSH V2; Web-based management; GVRP
Stacking
Stacking Support	Yes (stackable)
Power
Power Supply	DC -48V to -60V
Power Consumption	< 15.5W
Physical
Dimensions (W×D×H)	442 × 220 × 43.6 mm (1.72 in. × 8.7 in. × 17.4 in.)
Weight	< 2.4 kg
Environmental
Operating Temperature	0°C to 50°C
Operating Humidity	10% to 90% (non-condensing)
Storage Temperature	-5°C to 55°C
Storage Humidity	10% to 90% (non-condensing)
