Huawei S5700-28C-SI – Product Documentation

Name: Huawei S5700-28C-SI Switch - SunSpike
SKU: S5700-28C-SI

Product Overview

The Huawei S5700-28C-SI is a standard Layer 2/Layer 3 Gigabit Ethernet switch built on Huawei’s next-generation high-performance hardware architecture and the Versatile Routing Platform (VRP). It delivers a switching capacity of 256 Gbps and a forwarding performance of 96 Mpps, providing robust data processing capabilities for enterprise networks.

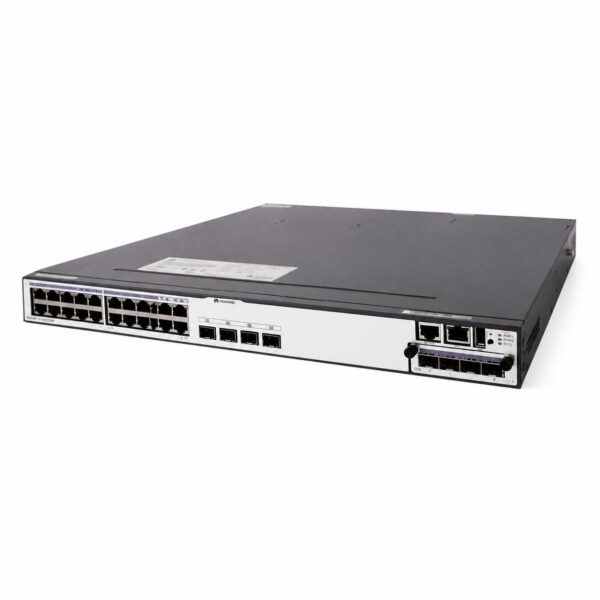

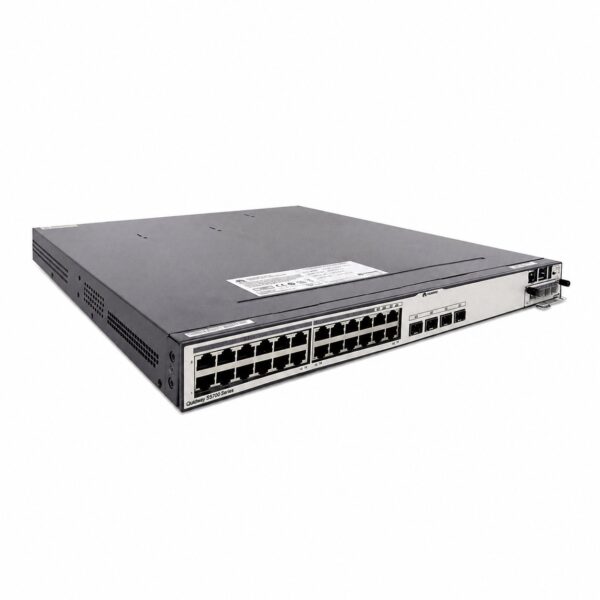

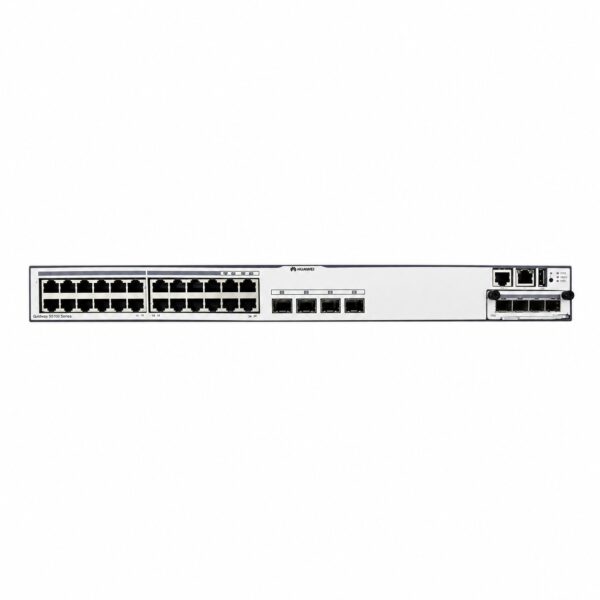

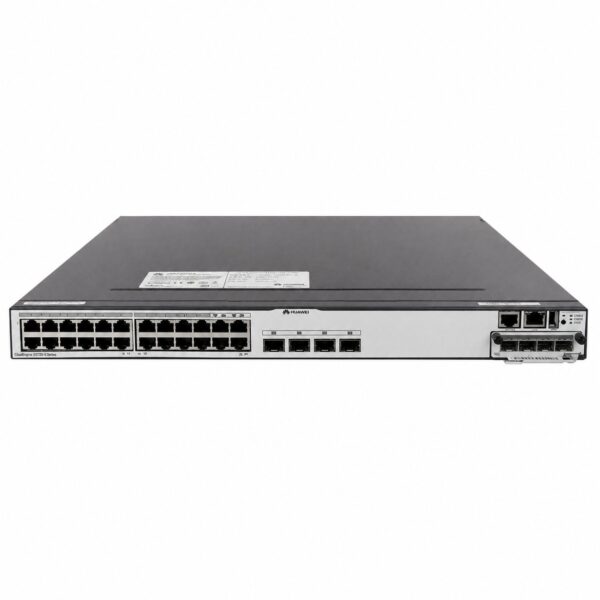

The switch features 24 Ethernet 10/100/1000 ports, 4 of which are dual-purpose Combo ports supporting either 10/100/1000BASE-T or 100/1000BASE-X SFP connectivity. It is equipped with 2 extended slots — one for an uplink subcard and the other for a stack card — offering flexible network expansion options. With high-density GE interfaces and support for 10 GE uplink interfaces, the S5700-28C-SI is well-suited for a variety of deployment scenarios.

The S5700-SI series integrates advanced technologies in reliability, security, and energy efficiency. It supports Ethernet Ring Protection Switching (ERPS/G.8032), the latest ring network protocol that implements millisecond-level protection switching through mature Ethernet OAM functions and the Ring Automatic Protection Switching (R-APS) mechanism. This enables flexible networking with lower OPEX and CAPEX for customers.

Common application scenarios include:

Access or aggregation switches on enterprise campus networks
Access switches in data center networks

The switch features simple and convenient installation and maintenance procedures, helping reduce operational and management costs while assisting enterprise customers in building next-generation IT networks.

Product Specifications

Category	Specification
General
Model	S5700-28C-SI
Part Number	02352341
Product Type	Gigabit Ethernet Switch
Application Layer	Layer 3
Transmission Rate	10/100/1000 Mbps
Switching Capacity	256 Gbps
Forwarding Performance	96 Mpps
Switching Mode	Store-and-Forward
MAC Address Table Size	16K entries
Ports & Interfaces
Fixed Ports	24 × 10/100/1000BASE-T Ethernet ports
Combo Ports	4 × 100/1000BASE-X Gigabit Combo ports (dual-purpose 10/100/1000BASE-T or SFP)
Total Ports	28
Console Port	1 × Console port
Management Port	1 × ETH management port
USB Port	1 × USB port

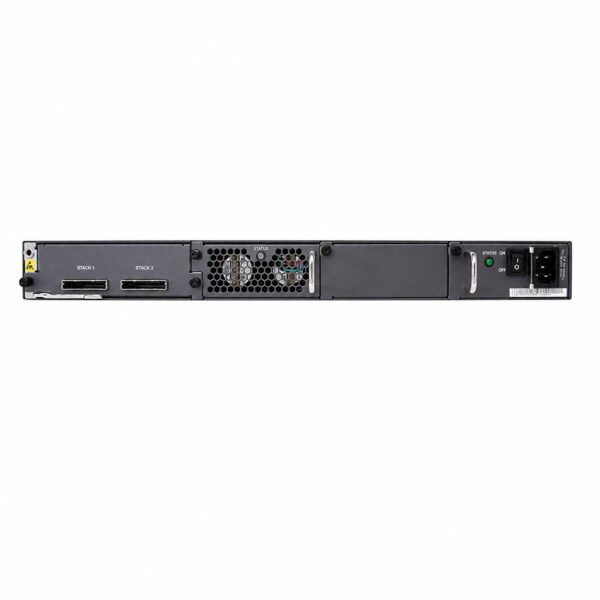

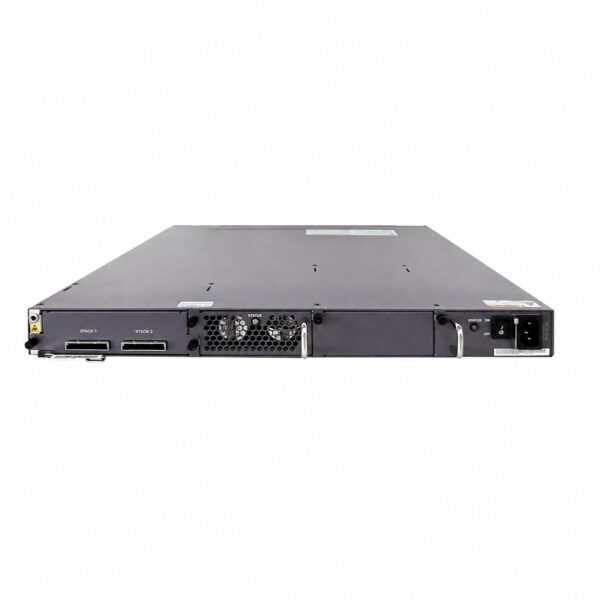

Extended Slots	2 (one for uplink subcard, one for stack card)
Memory
RAM	256 MB
Flash	32 MB
Physical Specifications
Dimensions (H × W × D)	43.6 mm × 442.0 mm × 420.0 mm (1.72 in × 17.4 in × 16.5 in)
Weight (Empty)	≤ 5 kg (11.02 lb)
Weight (Fully Configured)	≤ 8.5 kg (18.74 lb)
Power
Rated Voltage Range	AC: 100 V to 240 V, 50/60 Hz
	DC: -48 V to -60 V
Maximum Voltage Range	AC: 90 V to 264 V, 47 Hz to 63 Hz
	DC: -36 V to -72 V
Maximum Power Consumption	< 56 W (100% throughput, full fan speed)
Power Supply	Dual hot-swappable AC/DC power modules
Network Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1d, IEEE 802.1X
Stacking	Stackable (via dedicated stack card)
VLAN	Supports up to 4K VLANs; Guest VLAN, Voice VLAN; MAC/Protocol/IP subnet/Policy/Port-based VLAN; 1:1 and N:1 VLAN switching
QoS	Port rate limiting; packet redirection; port-based traffic policing; dual-rate three-color CAR; 8 queues per port; WRR, DRR, SP, WRR+SP, DRR+SP queue scheduling; 802.1p and DSCP priority remarking; L2–L4 packet filtering (source/destination MAC, source/destination IP, port, protocol, VLAN)
Network Management	Stacking; MFF; Virtual Cable Test; port mirroring and RSPAN; Telnet; SNMPv1/v2/v3; RMON; web-based management; HGMP cluster management; system logging; hierarchical alarms; GVRP; MUX VLAN
Security	User分级 management and password protection; DoS/ARP/ICMP attack prevention; IP-MAC-port-VLAN binding; port isolation; port security; Sticky MAC; blackhole MAC; MAC address learning limit; IEEE 802.1X authentication; AAA authentication (RADIUS, TACACS+, NAC); SSH V2.0; HTTPS; CPU protection; blacklist/whitelist
Surge Protection	Service ports: ±2 kV common mode
	AC power: ±6 kV differential mode, ±6 kV common mode
	DC power: ±1 kV differential mode, ±2 kV common mode
Reliability
MTBF	53.7 years (with 2-port 10GE interface card); 74.9 years (with 4-port GE front card); 29.58 years (with 4-port 10GE front card)
MTTR	2 hours
Availability	> 0.99999
