Huawei S5700-52C-EI Switch – Product Information Sheet

Name: Huawei S5700-52C-EI Switch - SunSpike
SKU: S5700-52C-EI

Product Overview

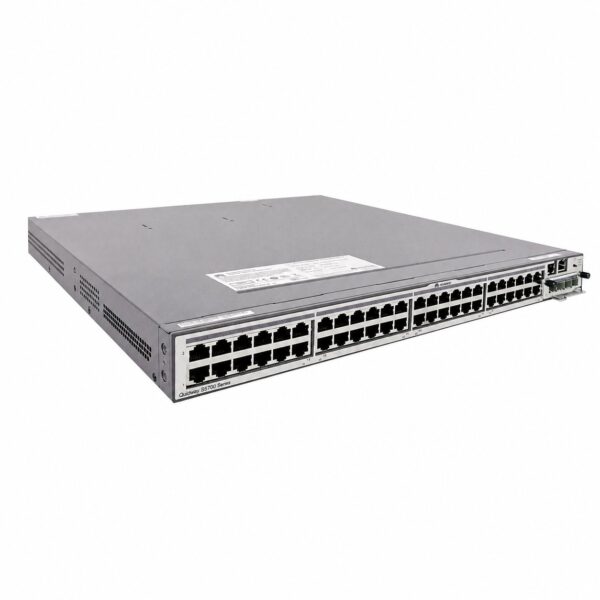

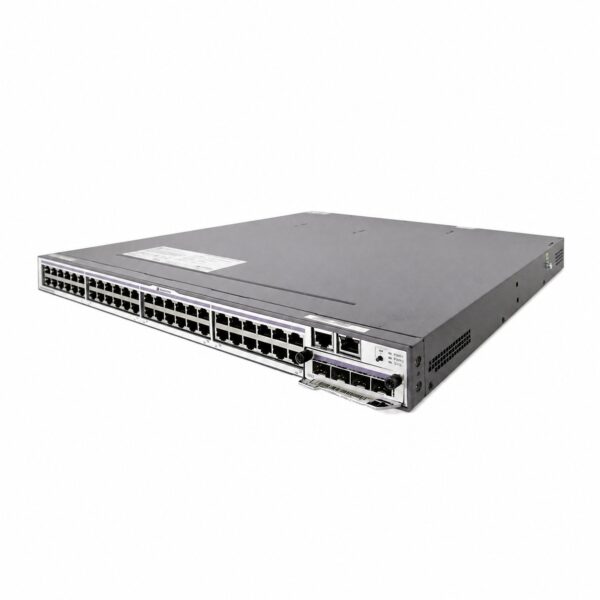

The Huawei S5700-52C-EI is an enterprise-grade Layer 3 Gigabit Ethernet switch designed for network access and aggregation scenarios. It is part of Huawei’s S5700-EI series of enhanced Gigabit Ethernet switches, built on next-generation high-performance hardware and Huawei’s unified Versatile Routing Platform (VRP) software.

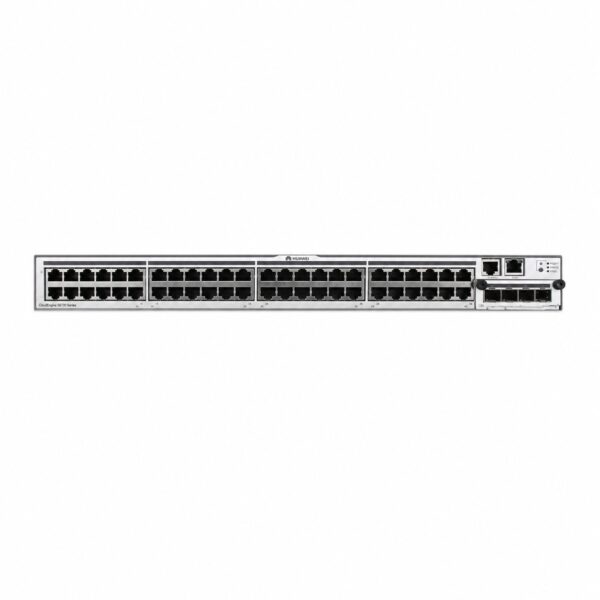

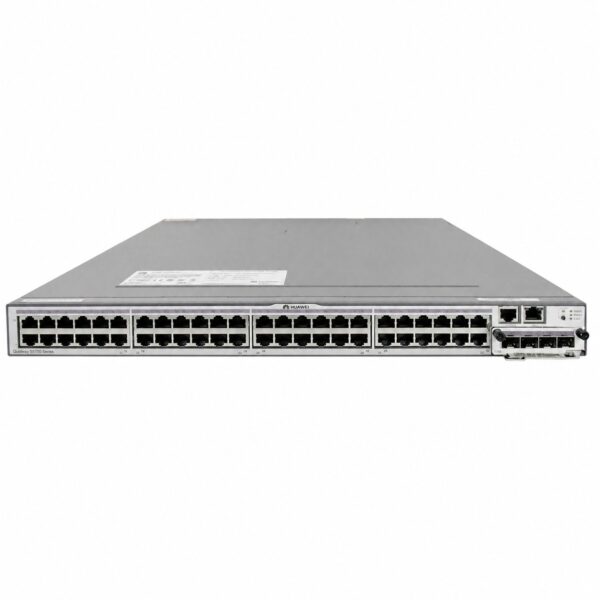

The switch features 48 fixed 10/100/1000BASE-T ports with flexible uplink expansion options, supporting 4×1000BASE-X SFP, 2×10GE SFP+, or 4×10GE SFP+ interface cards. With a switching capacity of 256 Gbps and a forwarding rate of 132 Mpps, the S5700-52C-EI delivers robust performance for high-density Gigabit connectivity.

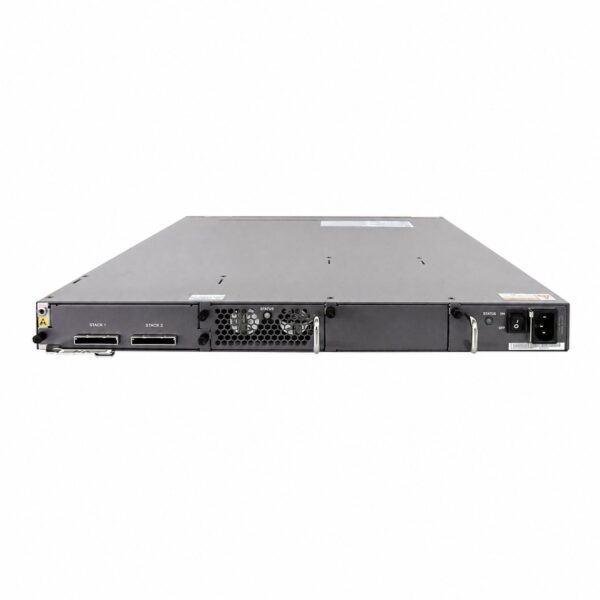

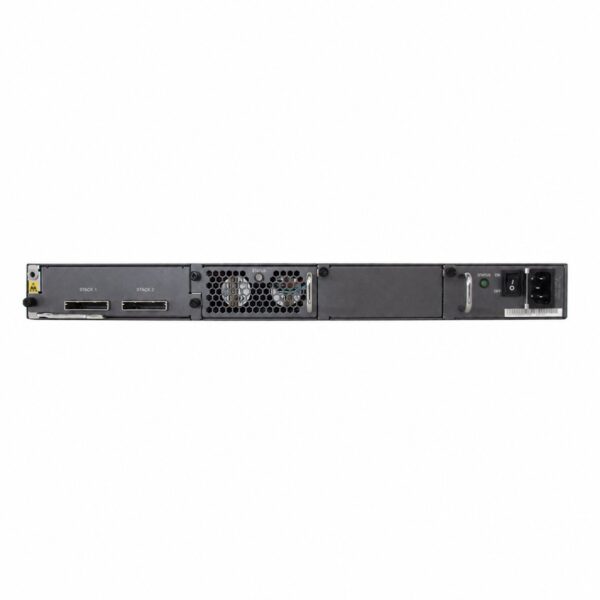

The 1U rack-mountable chassis supports dual hot-swappable power modules with both AC and DC power options, providing enhanced reliability for business-critical deployments. The switch supports intelligent iStack stacking technology, comprehensive Layer 2/Layer 3 switching capabilities, advanced QoS features, and mature IPv6 support. It is well-suited for enterprise campus access, IDC Gigabit access, and Gigabit-to-desktop applications.

Technical Specifications

Category	Specification
General
Model	S5700-52C-EI
Product Type	Gigabit Ethernet Switch
Application Layer	Layer 3
Switching Capacity	256 Gbps
Forwarding Rate	132 Mpps
Switching Mode	Store-and-Forward
MAC Address Table Size	32K
Ports & Interfaces
Fixed Ports	48 × 10/100/1000BASE-T ports
Extension Slots	2 expansion slots
Uplink Options	4×1000BASE-X SFP, 2×10GE SFP+, or 4×10GE SFP+ interface cards
Console Port	1 console port
Management Port	1 ETH management port
Performance
Flash Memory	32 MB
RAM / DDR Memory	256 MB
VLANs	Supports up to 4K VLANs
Network Standards & Protocols
Ethernet Standards	IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1Q, 802.1d, 802.1X
Spanning Tree	STP, RSTP, MSTP
Ring Protection	SEP (Smart Ethernet Protection), ERPS with 50ms failover
Multicast	IGMP v1/v2/v3 Snooping, PIM-SM, PIM-DM, PIM-SSM
QoS Features
Traffic Policing	Dual-rate three-color CAR
Queues per Port	8 queues
Queue Scheduling	WRR, DRR, SP, WRR+SP, DRR+SP
Packet Filtering	L2–L4 packet filtering based on source/destination MAC, source/destination IP, port, protocol, VLAN
Management
Management Methods	SNMP v1/v2/v3, RMON, Telnet, WEB management, HGMP cluster management
Stacking	Intelligent iStack stacking supported
Port Mirroring	Port mirroring and RSPAN (Remote Port Mirroring)
Security
Security Features	User分级 management and password protection; Anti-DoS, ARP attack, ICMP attack protection; IP+MAC+port+VLAN binding; Port isolation, port security, Sticky MAC; Blackhole MAC addresses; MAC address learning limitation
Authentication	IEEE 802.1X authentication, AAA authentication, RADIUS, TACACS+, NAC
Secure Management	SSH V2.0, HTTPS
Power
Power Supply	Dual hot-swappable power module slots
Rated Voltage Range	100 V AC to 240 V AC, 50/60 Hz; -48 V DC to -60 V DC
Maximum Voltage Range	90 V AC to 264 V AC, 47 Hz to 63 Hz; -36 V DC to -72 V DC
Maximum Power Consumption	88 W
Power Surge Protection	AC modules: 6 kV differential mode, 6 kV common mode; DC modules: 1 kV differential mode, 2 kV common mode
Physical Specifications
Dimensions (H × W × D)	43.6 mm × 442.0 mm × 420.0 mm (1.72 in × 17.4 in × 16.5 in)
Weight	—
Chassis Type	1U rack-mountable
Port Structure	Non-modular
Environmental
Operating Temperature	0°C to 50°C (32°F to 122°F)
Relative Humidity	5% to 95%, non-condensing
Operating Altitude (AC)	0–5000 m (0–16404 ft)
Operating Altitude (DC)	0–2000 m (0–6562 ft)
Noise (27°C, sound power)	< 41 dB(A)
