Huawei S5700-24TP-SI-DC – Product Documentation

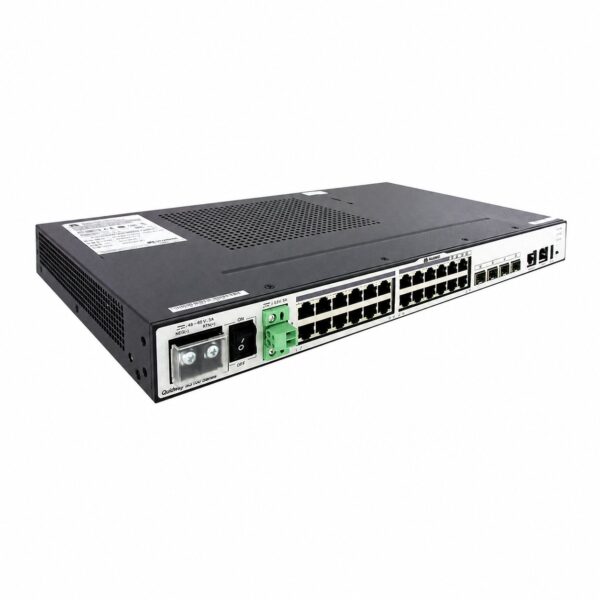

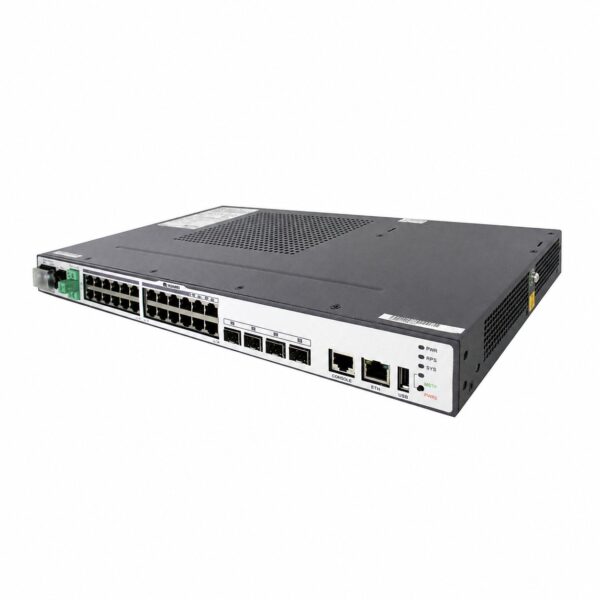

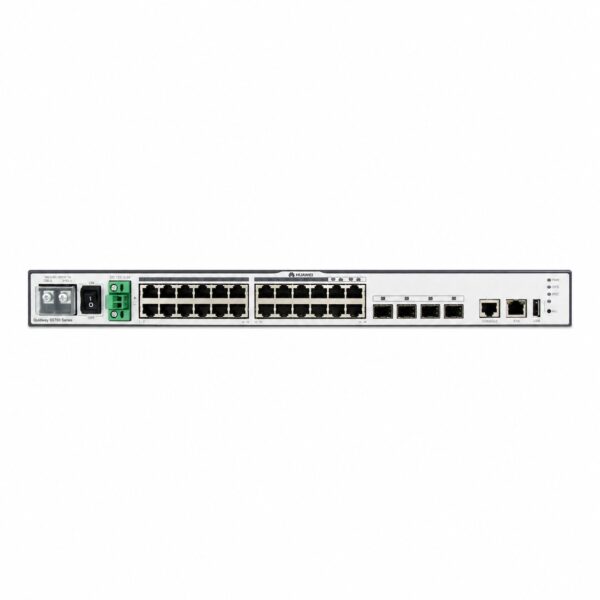

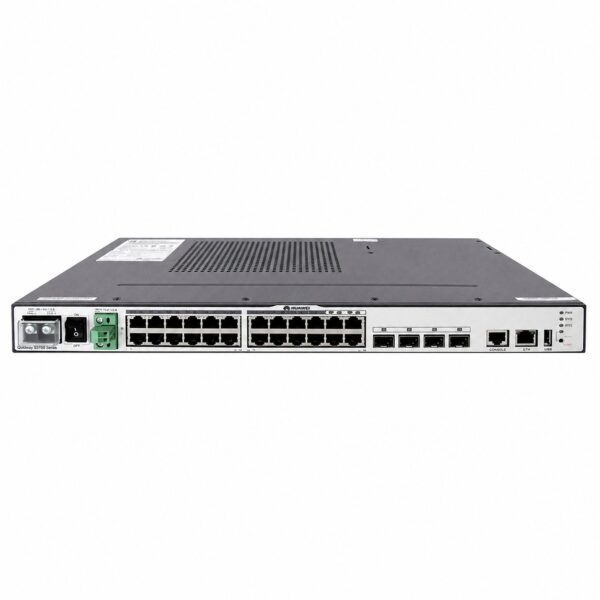

Name: Huawei S5700-24TP-SI-DC Switch - SunSpike
SKU: S5700-24TP-SI-DC

Product Overview

The Huawei S5700-24TP-SI-DC is a gigabit Layer 3 Ethernet switch designed for enterprise-level network deployments, particularly suited for medium-density access scenarios in medium-sized enterprise networks. It is part of the Huawei S5700 series and operates on DC power supply.

Built on Huawei’s next-generation high-performance hardware and the Versatile Routing Platform (VRP), the switch delivers a large switching capacity, high-density Gigabit Ethernet interfaces, and 10GE uplink capabilities. The S5700-SI series integrates advanced technologies in reliability, security, and energy efficiency, with simple installation and maintenance procedures designed to reduce operational and administrative costs.

The switch supports intelligent stacking (iStack), allowing multiple S5700-SI units to be interconnected via stack cables to function as a single virtual switch. A stack consists of a master switch, a backup switch, and several slave switches; the backup switch automatically takes over services in the event of master switch failure, minimizing service interruption. Stacks also support intelligent upgrade, eliminating the need to change software versions when adding new switches to the stack.

With its extensive service feature set and IPv6 forwarding capabilities, the S5700-24TP-SI-DC is applicable in a variety of scenarios, including campus network access or aggregation layers, and data center access deployments.

Technical Specifications

Item	Description
Model	S5700-24TP-SI-DC
Part Number	02352343
Product Type	Gigabit Ethernet Switch
Application Layer	Layer 3
Switching Capacity	256 Gbps
Forwarding Performance	36 Mpps
Switching Mode	Store-and-forward
MAC Address Table	16K
Ports	24 × Ethernet 10/100/1000 ports, 4 of which are dual-purpose 10/100/1000BASE-T or 100/1000BASE-X SFP combo ports
Console Port	1 × console port
Management Port	1 × ETH management port
USB Port	1 × USB port
Extended Slot	1 × rear card slot for stack card
Stack Ports	2 × stack ports available on each stack card
Memory (RAM)	256 MB
Flash Memory	32 MB
Rated Voltage Range	-48 V DC to -60 V DC
Maximum Voltage Range	-36 V DC to -72 V DC
Maximum Power Consumption	40 W (100% throughput, full fan speed)
Backup Power Socket	Supported (requires backup power supply providing 12 V DC, 11 V to 13 V, minimum 100 W)
RPS (Redundant Power System)	Not supported
PoE	Not supported
Dimensions (H × W × D)	43.6 mm × 442.0 mm × 220.0 mm (1.72 in × 17.4 in × 8.7 in)
Weight (Empty)	≤ 5 kg (11.02 lb)
Weight (Fully Configured)	≤ 8.5 kg (18.74 lb)
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-40°C to +70°C (-40°F to +158°F)
Relative Humidity	5% to 95%, noncondensing
Operating Altitude	0 – 2000 m (0 – 6562 ft)
Noise (27°C, sound power)	Silent
Service Port Surge Protection	±2 kV (common mode)
Power Supply Surge Protection	±1 kV (differential mode), ±2 kV (common mode)
VLAN	4K VLANs; supports Guest VLAN, voice VLAN, VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports; 1:1 and N:1 VLAN mapping
IP Routing	Static routing, ECMP, RIPv1, RIPv2, and RIPng
IPv6 Features	Neighbor Discovery (ND), Path MTU (PMTU), IPv6 ping/tracert/Telnet, ACLs based on source/destination IPv6 address, Layer 4 ports, or protocol type; MLD v1/v2 snooping; 6to4 tunnel, ISATAP tunnel, manually configured tunnel
Multicast	IGMP v1/v2/v3 snooping, IGMP fast leave, multicast forwarding in VLAN, multicast replication between VLANs, multicast load balancing among trunk member ports, controllable multicast, port-based multicast traffic statistics
Reliability	RRPP ring topology and RRPP multi-instance; Smart Link tree topology and Smart Link multi-instance (millisecond-level protection switchover); SEP; E-Trunk; STP, RSTP, and MSTP; BPDU protection, root protection, and loop protection
QoS/ACL	Rate limiting on packets sent
Network Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
Network Management	Supports stacking, MFF, virtual cable test, Telnet, SNMP v1/v2/v3, RMON, web-based network management, HGMP cluster management, system logs, and hierarchical alarms
