Huawei S2720-12TP-EI-AC – Product Documentation & Specifications

Name: Huawei S2720-12TP-EI-AC Switch - SunSpike
SKU: S2720-12TP-EI-AC

Product Overview

The Huawei S2720-12TP-EI is a next-generation access switch that belongs to the S2720-EI series of enterprise switches. Independently developed by Huawei, this high-performance access switch offers flexible combinations of Fast Ethernet and Gigabit Ethernet access ports along with Gigabit uplink ports.

Built on next-generation high-performance hardware and powered by Huawei’s unified VRP (Versatile Routing Platform) software, the S2720-12TP-EI supports intelligent iStack stacking, flexible Ethernet networking, and diverse security controls. It supports multiple Layer 3 routing protocols, delivering higher performance and richer service processing capabilities.

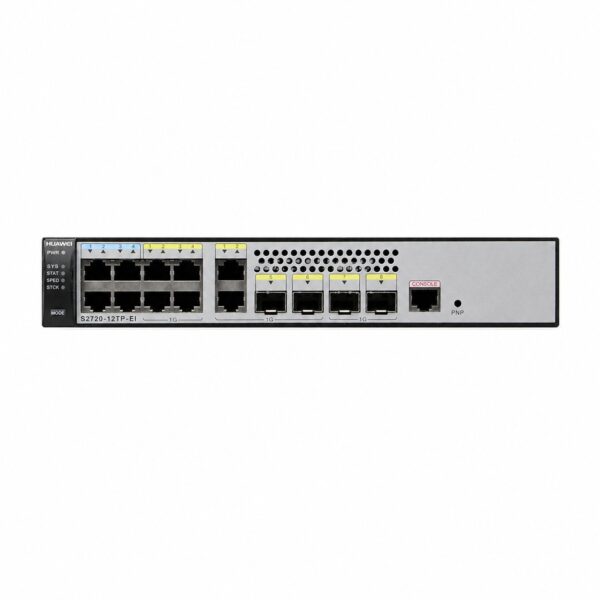

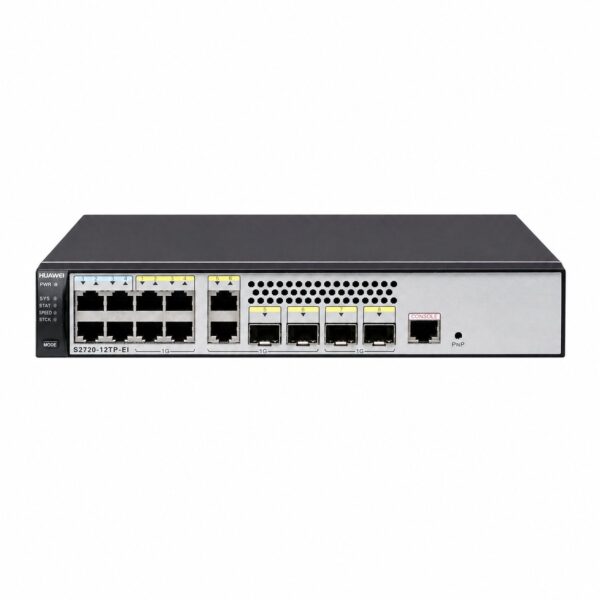

The switch is equipped with four 10/100BASE-TX ports, four 10/100/1000BASE-T ports, two combo ports (10/100/1000BASE-T + 100/1000BASE-X), and two 1000BASE-X SFP ports. With a switching capacity of 128 Gbps and a forwarding rate of 12.6 Mpps, it is widely deployed in enterprise campus access scenarios, Fast Ethernet-to-desktop with Gigabit uplink applications, and various other use cases.

The S2720-12TP-EI supports intelligent stacking (iStack) technology, which combines multiple physical switches into a single logical device. Member switches in a stack implement redundancy backup to improve device reliability and use inter-device link aggregation to enhance link reliability. iStack also simplifies device configuration and management – after a stack is set up, you can log in to any member switch in the stack to manage all member switches.

Documentation & Resources List

Document / Resource	Description
S2700 Series Switches Hardware Description	Official Huawei hardware documentation covering appearance, structure, port descriptions, and hardware specifications for the S2720-12TP-EI
S2720-EI Series Enterprise Switches Datasheet	Product datasheet detailing features, capabilities, and technical specifications of the S2720-EI series
S2720-EI Series Product Brochure	Comprehensive product overview covering the full S2720-EI series lineup, including model variants, product features, and application scenarios
S2720-12TP-EI Specifications Sheet	Detailed specification document covering all technical parameters, port configurations, and physical characteristics
Huawei Enterprise Support Portal	Official support documentation, including version mapping, port attribute tables, and compatibility information

Technical Specifications

Category	Specification
Model	S2720-12TP-EI
Part Number	98010731
Product Type	Enterprise-class switch, Layer 3
Switching Capacity	128 Gbps
Packet Forwarding Rate	12.6 Mpps
MAC Address Table	16K
Switching Method	Store-and-forward

Ports & Interfaces	Specification
10/100BASE-TX Ports	4 ports
10/100/1000BASE-T Ports	4 ports
Combo Ports	2 combo ports (10/100/1000BASE-T + 100/1000BASE-X)
1000BASE-X SFP Ports	2 ports
Console Port	1 console port
Stack Ports	Two 1000BASE-X ports

Memory & Performance	Specification
RAM	512 MB
Flash Memory	512 MB total
MTBF	23.8 years
MTTR	2 hours
Availability	> 0.99999

Power Specifications	Specification

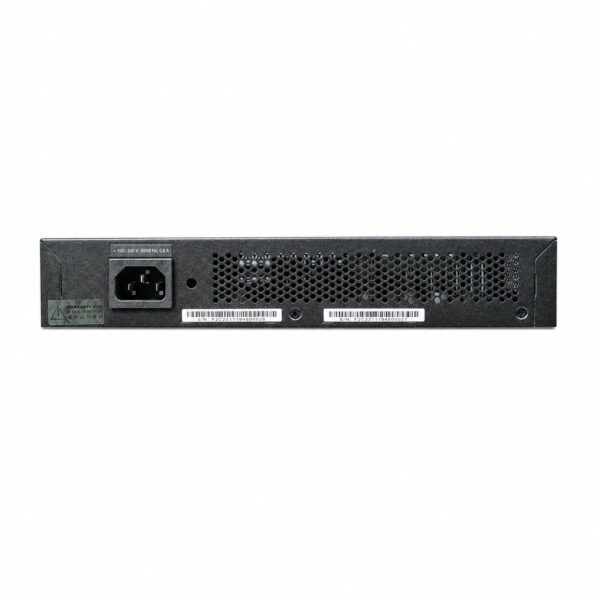

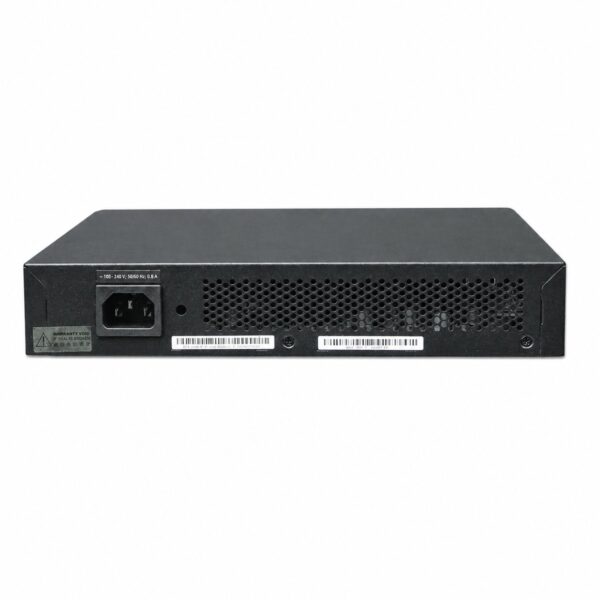

Power Supply Type	Fixed AC power supply
Rated Voltage Range	100 V AC to 240 V AC, 50/60 Hz
Maximum Voltage Range	90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum Power Consumption (100% throughput)	12.85 W
Typical Power Consumption (30% traffic load)	10.39 W
PoE Support	Not supported
RPS Support	Not supported
RTC Support	Not supported

Physical Specifications	Specification
Dimensions (H × W × D) – Basic	43.6 mm × 250.0 mm × 180.0 mm (1.72 in. × 9.8 in. × 7.1 in.)
Dimensions (H × W × D) – Maximum	43.6 mm × 250.0 mm × 186.7 mm (1.72 in. × 9.8 in. × 7.35 in.)
Weight (including package)	1.8 kg (3.97 lb)
Cooling	Fanless – noise-free operation

Environmental Specifications	Specification
Operating Temperature	0°C to 45°C (32°F to 113°F) at 0–1800 m altitude
Storage Temperature	–40°C to +70°C (–40°F to +158°F)
Relative Humidity	5% to 95%, non-condensing
Service Port Surge Protection	Common mode: ±7 kV
Power Supply Surge Protection	±6 kV differential mode, ±6 kV common mode

Management & Features	Specification
Management	Supports MFF, Telnet remote configuration, Virtual Cable Test, Ethernet OAM, port mirroring and RSPAN, SNMPv1/v2/v3, RMON, MUX VLAN, GVRP
Network Management	iManager network management system, WEB management, automatic configuration, cluster management HGMP, SSH V2, system logs, hierarchical alarms
Stacking	Intelligent iStack stacking support
