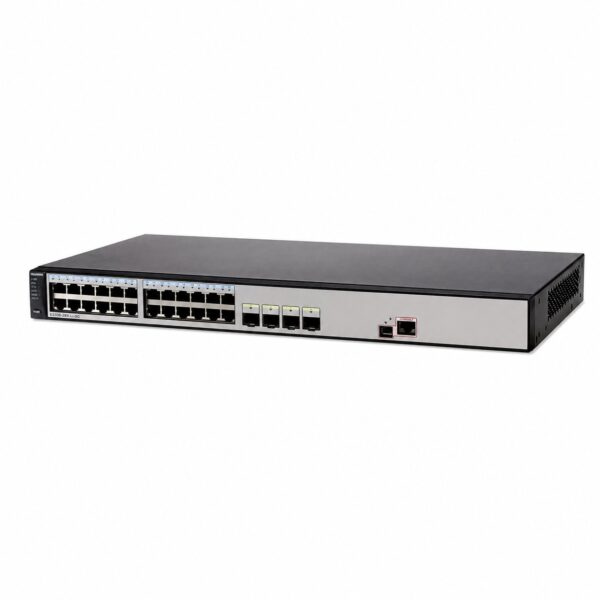

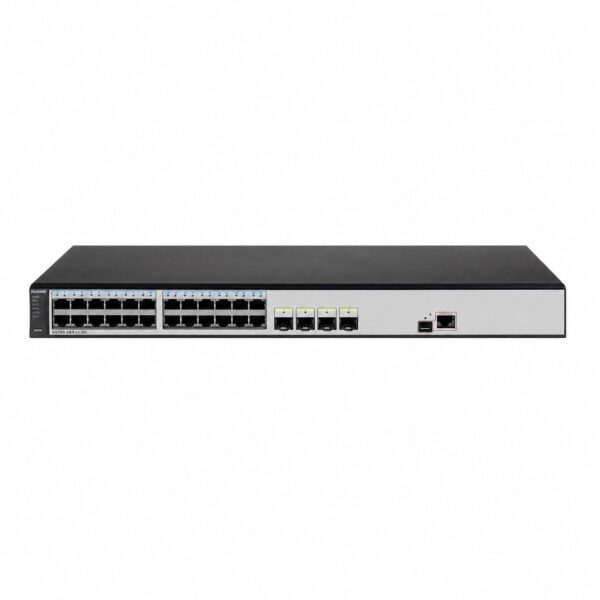

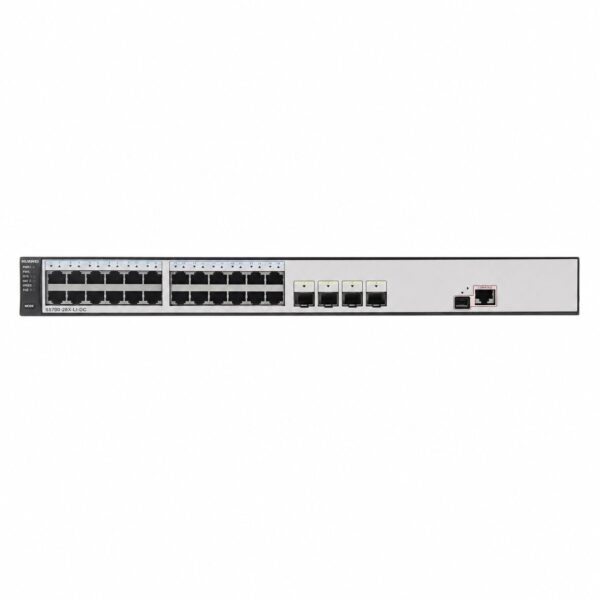

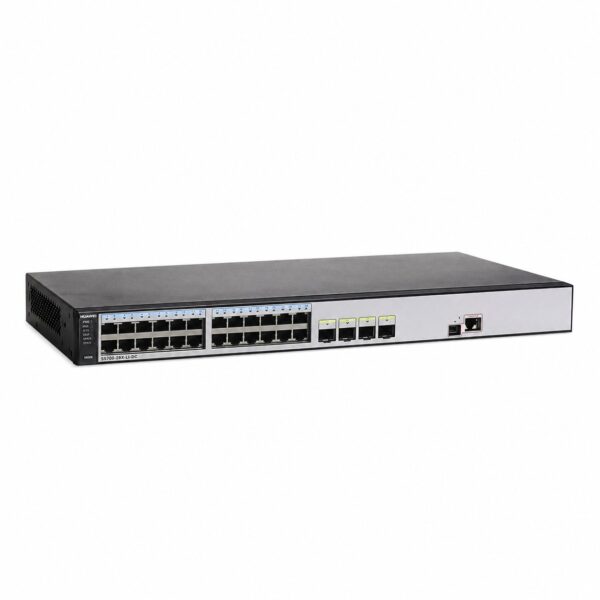

Huawei S5700-28X-LI-DC Switch – Product Information

Name: Huawei S5700-28X-LI-DC Switch - SunSpike
SKU: S5700-28X-LI-DC

Product Overview

The Huawei S5700-28X-LI-DC is a high-performance, enterprise-grade Layer 2 Gigabit Ethernet switch from the S5700-LI series. Designed for中型 to large enterprise networks, data centers, and service provider environments, this switch delivers robust network connectivity with 24 Gigabit Ethernet ports and 4 10-Gigabit SFP+ uplink ports for superior bandwidth and scalability.

The switch features a compact, non-modular chassis design that maximizes port density while minimizing rack space consumption. It is powered by a DC power supply rated at -48 V DC to -60 V DC, making it particularly suitable for telecom environments and centralized power distribution systems. The device supports store-and-forward switching and offers advanced Layer 2 switching capabilities.

Key capabilities include comprehensive VLAN support (up to 4K VLANs), robust Quality of Service (QoS) features with multiple queue scheduling algorithms, and extensive security protocols including AAA authentication, 802.1X, SSH V2.0, and CPU protection. The switch also supports advanced network management features such as SNMPv1/v2/v3, web-based management, automatic configuration, HTTPS, and system logging. Energy efficiency is enhanced with support for IEEE 802.3az Energy-Efficient Ethernet (EEE).

With its combination of high port density, 10GE uplink capabilities, DC power input, and comprehensive feature set, the S5700-28X-LI-DC is an ideal solution for mission-critical network environments requiring high-speed connectivity, redundancy, and future-proof performance.

Technical Specifications

Category	Specification
General
Product Model	S5700-28X-LI-DC
Product Type	Enterprise-class switch
Application Layer	Layer 2
Switching Method	Store-and-forward
Port Structure	Non-modular
Ports & Interfaces
Total Ports	28
Fixed Ports	24 × 10/100/1000BASE-T Ethernet electrical ports
Uplink Ports	4 × 10GE SFP+ ports (auto-sensing to 1000 Mbit/s)
Console Port	1 × console port
USB Port	1 × mini USB port
Power Specifications
Power Supply Type	DC power
Rated Voltage Range	-48 V DC to -60 V DC
Maximum Voltage Range	-36 V DC to -72 V DC
Maximum Power Consumption	42 W
RPS Socket	Supported (RPS cable not hot swappable)
Power Supply Surge Protection	1 kV differential mode, 2 kV common mode
Physical Specifications
Dimensions (W × D × H)	442.0 mm × 220.0 mm × 43.6 mm (17.4 in. × 8.7 in. × 1.72 in.)
Weight	3.3 kg (7.28 lb)
Environmental Specifications
Operating Temperature	0°C to 50°C (32°F to 122°F) at 0–1800 m altitude
Operating Temperature (High Altitude)	At 1800–5000 m, max temperature decreases by 1°C per 220 m altitude increase
Operating Humidity	5% to 95% RH, non-condensing
Operating Altitude	0–2000 m (0–6562 ft.)
Noise Level (27°C, sound power)	< 44.9 dB(A)
Memory & Storage
Flash Memory	200 MB
Memory (RAM)	256 MB
MAC Address Table Size	16 K
Performance
Switching Capacity	256 Gbps
Forwarding Performance	42 Mpps
VLAN
VLAN Support	Up to 4K VLANs
VLAN Types	Guest VLAN, Voice VLAN, MAC-based VLAN, protocol-based VLAN, IP-subnet-based VLAN, policy-based VLAN, SuperVLAN
QoS
Queue Scheduling	WRR, DRR, SP, WRR+SP, DRR+SP
Traffic Policing	Dual-rate three-color CAR
Queue Depth	8 queues per port
Security
Authentication	IEEE 802.1X, AAA, RADIUS, HWTACACS, NAC
Secure Management	SSH V2.0, HTTPS
Protection Features	CPU protection, DOS/ARP/ICMP attack prevention
Port Security	Port isolation, port security, Sticky MAC
MAC Security	Blackhole MAC addresses, MAC address learning limit
Management
Network Management	SNMPv1/v2/v3, eSight, web-based management
Features	Automatic configuration, virtual cable test, MFF, GVRP, MUX VLAN
