HUAWEI S2750-28TP-PWR-EI-AC – Product Information

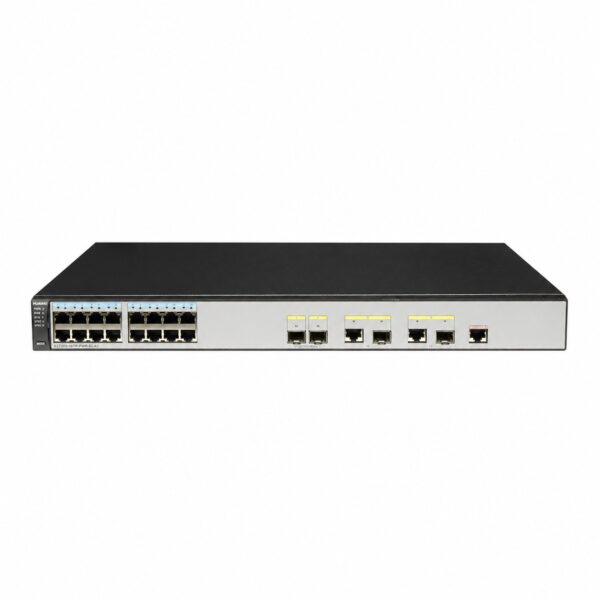

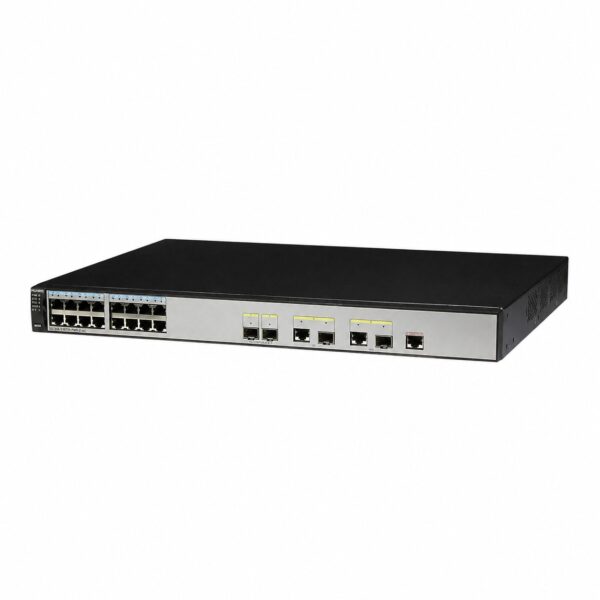

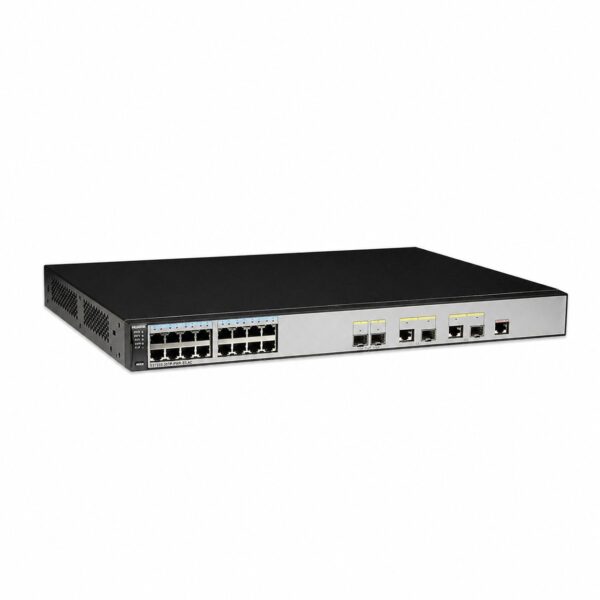

Name: HUAWEI S2750-28TP-PWR-EI-AC Switch - SunSpike
SKU: S2750-28TP-PWR-EI-AC

Product Overview

The HUAWEI S2750-28TP-PWR-EI-AC is an enterprise-grade Layer 2 Ethernet switch designed primarily for small to medium-sized office networks and campus access scenarios. Housed in a 1U standard rack-mountable chassis, this switch delivers a switching capacity of 64 Gbps and a forwarding rate of 14.1 Mpps.

The device features 24 × 10/100 Mbps PoE+ ports that can simultaneously supply power to terminal devices such as wireless APs and IP phones, alongside 4 Gigabit uplink ports for flexible network expansion. It supports up to 4K VLANs and maintains a 16K MAC address table.

Built with enhanced reliability in mind, the S2750-28TP-PWR-EI-AC incorporates built-in 7KV surge protection technology to effectively defend against induced lightning overvoltage. It supports 802.1X authentication and MAC address authentication, with dynamic or static binding of user identification elements including IP, MAC, VLAN, and port, as well as dynamic provisioning of user policies (VLAN, ACL).

The switch integrates Huawei’s intelligent stacking iStack technology, which enhances switching capacity, reliability, and scalability—stacked logical systems share a single IP address with unified configuration management, significantly reducing O&M costs. Additionally, Huawei Easy Operation enables simplified installation, configuration, monitoring, and fault handling, substantially lowering initial deployment and configuration expenses.

The device supports a wide operating temperature range of –5°C to 50°C and measures 442 × 310 × 43.6 mm, with a weight of approximately 4.5 kg.

Detailed Specifications

Category	Specification
Model	S2750-28TP-PWR-EI-AC
Product Type	Enterprise-grade / Intelligent Switch
Application Scope	Small to Medium-sized Enterprises (SMEs)
Switching Capacity	64 Gbps
Backplane Bandwidth	32 Gbps
Forwarding Rate	14.1 Mpps
Forwarding Performance	9.6 Mpps
Switching Mode	Store-and-Forward
MAC Address Table Size	16K
Ports	28 ports total
Downlink Ports	24 × 10/100BASE-TX PoE+ ports
Uplink Ports	2 × 1000BASE-X SFP ports + 2 × combo ports (10/100/1000BASE-T + 100/1000BASE-X)
Console Port	1 × console port
PoE Support	Yes (PoE+)
PoE Power Budget	< 370W
VLAN Support	4K VLANs, IEEE 802.1Q compliant; port-based VLAN; MAC address-based VLAN; port-based QinQ
QoS	Port-based rate limiting; 8 priority queues per port; 802.1p mapping; SP, WRR, and SP+WRR algorithms; packet priority marking and redirection
Multicast Management	Multicast VLAN; controllable multicast; IGMP v1/v2/v3 Snooping; port-based multicast rate limiting
Reliability	STP (IEEE 802.1d), RSTP (IEEE 802.1w), MSTP (IEEE 802.1s); RRPP topology and multi-instance; SEP and ERPS (G.8032); Smart Link
Traffic Sampling	sFlow
Security & Access Control	802.1X authentication; MAC authentication; MAC bypass authentication; limit on max users per port; storm suppression; IP Source Guard; AAA authentication (RADIUS, HWTACACS+); DHCP Snooping; port isolation; Sticky MAC; MAC address filtering; multicast/broadcast/unknown unicast suppression; CPU protection; DHCP relay
IPv6 Features	IPv6 protocol; static IPv6 routes; MLD v1/v2 snooping
Management	Auto-configuration; CLI configuration; Telnet remote configuration; SNMP V1/V2/V3; RMON; cluster management (HGMP V2); SSH V2; WEB-based management; GVRP protocol
Stacking	Intelligent Stack (iStack) support
Surge Protection	Service port surge protection: 7KV
Power Supply	AC 100–240V, 50/60Hz
Maximum Voltage Range	90–264V AC, 50/60Hz
Maximum Power Consumption	< 445W (PoE < 370W)
Heat Dissipation	Natural heat dissipation
Dimensions (W × D × H)	442 × 310 × 43.6 mm (1U)
Weight	< 4.5 kg
Long-term Operating Temperature	–5°C to 50°C
Relative Humidity	10% – 90% (non-condensing)
