Huawei S1720X-32XWR-E-AC Switch – Product Documentation

Name: Huawei S1720X-32XWR-E-AC Switch - SunSpike
SKU: S1720X-32XWR-E-AC

Product Overview

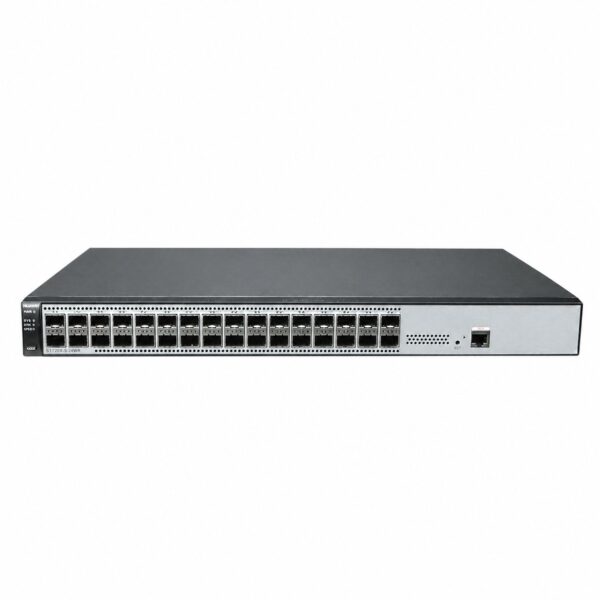

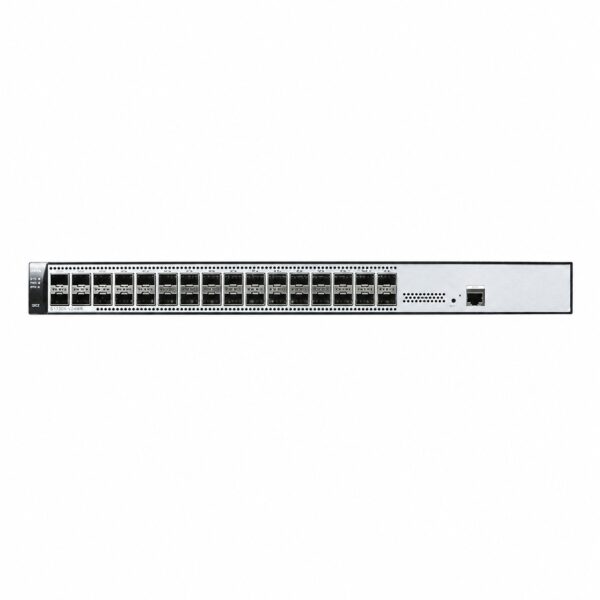

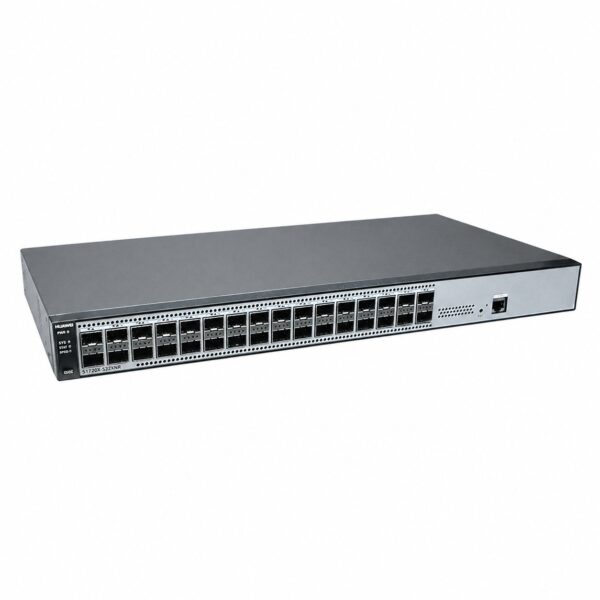

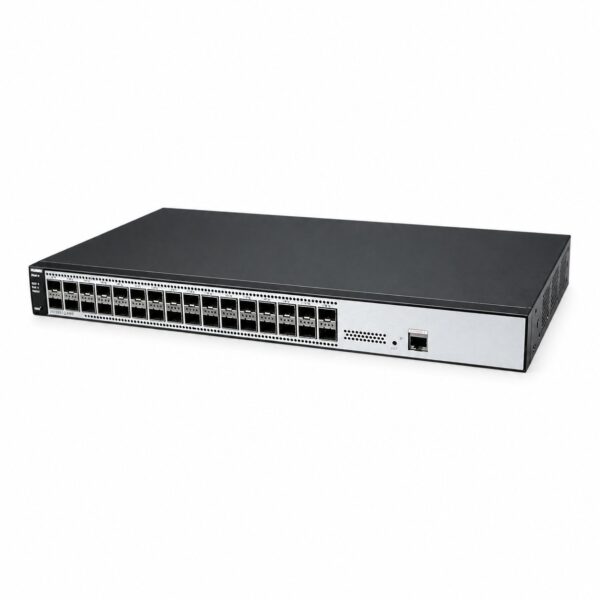

The Huawei S1720X-32XWR-E-AC is a high-performance Layer 3 managed Ethernet switch from the Huawei S1700 series, designed for deployment at the access layer of enterprise networks. The switch delivers cost-effective packet switching capability with 32 x 10GE SFP+ ports, providing multi-service access capabilities, excellent extensibility, Quality of Service (QoS) guarantee, powerful multicast replication, and carrier-class security.

The S1720X-32XWR-E-AC features a fixed AC power supply and a non-modular port structure. With a switching capacity of 680 Gbps and a forwarding performance of 252 Mpps, it is well-suited for scenarios such as 10GE access to enterprise networks and 10GE-to-desktop deployments, helping build future-oriented IT networks for businesses.

The switch is equipped with three built-in fans for forced air cooling, with airflow entering from the left side and front panel and exhausting from the right side. It supports a wide range of advanced features including VLAN, QoS, STP/RSTP/MSTP, IPv4 and IPv6 static routing, link aggregation, port mirroring, and comprehensive security mechanisms.

Technical Specifications

Category	Specification
General
Product Model	S1720X-32XWR-E-AC
Product Type	Managed Switch
Application Layer	Layer 3
Transmission Rate	10000 Mbps
Port Structure	Non-modular
Ports
Fixed Ports	32 x 10GE SFP+
Management Port	1 x ETH management port
Performance
Switching Capacity	680 Gbit/s
Forwarding Performance	252 Mpps
MAC Address Table	32K
Memory
RAM	1 GB
Flash Memory	512 MB total, 240 MB available for users
Power Supply
Power Supply Type	Built-in fixed AC power module (not pluggable)
Rated Voltage Range	100 V AC to 240 V AC, 50/60 Hz
Maximum Voltage Range	90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum Power Consumption	< 103.6 W
Physical Specifications
Dimensions (W x D x H)	420 × 220 × 43.6 mm (16.5 × 8.7 × 1.7 in)
