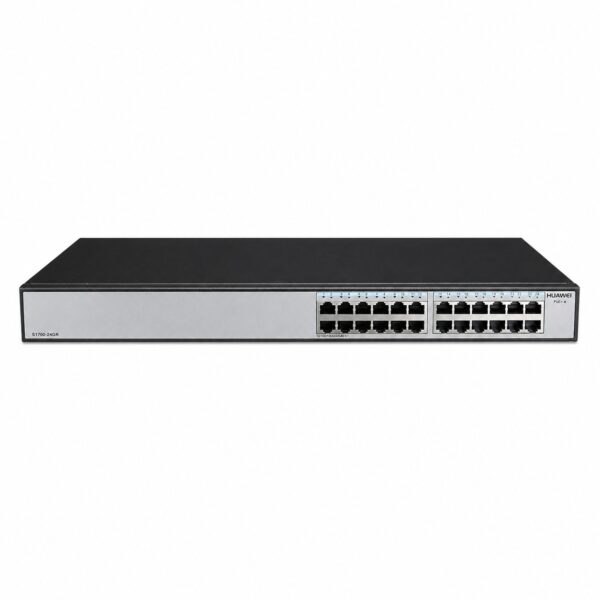

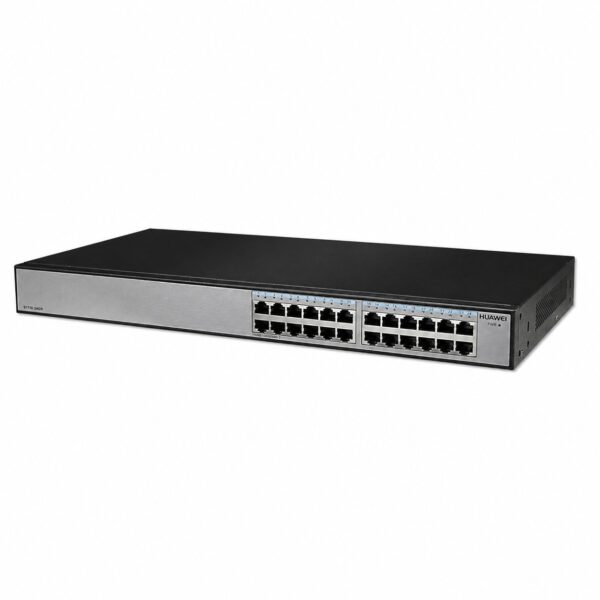

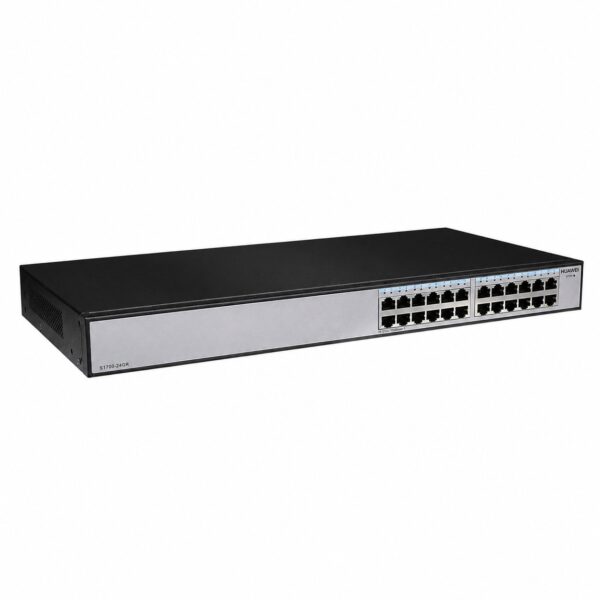

Huawei S1700-24GR-AC Switch – Full Product Description

Product Overview

The Huawei S1700-24GR-AC is a next-generation energy-saving Ethernet access switch from Huawei’s S1700 series enterprise switches. It is an unmanaged switch designed for simple plug-and-play operation, requiring no configuration—users only need to connect the power cord and network cables to establish network connectivity. The S1700-24GR-AC is ideal for small to medium-sized enterprises, Internet cafes, hotels, schools, and other scenarios requiring reliable, high-performance network access.

The switch uses high-performance hardware and offers a wide array of features to help customers build secure, reliable, and high-performance networks. It is easy to install and maintain, and can be rack-mounted for flexible deployment.

---

Key Features

Innovative Energy-Saving Design

• The S1700-24GR-AC is based on a fan-free design, which reduces power consumption and eliminates noise. The device operates silently, making it suitable for noise-sensitive environments such as offices and classrooms.

• Supports Energy Efficient Ethernet (IEEE 802.3az), enabling the switch to enter a power-saving mode when traffic is light.

• Automatically adjusts power output for transmissions based on cable length and puts any ports that are not transmitting traffic into sleep mode.

• Maximum power consumption is only 14.2W under 100% throughput.

Non-Blocking High-Speed Forwarding

• All 24 ports provide Layer 2 wire-speed forwarding capabilities to ensure non-blocking packet forwarding.

• Switching capacity: 48 Gbit/s

• Forwarding performance: 36 Mpps

• MAC address table supports up to 8K MAC addresses, making it easy to expand networks and deploy new services.

High Port Density

• Provides 24 x 10/100/1000BASE-T Gigabit Ethernet ports for high-density user access.

• Fixed port configuration with non-modular structure.

• All ports support auto-negotiation for 10/100/1000 Mbps transmission rates.

Simple Maintenance & Plug-and-Play

• Unmanaged switch – no configuration required.

• Features a “one-button operation” design for simplified maintenance.

• Supports port-based traffic statistics and IP network fault detection and positioning.

Wide Range of Supported Standards

Complies with multiple IEEE standards, including:

• IEEE 802.3, 802.3u, 802.3x (Ethernet, Fast Ethernet, Flow Control)

• IEEE 802.3Q, 802.3p (VLAN tagging, Priority)

• IEEE 802.3D, 802.3s, 802.3w (STP, MSTP, RSTP)

• IEEE 802.3ad (Link Aggregation)

• IEEE 802.3z (Gigabit Ethernet)

---

Technical Specifications
