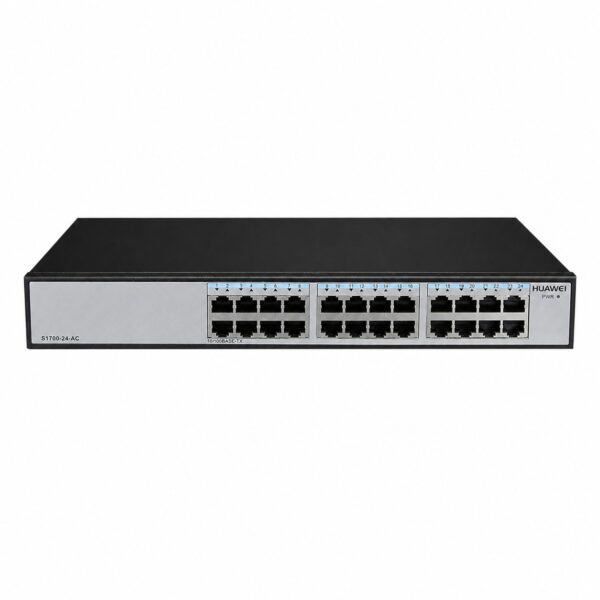

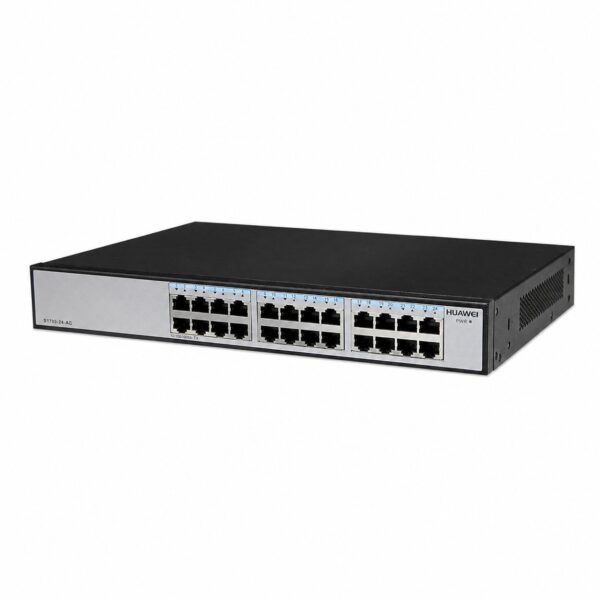

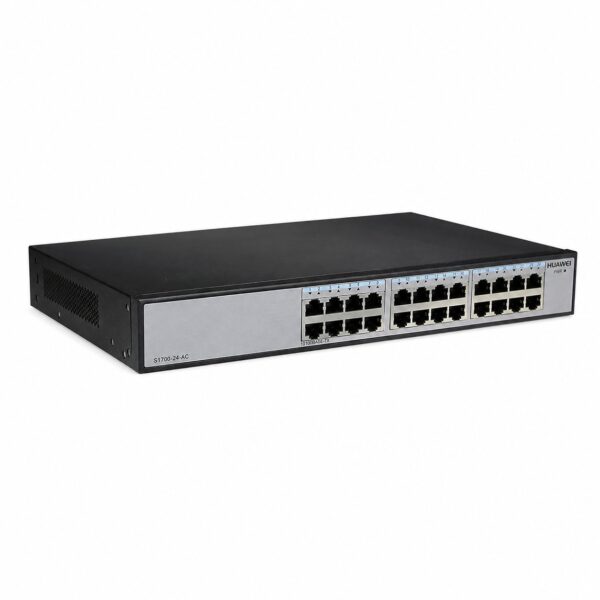

Huawei S1700-24-AC Switch – Full Product Introduction

Product Overview

The Huawei S1700-24-AC is an unmanaged Fast Ethernet switch developed by Huawei Technologies Co., Ltd. It is part of the Huawei S1700 series, which is designed for small to medium-sized businesses, Internet cafes, hotels, schools, and other similar environments. The switch is deployed at the access layer of an enterprise network to deliver cost-effective packet switching capability.

As an unmanaged switch, the S1700-24-AC is plug-and-play and does not require installation of any software. It does not support web-based or SNMP-based management, making it a zero-configuration solution that can be deployed instantly.

The S1700-24-AC helps enterprises construct reliable networks that have high scalability, providing high-quality data transmission for businesses.

Key Features

• 24 x 10/100 Mbps Ethernet Ports – The switch provides 24 Ethernet 10/100 ports for flexible connectivity of desktops, printers, IP cameras, and other network devices.

• Plug-and-Play Deployment – As an unmanaged switch, the S1700-24-AC requires no configuration. Users can simply connect devices and begin operating immediately.

• Non-Blocking Wire-Speed Forwarding – The switch provides Layer 2 wire-speed forwarding capabilities to ensure non-blocking packet forwarding on all ports.

• Energy-Saving and Fanless Design – The switch features a multi-dimensional energy-saving design that allows ports to enter a low-power idle state, greatly reducing power consumption. The fan-free design ensures silent operation (noise-free under normal temperature conditions).

• Security Support – The S1700 unmanaged switches support forwarding of 802.1X authentication packets.

• 8K MAC Address Table – The MAC address table supports up to 8,000 MAC addresses, making it easy to expand networks and deploy new services.

• 1U Rack-Mountable Chassis – Standard 19-inch rack-mountable form factor allows easy integration into network cabinets and wiring closets.

Technical Specifications
