HUAWEI S3700-28TP-EI-DC Switch – Product Information Sheet

Name: HUAWEI S3700-28TP-EI-DC Switch - SunSpike
SKU: S3700-28TP-EI-DC

Product Overview

The Huawei S3700-28TP-EI-DC is a next-generation Layer 3 enterprise Ethernet switch designed for high-performance access and aggregation in enterprise campus networks. As part of the S3700 Enhanced Edition (EI) series, this model supports IP multicasting and advanced routing protocols including Static Route, RIPv1, RIPv2, ECMP, OSPF, IS-IS, and BGP.

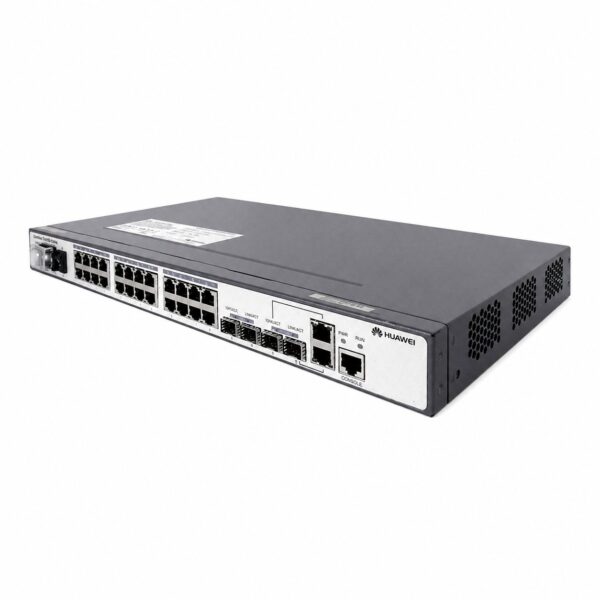

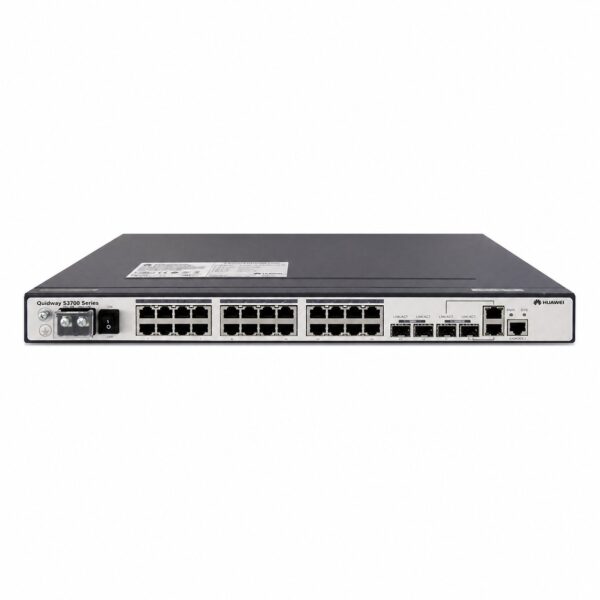

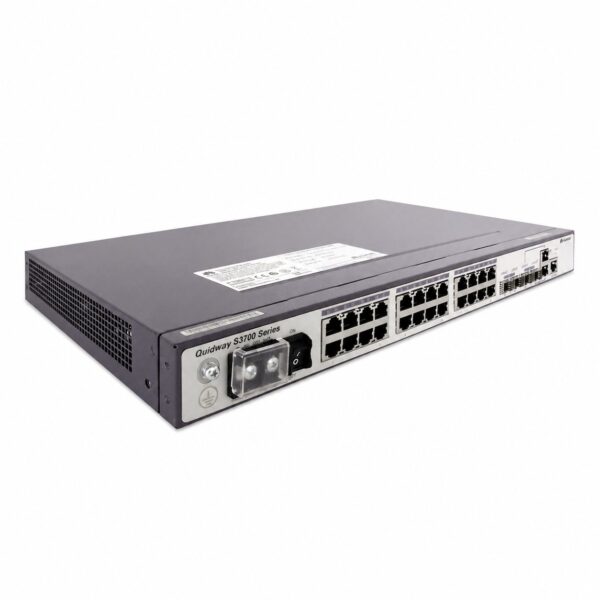

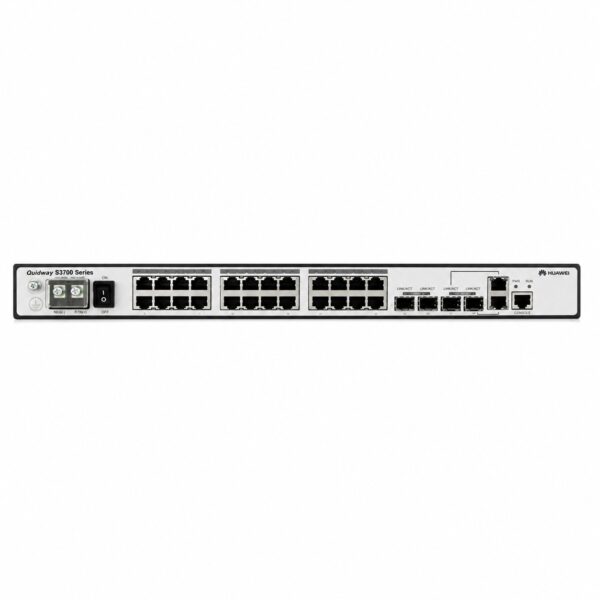

The switch is equipped with 24 Ethernet 10/100Base-TX ports, 2 1000Base-X SFP uplink ports, and 2 Gigabit Combo ports (10/100/1000Base-T or 100/1000Base-X). It is powered by a DC -48V to -60V power supply and features fan‑free natural heat dissipation for silent operation.

Built on Huawei’s Versatile Routing Platform (VRP) software, the S3700-28TP-EI-DC delivers a switching capacity of 64 Gbps and a forwarding performance of 9.6 Mpps. It supports flexible VLAN deployment, comprehensive QoS policies, robust security features, and IPv6 migration capabilities, making it an ideal solution for building next-generation IT networks. The switch also supports Huawei’s Intelligent Stack Technology (iStack), allowing multiple units to be stacked and managed as a single virtual switch.

With a compact 1U form factor measuring 442 × 220 × 43.6 mm and weighing less than 2.5 kg, the S3700-28TP-EI-DC is suitable for rack mounting, desk mounting, or wall mounting in 300-mm deep cabinets.

Product Specifications

Category	Specification
Model	S3700-28TP-EI-DC
Product Type	Enterprise-class switch
Application Layer	Layer 3
Switching Capacity	64 Gbps
Forwarding Performance	9.6 Mpps
Switching Mode	Store-and-forward
MAC Address Table	16K entries
Port Structure	Non-modular
Total Ports	28
Downlink Ports	24 × 10/100Base-TX ports
Uplink Ports	2 × 1000Base-X SFP ports
Combo Ports	2 × Gigabit Combo ports (10/100/1000Base-T or 100/1000Base-X)
VLAN Support	Supports up to 4K VLANs; Guest VLAN, Voice VLAN, Super VLAN; MAC/protocol/IP subnet-based VLAN; QinQ, flexible QinQ; 1:1 and N:1 VLAN switching
QoS Features	Port rate limiting; packet redirection; port-based traffic policing; dual-rate three-color CAR; 8 priority queues per port; WRR, DRR, SP, WRR+SP, DRR+SP queue scheduling; 802.1p and DSCP priority re-marking; L2–L4 packet filtering; queue-based rate limiting and port shaping
Multicast Management	1K multicast groups; IGMP v1/v2/v3 Snooping with fast-leave; multicast VLAN and cross-VLAN multicast replication; multicast load balancing across bundled ports; port-based multicast traffic statistics
Network Management	MFF; Telnet remote configuration; Virtual Cable Test; Ethernet OAM; port mirroring and RSPAN; SNMP v1/v2/v3; RMON; MUX VLAN; GVRP; iManager; web-based management; auto-configuration; HGMP cluster management; SSH V2; system logs and hierarchical alarms
Security Features	User分级 management and password protection; DoS, ARP, and ICMP attack prevention; IP/MAC/port/VLAN binding; port isolation, port security, Sticky MAC; blackhole MAC addresses; MAC address learning limit; IEEE 802.1X authentication with per-port user limit; AAA authentication (RADIUS, HWTACACS+, NAC); SSH V2.0; CPU protection; blacklist and whitelist
Power Supply	DC -48V to -60V
Maximum Power Consumption	< 20W
Dimensions (W × D × H)	442 × 220 × 43.6 mm (17.4 × 8.7 × 1.7 in)
Weight	< 2.5 kg
Operating Temperature	0°C to 50°C (32°F to 122°F)
Operating Humidity	10% to 90% (non-condensing)
Heat Dissipation	Fan‑free natural heat dissipation
Stacking	Supported (iStack)
Installation Options	Rack mounting, desk mounting, wall mounting; supports 300-mm deep cabinets
