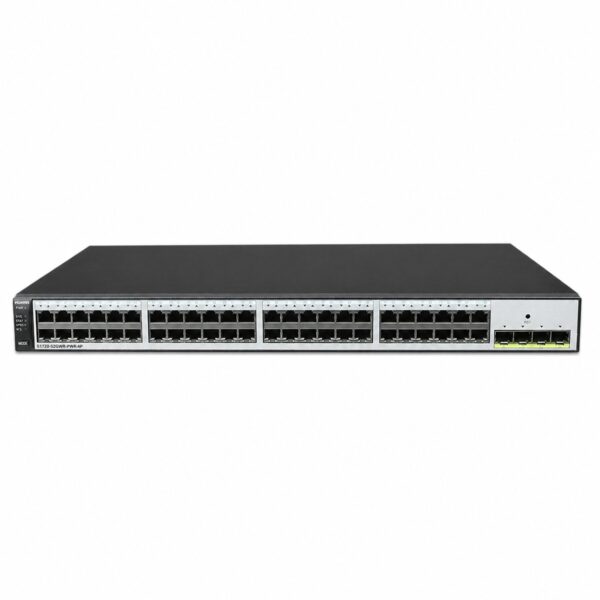

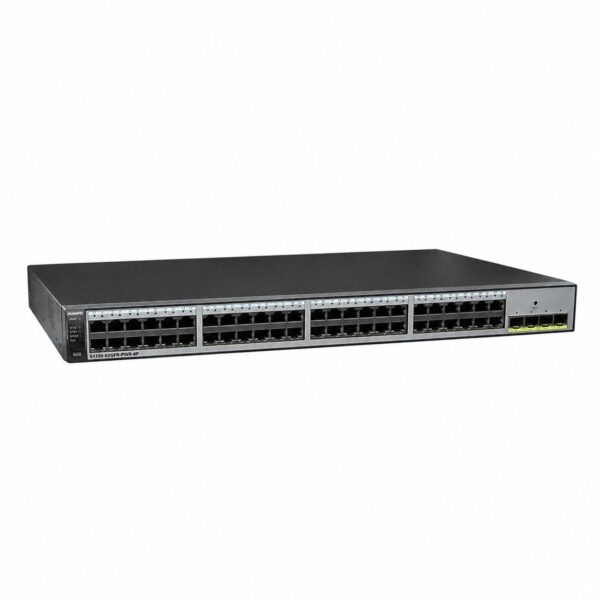

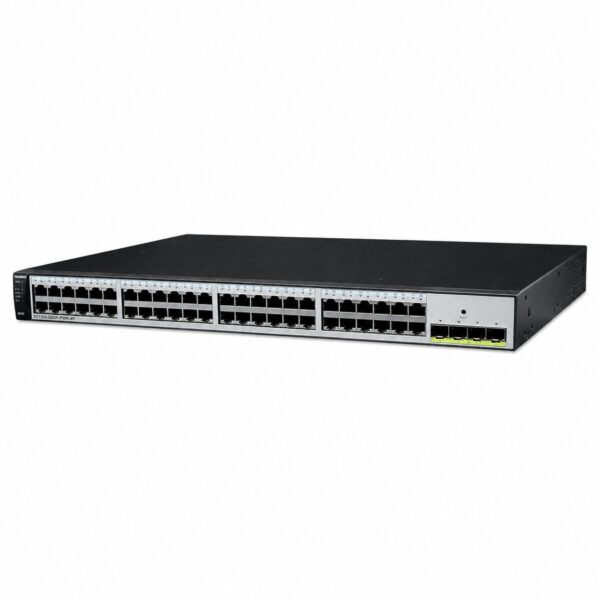

Huawei S1720-52GFR-PWR-4P-AC Switch

Huawei S1720-52GFR-PWR-4P-AC – Product Information
Product Overview
The Huawei S1720-52GFR-PWR-4P-AC is a managed Ethernet switch from the S1700 series, designed for deployment at the access layer of enterprise networks. It delivers cost-effective packet switching capabilities while providing multi-service access, excellent extensibility, Quality of Service (QoS) guarantee, powerful multicast replication, and carrier-class security. The switch supports ring topology construction for high reliability and is well-suited for scenarios such as Gigabit Ethernet access to enterprise networks and GE-to-desktop deployments, helping build future-oriented IT networks for enterprises.

The switch features 48 PoE+ 10/100/1000BASE-T downlink ports and 4 Gigabit SFP uplink ports. It is equipped with a built-in AC power module that delivers 370W of PoE power budget, enabling full PoE power on 24 ports compliant with 802.3af or 12 ports compliant with 802.3at. The device includes a mode switching button for toggling port indicator modes (speed, PoE status, and link status), a reset button for factory reset or device restart, and a built-in fan with intelligent speed adjustment for heat dissipation.

Technical Specifications
Item Specification
Model S1720-52GFR-PWR-4P-AC
Product Series S1700 Series
Downlink Ports 48 × 10/100/1000BASE-T (PoE+)
Uplink Ports 4 × GE SFP (1000BASE-X)
PoE Support PoE+
PoE Power Budget 370W
MAC Address Table 16K
Memory (RAM) 512 MB (240 MB available for customers)
Flash 512 MB
Input Voltage 100V–240V AC, 50–60Hz
Power Consumption (Non-PoE) 61.7W
Power Consumption (PoE) 461.8W (PoE: 369.6W)
Energy Efficient Ethernet (EEE) Supported
Operating Temperature 0°C to 45°C
Short-Term Operating Temperature -5°C to +50°C (at altitude 0–1800 m)
Storage Temperature -40°C to +70°C
Relative Humidity (non-condensing) 5% to 95%
Operating Altitude 0–5000 m
Noise (normal temperature, 27°C) < 48.3 dB(A)
Heat Dissipation Built-in fan with intelligent speed adjustment, left-to-right airflow
Dimensions (W × D × H) 442 mm × 310 mm × 43.6 mm
Weight 6.0 kg
