Dell PowerEdge T560 Tower Server — Product Datasheet

Product Overview

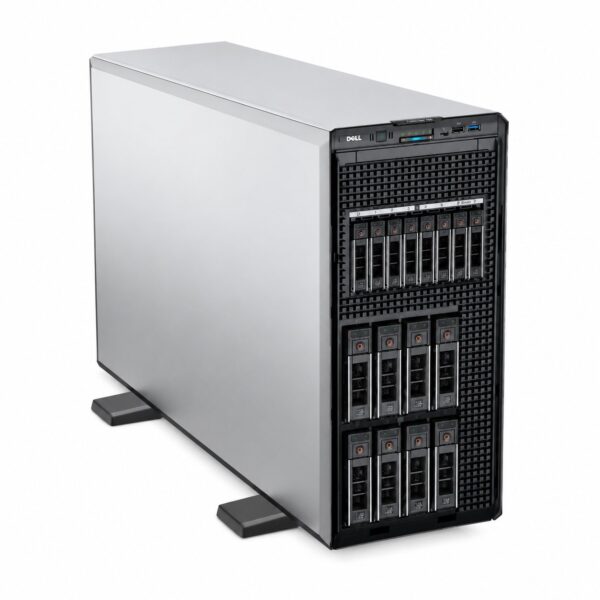

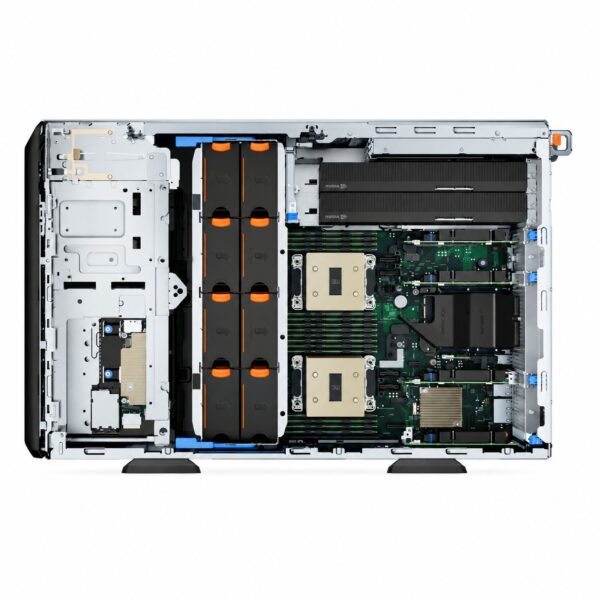

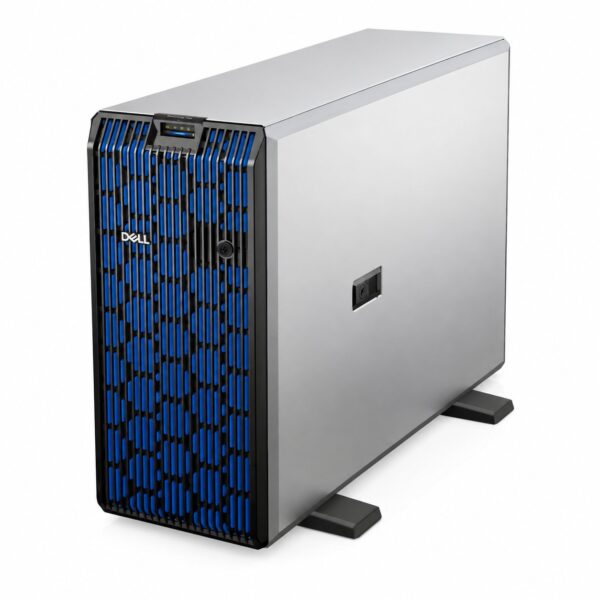

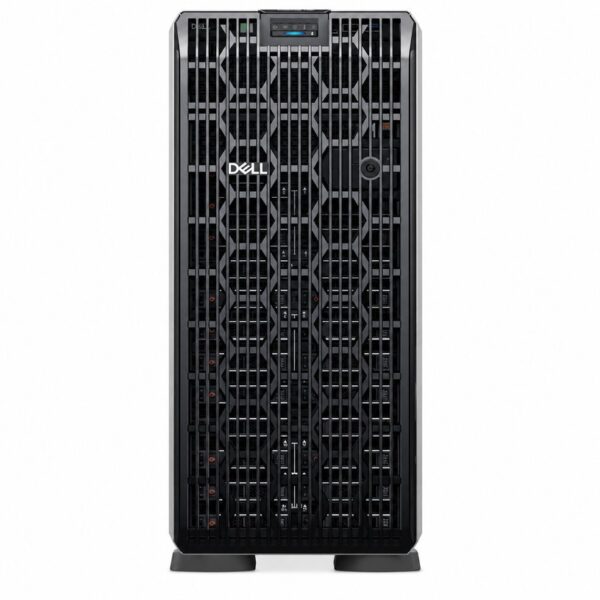

The Dell PowerEdge T560 is a dual-socket 4.5U tower server engineered for enterprise-grade performance in office-friendly environments, including remote and branch office locations. Powered by up to two 4th or 5th Generation Intel® Xeon® Scalable processors, the T560 delivers a performance uplift of up to 114% compared to the previous-generation PowerEdge T550.

The T560 is purpose-built to handle a diverse range of workloads, including traditional enterprise IT applications, virtualization, database and analytics, and AI/ML inference. It features doubled memory bandwidth with DDR5 technology, doubled I/O speed with PCIe Gen5, and expanded GPU support with up to six 75W single-width or two 300W double-width accelerators. With support for up to 12 x 3.5-inch or 24 x 2.5-inch drives, the T560 offers extensive storage scalability while maintaining acoustic performance suitable for office deployment.

Technical Specifications

Feature Specification
Form Factor 4.5U Tower Server
Processor Up to two 4th Generation Intel® Xeon® Scalable processors, up to 32 cores per processor; Up to two 5th Generation Intel® Xeon® Scalable processors, up to 28 cores per processor
Chipset Intel® C741
Memory 16 x DDR5 DIMM slots; Supports up to 1 TB RDIMM; DIMM speed up to 4800 MT/s with 4th Gen Intel® Xeon®; up to 5200 MT/s with 5th Gen Intel® Xeon®; RDIMM only (Registered ECC DDR5)
Storage — Front Bays Up to 12 x 3.5″ SAS/SATA HDD (max 180 TB); Up to 8 x 3.5″ SAS/SATA HDD (max 120 TB); Up to 8 x 3.5″ SAS/SATA HDD + 8 x 2.5″ NVMe SSD (max 240 TB); Up to 8 x 2.5″ SAS/SATA HDD (max 120 TB); Up to 16 x 2.5″ SAS/SATA HDD (max 240 TB); Up to 24 x 2.5″ SAS/SATA HDD (max 360 TB)
Storage Controllers — Internal iPERC H965i, iPERC H755N, iPERC H755, iPERC H355, iPERC HBA355i
Storage Controllers — External PERC HBA355e (non-RAID)
Software RAID S160 (NVMe only)
Internal Boot Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSD; USB
PCIe Slots Up to 6 PCIe slots total; Slot 1: x16 Gen5, Full Height, Full Length; Slot 2: x16 Gen5, Full Height, Full Length; Slot 3: x16 Gen4, Full Height, Half Length; Slot 4: x16 Gen4, Full Height, Half Length; Slot 5: x16 (x8 lanes) Gen4, Full Height, Half Length; Slot 6: x16 Gen4, Full Height, Half Length
GPU / Accelerator Support Up to 2 x 300W Double-Width GPUs; Up to 6 x 75W Single-Width GPUs
Network Options 2 x 1GbE LOM on planar; 1 x OCP 3.0 x8 card (both LOM and OCP can be installed simultaneously)
Front Ports 1 x iDRAC Direct (Micro-AB USB); 1 x USB 2.0; 1 x USB 3.0

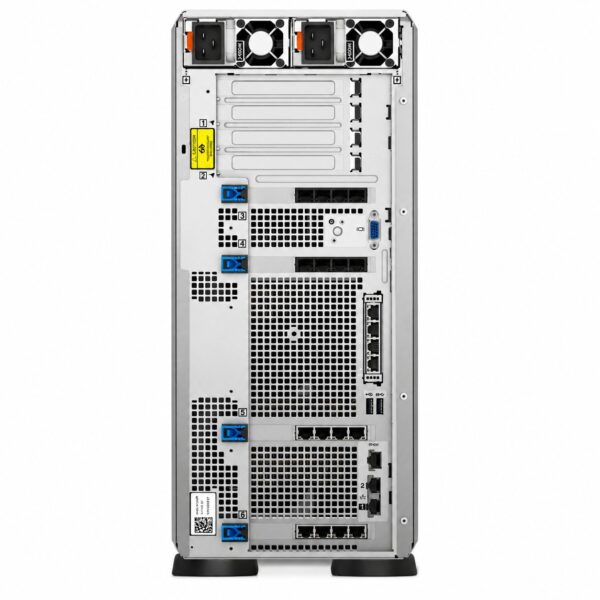

Rear Ports 1 x dedicated iDRAC RJ-45; 1 x USB 2.0; 1 x USB 3.0; 1 x Serial (optional); 1 x VGA; 2 x Ethernet
Internal Ports 1 x USB 3.0 (optional)
Power Supplies 600W Platinum (100–240 VAC/240 VDC); 700W Titanium (200–240 VAC/240 VDC); 800W Platinum (100–240 VAC/240 VDC); 1100W Titanium (100–240 VAC/240 VDC); 1100W DC/-48–(-60)V; 1400W Platinum (100–240 VAC/240 VDC); 1400W Titanium (100–240 VAC/240 VDC); 1400W Titanium 277VAC/336VDC; 1800W Titanium (200–240 VAC/240 VDC); 2400W Platinum (100–240 VAC/240 VDC); 2800W Titanium (200–240 VAC/240 VDC)
Operating Systems Canonical Ubuntu Server LTS; Microsoft Windows Server with Hyper-V; Red Hat Enterprise Linux; SUSE Linux Enterprise Server; VMware ESXi
Management iDRAC9; iDRAC Direct; iDRAC RESTful API with Redfish; Quick Sync 2 wireless module; OpenManage Enterprise; OpenManage Mobile
Security Cryptographically signed firmware; Data-at-Rest Encryption (SED with local or external key management); Secure Boot; Secure Erase; Silicon Root of Trust; System Lockdown (requires iDRAC9 Enterprise or Datacenter); TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Dimensions (H x W x D) Height: 464.0 mm (18.26″) with feet, 446.0 mm (17.60″) without feet, 508.8 mm (20.03″) with casters; Width: 200.0 mm (7.87″); Depth: 678.2 mm (26.70″) with bezel, 660.6 mm (26.0″) without bezel
Weight Maximum 48 kg (107.32 lb)
