Huawei OceanStor S5500T Storage System — Product Documentation List

Product Overview

The Huawei OceanStor S5500T is a unified storage system within the OceanStor T series, designed for mid-range to high-end enterprise applications. It delivers high performance, comprehensive data protection, and flexible scalability to meet diverse business requirements including large database OLTP/OLAP, high-performance computing, digital media, internet operations, centralized storage, backup, disaster recovery, and data migration.

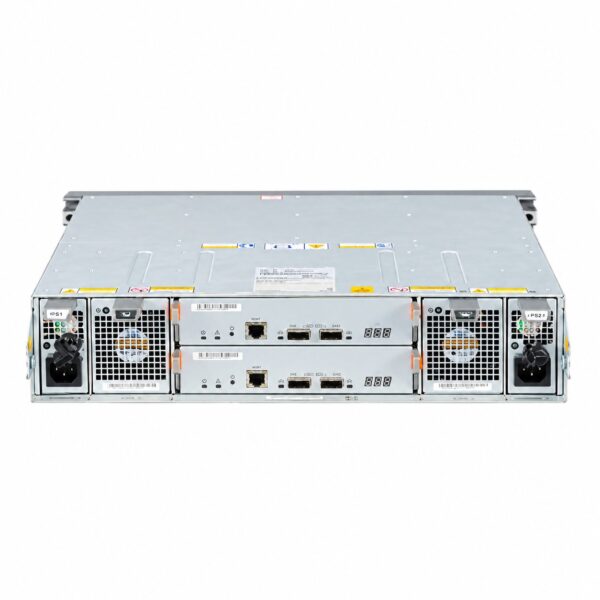

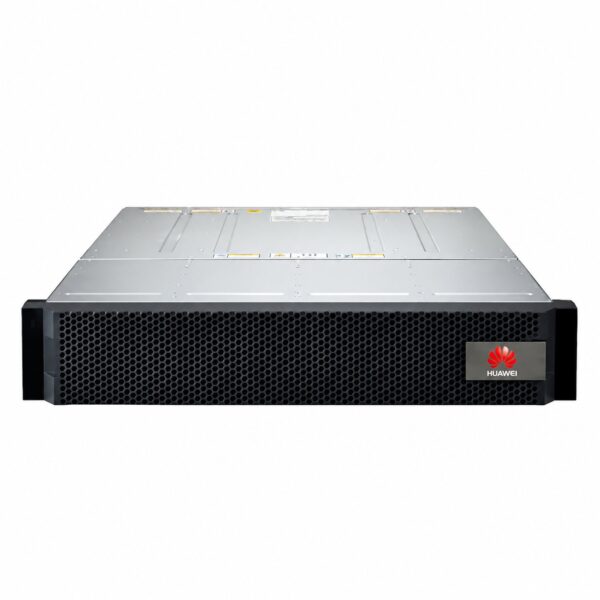

The system features a 2U dual-controller architecture with a multi-core multiprocessor design. It supports unified SAN and NAS storage protocols, allowing both structured and unstructured data to be managed within a single system. The S5500T integrates Huawei’s TurboBoost performance acceleration technology, SmartCache SSD caching, and HyperThin thin provisioning to optimize resource utilization and reduce total cost of ownership. Major components and data access channels are fully redundant, ensuring high availability for 24×7 operations. The system has been certified for VMware vSphere 5, including VAAI, SRM, and VASA integration.

Product Documentation List

Document Category Document Name
Product Overview OceanStor S5500T Product Description
Technical Specifications OceanStor S5500T Specification Sheet
Deployment & Configuration OceanStor S5500T Installation Guide
Software Features OceanStor T Series Software Feature Guide
Data Protection HyperImage / HyperCopy / HyperMirror User Guide
Cache Acceleration SmartCache Technical White Paper
Thin Provisioning HyperThin Technical White Paper
Multipathing UltraPath User Guide
Virtualization Integration OceanStor S5500T VMware vSphere Integration Guide
Management ISM Unified Management Platform User Manual
Application Notes OceanStor S5500T SPC-1 Full Disclosure Report

Technical Specifications

Parameter Specification
Storage Processor Multi-core multiprocessor group
Controller Count 2
Cache 8 GB / 16 GB / 32 GB
Expansion Cache 1.2 TB
Front-End Port Types 8 Gbps FC, 1 Gbps iSCSI, 10 Gbps iSCSI (TOE), 10 Gbps FCoE
Back-End Port Type 6 Gbps SAS 2.0 wide port
Maximum I/O Modules 2
Maximum Disks 528
Disk Types SAS, NL SAS, SATA, SSD
RAID Levels 0, 1, 3, 5, 6, 10, 50
Maximum Snapshots 1024
Maximum LUNs 4096
Supported Operating Systems AIX, HP-UX, Solaris, Linux, Windows
Storage Network Protocols FC, iSCSI, NFS, CIFS, FTP, HTTP
Power Supply (AC) 100–127 V or 200–240 V
Power Supply (DC) –48 V to –60 V
Control Enclosure Dimensions (2U) 86.1 mm × 446 mm × 582 mm
Disk Enclosure Dimensions (4U) 175 mm × 446 mm × 412 mm
Control Enclosure Weight ≤ 23.9 kg
2U SAS Disk Enclosure Weight ≤ 14.9 kg
4U SAS Disk Enclosure Weight ≤ 25.2 kg
