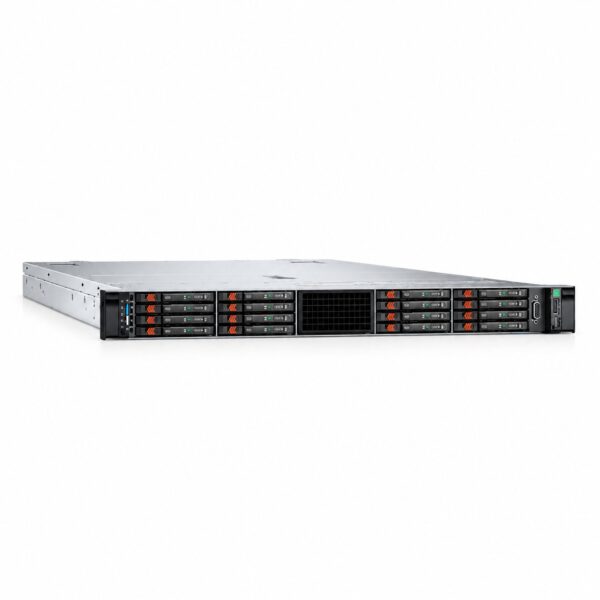

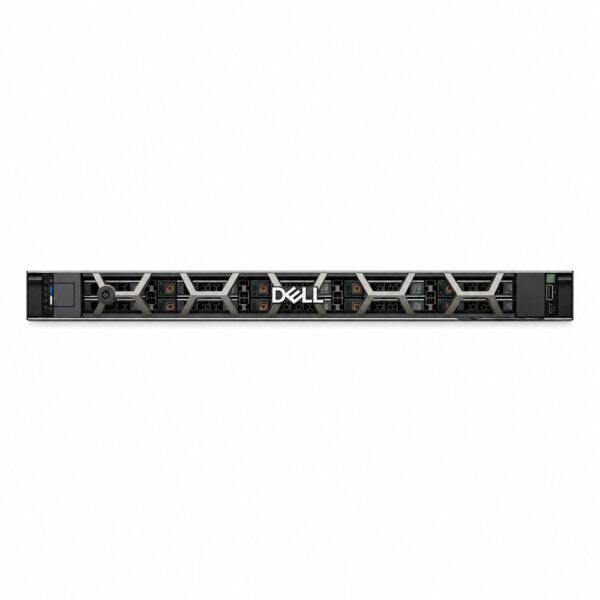

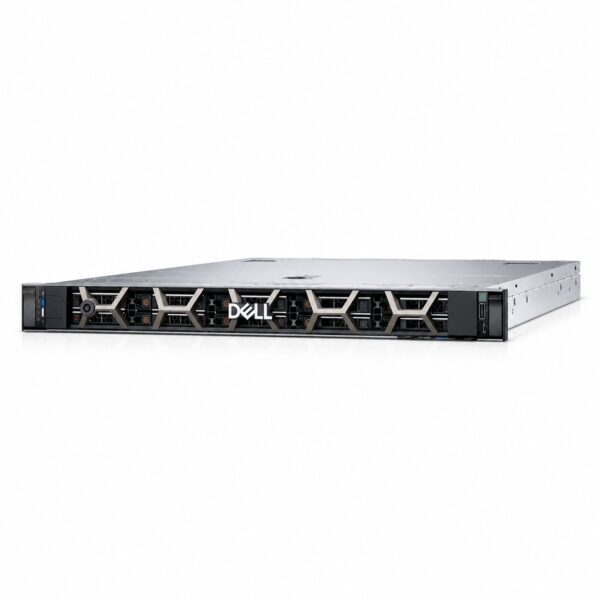

Dell PowerEdge R660 Rack Server

Product Overview

The Dell PowerEdge R660 is a 1U, two-socket rack server engineered for demanding mainstream workloads requiring high density and performance in a compact form factor. It is designed to deliver powerful performance with support for up to two 5th Generation Intel Xeon Scalable processors, featuring up to 64 cores per processor. The R660 is optimized for a broad range of data-intensive applications including high-density virtualization, dense database analytics, and mixed workload standardization.

The system features a new Smart Flow chassis design that optimizes airflow to support high-core-count CPUs in air-cooled environments, with an optional Direct Liquid Cooling (DLC) configuration available for maximum thermal efficiency. The R660 incorporates a cyber-resilient architecture with Silicon Root of Trust and cryptographically signed firmware to help establish a zero-trust IT environment.

Technical Specifications

Feature Specifications
Form Factor 1U rack server
Processors Up to two 5th Generation Intel Xeon Scalable processors, up to 64 cores per processor
Chipset Intel C741
Memory 32 DDR5 DIMM slots; Supports RDIMM only; Up to 8 TB max; Speeds up to 5600 MT/s
Storage Controllers (Internal) PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i
Storage Controllers (External) HBA355e, PERC H965e
Software RAID S160
Internal Boot Boot Optimized Storage Subsystem (BOSS-N1): HWRAID with 2 x M.2 NVMe SSD; USB
Front Drive Bays Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD), max 122.88 TB
Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD), max 153.6 TB
Up to 14 x E3.S (Gen5 x NVMe), max 179.2 TB
Up to 16 x E3.S (Gen5 x NVMe), max 204.8 TB
Rear Drive Bays Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD), max 30.72 TB
Up to 2 x E3.S (Gen5 x NVMe), max 25.6 TB
PCIe Slots Up to 3 PCIe slots:
Slot 1: 1 x16 Gen5 full height, 3/4 length, half length; or 1 x8/1 x16 Gen5; or 1 x16 Gen4 low profile, half length
Slot 2: 1 x16 Gen5 full height, 3/4 length, half length; or 1 x16 Gen5; or 1 x16 Gen4 low profile, half length
Slot 3: 1 x8/1 x16 Gen5; or 1 x16 Gen4 low profile, half length
Accelerators Up to 3 x 75 W single-width accelerators
Network Options 2 x 1 GbE LOM (optional); 1 x OCP 3.0 card (optional)
Front Ports 1 x iDRAC Direct (Micro-AB USB); 1 x USB 2.0; 1 x VGA

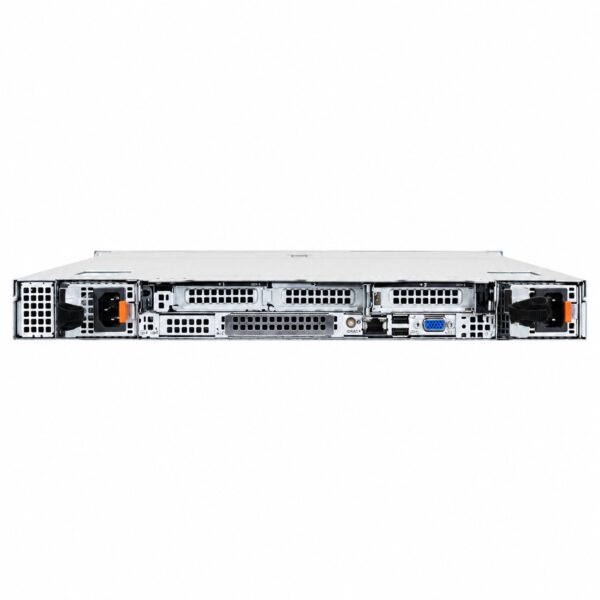

Rear Ports 1 x dedicated iDRAC Ethernet; 1 x USB 2.0; 1 x USB 3.0; 1 x Serial (optional); 1 x VGA (optional for DLC configuration)
Internal Ports 1 x USB 3.0 (optional)
Power Supplies 1800 W Titanium (200–240 VAC or 240 HVDC), hot-swap redundant
1400 W Platinum (100–240 VAC or 240 HVDC), hot-swap redundant
1100 W Titanium (100–240 VAC or 240 HVDC), hot-swap redundant
1100 W LVDC (-48 to -60 VDC), hot-swap redundant
800 W Platinum (100–240 VAC or 240 HVDC), hot-swap redundant
700 W Titanium (200–240 VAC or 240 HVDC), hot-swap redundant
Cooling Up to 4 fan sets (dual fan module); Air cooling standard; Optional Direct Liquid Cooling (DLC)
Dimensions Height: 42.8 mm (1.68 inches)
Width: 482.0 mm (18.97 inches)
Depth: 822.88 mm (32.39 inches) with bezel; 809.04 mm (31.85 inches) without bezel
Weight Max 22.51 kg (49.62 lbs.)
Supported Operating Systems Canonical Ubuntu Server LTS; Microsoft Windows Server with Hyper-V; Red Hat Enterprise Linux; SUSE Linux Enterprise Server; VMware ESXi
Management iDRAC9; iDRAC Direct; iDRAC RESTful API with Redfish; Quick Sync 2 wireless module; OpenManage Enterprise; OpenManage Mobile
Security Cryptographically signed firmware; Secure Boot; Secure Erase; Silicon Root of Trust; System Lockdown (requires iDRAC9 Enterprise or Datacenter); TPM 2.0 FIPS, CC-TCG certified; Secured Component Verification; Data at Rest Encryption (SEDs with local or external key management)
Rack Support ReadyRails II sliding rails with optional CMA and SRB for 4-post racks; Combo (Drop-in/Slide-in) rails with optional CMA and SRB for 4-post racks; ReadyRails static rails for 4-post and 2-post racks
