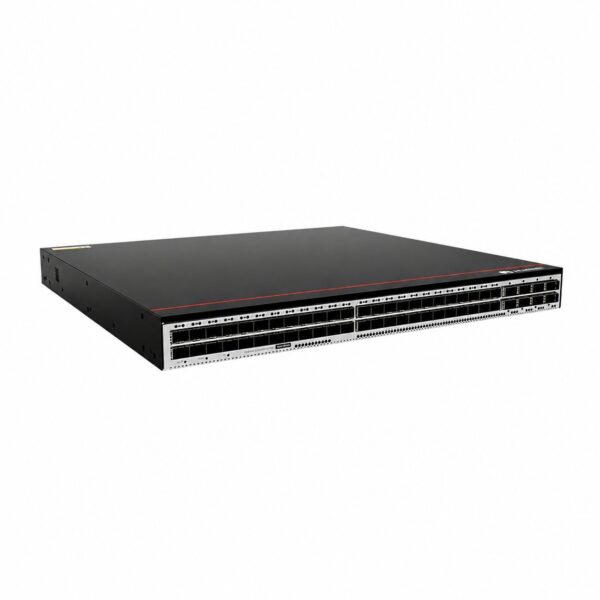

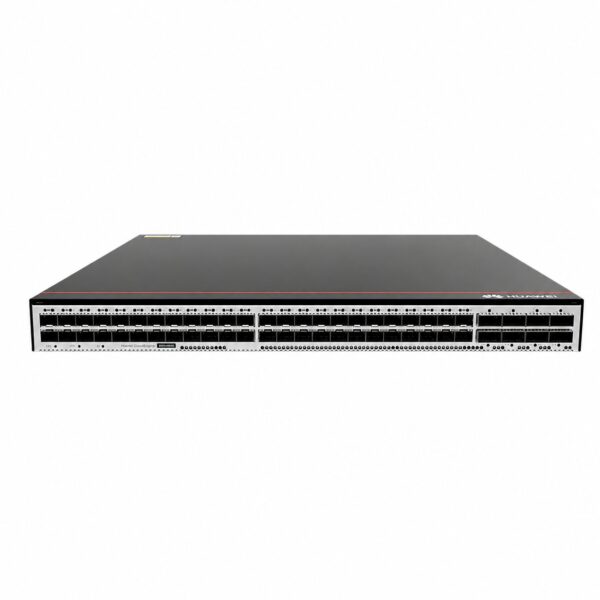

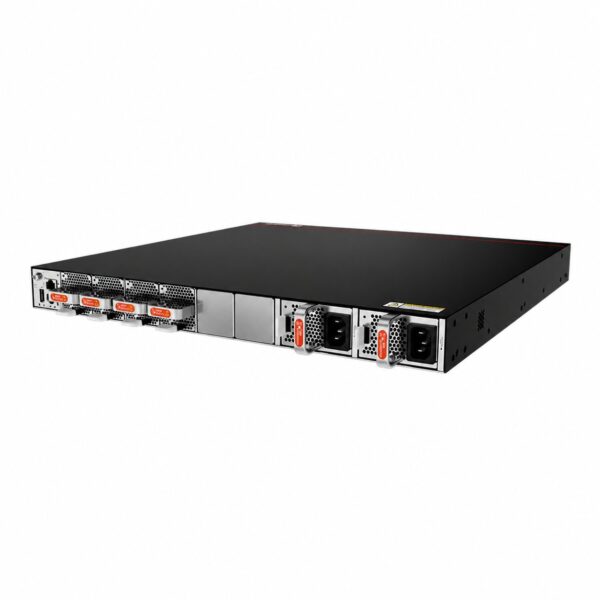

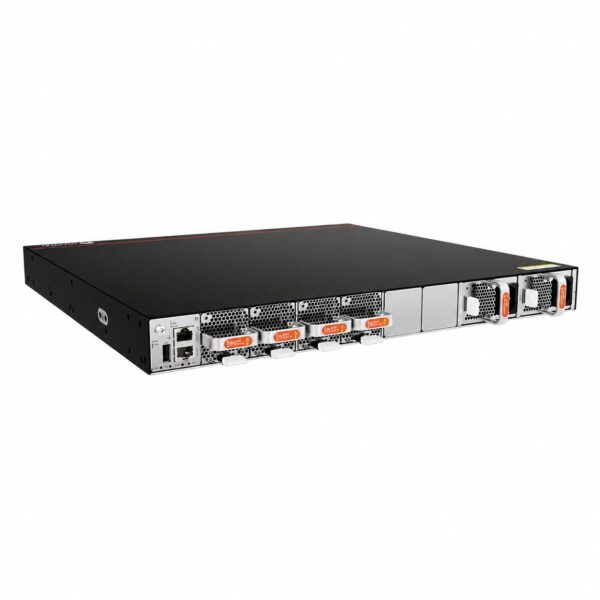

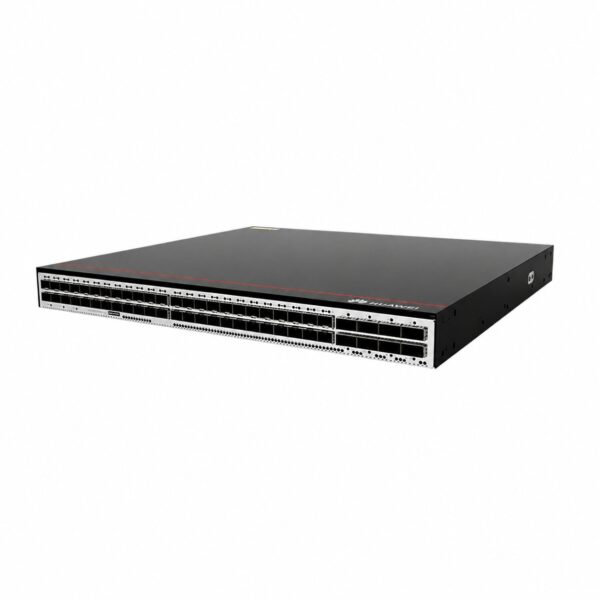

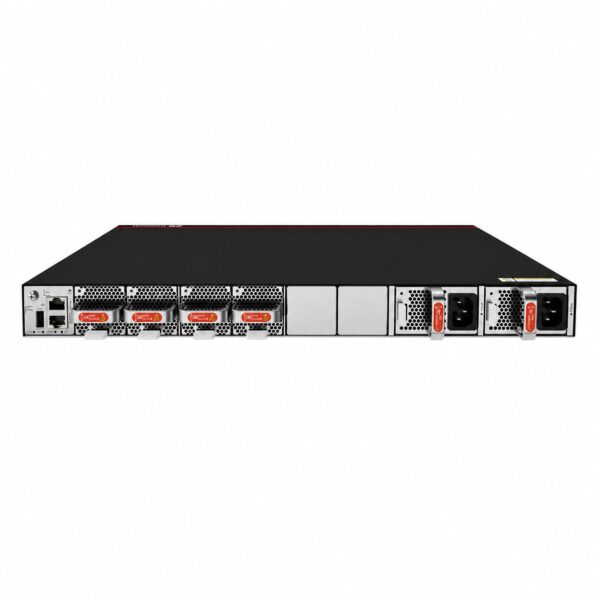

Huawei CloudEngine CE6885L-48YS8CQ Data Center Switch

Name: Huawei CloudEngine CE6885L-48YS8CQ - Refurbished & Tested - SunSpike
Brand: HUAWEI
SKU: CE6885L-48YS8CQ

Product Overview

The Huawei CloudEngine CE6885L-48YS8CQ is a high-performance, fixed-form-factor data center switch designed for next-generation server access in cloud data centers. This 1RU switch delivers high-density 25GE/10GE/1GE server connectivity with 48 x SFP28 downlink ports and 8 x 100GE QSFP28 uplink ports, providing flexible, scalable network architectures for modern cloud environments .

The CE6885L-48YS8CQ serves as a top-of-rack (ToR) switch, supporting high-speed server access and seamless integration with core switches such as the CloudEngine 16800, 16800-X, or 8800 series. It offers advanced features including VXLAN/BGP-EVPN for network virtualization, M-LAG for multi-device link aggregation and high availability, and intelligent lossless network capabilities (PFC, AI ECN) optimized for RoCEv2 traffic. The switch incorporates comprehensive telemetry, IFIT, and Packet Event technologies for intelligent operations and maintenance, enabling proactive fault detection and root cause analysis. It supports Zero Touch Provisioning (ZTP) for automated deployment, reducing operational complexity and accelerating service provisioning .

The platform is built on a flexible, programmable architecture supporting NETCONF, Open Programmability System (OPS), and integration with Huawei iMaster NCE-Fabric for automated, intent-based network management. The switch also features MACsec for link-layer security, flexible airflow direction, and 1+1 redundant, hot-swappable power supplies with N+1 fan redundancy .

Product Specifications

Category	Parameter	Specification
Model	Product Model	CloudEngine CE6885L-48YS8CQ
	Form Factor	1RU
	Dimensions (W×D×H)	442.0 × 420.0 × 43.6 mm
	Weight	8.45 kg (without packaging)
Ports	Downlink Ports	48 × 25GE SFP28 (compatible with 10GE, 1GE)
	Uplink Ports	8 × 100GE QSFP28 (breakout to 4×25GE or 4×10GE; upgradeable to 200GE with RTU license)
Performance	Switching Capacity	8 Tbps / 128 Tbps (cluster)
	Forwarding Rate	2400 Mpps
	System Buffer	32.5 MB
Scalability	MAC Address Table	640K entries
	IPv4 FIB Routes	1.5M
	IPv6 FIB Routes	750K
	ARP Table	128K
	IPv6 ND Table	128K
	ACL (Ingress/Egress)	34K / 2K
	Maximum VRFs	4096
	Maximum VRRP Groups	1024
	ECMP Paths	128
	VXLAN Bridge Domains	16K
	BDIF Interfaces	16K
	VXLAN Tunnels	5K
	Maximum LAGs	1024
	Maximum Links per LAG	256
	BGP Neighbors	1024
	Multicast Routes	32K
Power	Power Supply Modules	600W AC & 240V DC (90–290V AC, 45–65Hz; 190–290V DC)
		1200W DC (-38.4V to -72V DC)
		400W DC (-38.4V to -72V DC; +38.4V to +57V DC)
	Power Redundancy	1+1 Hot-swappable
	Typical Power Consumption	147W (100% load, 24×25G+4×100G copper, dual AC)
	Maximum Power Consumption	200W (100% load, all ports short-range optical modules)
Cooling	Fan Modules	5 × Hot-swappable, N+1 redundancy
	Airflow Direction	Front-to-back (intake), reversible options available
Environment	Operating Temperature	0°C to 40°C (0m–1800m altitude)
	Storage Temperature	-40°C to +70°C
	Operating Humidity	5% to 95% RH, non-condensing
Management & Programmability	Management Protocols	NETCONF, SNMP, Ansible, ZTP
	O&M	Telemetry, IFIT, Packet Event, ERSPAN, sFlow, NetStream
	Programmability	OpenFlow, OPS (Open Programmability System)
Data Center Features	Network Virtualization	VXLAN Bridging & Routing, BGP-EVPN, VXLAN OAM
	High Availability	M-LAG (Multi-chassis Link Aggregation), BFD, VRRP
	Lossless Network	PFC, AI ECN, ECN Overlay, iLossless Algorithm, PFC Deadlock Prevention
	Security	MACsec, AAA, RADIUS, HWTACACS, Port Security, DoS/ARP Attack Defense
	Timing	1588v2 (PTP) support on breakout ports
L2/L3 Protocols	VLAN	Access, Trunk, Hybrid, default VLAN
	QoS	ACL, CAR, Remark, PQ, DRR, WRED, Traffic Shaping
	IPv4 Routing	RIP, OSPF, ISIS, BGP, Static Routes
	IPv6 Routing	RIPng, OSPFv3, ISISv6, BGP4+, VXLAN over IPv6
	Multicast	IGMP, PIM-SM, MSDP, IGMP Snooping, IPv6 Multicast
Certification	Safety	EN 62368-1, IEC 62368-1, UL 62368-1, GB4943
	EMC	EN 300386, EN 55032, EN 55035, FCC 47CFR Part15, CISPR 32/24, VCCI-CISPR32/35
	Environmental	EN 50581, EN 50419, ETSI EN 300 019 series
