Huawei CloudEngine S5731-S32ST4X-D – Product Documentation

Name: Huawei CloudEngine S5731-S32ST4X-D - Refurbished & Tested - SunSpike
Brand: HUAWEI
SKU: S5731-S32ST4X-D

Product Overview

The Huawei CloudEngine S5731-S32ST4X-D is a next-generation standard gigabit access switch designed for enterprise campus networks, data center access, and metropolitan area network (MAN) access scenarios. Built on Huawei’s unified Versatile Routing Platform (VRP), this switch delivers enhanced Layer 3 features, simplified operations and maintenance (O&M), and mature IPv6 capabilities.

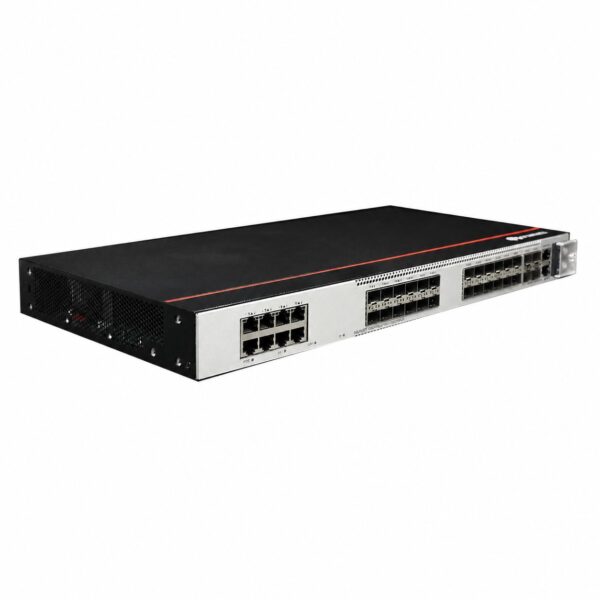

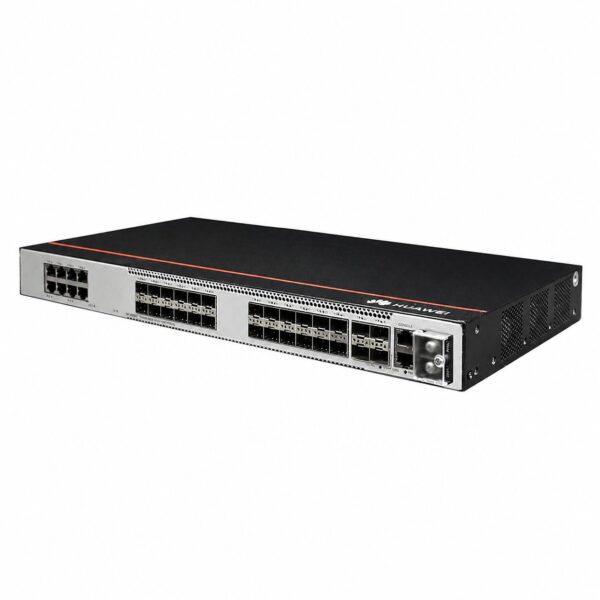

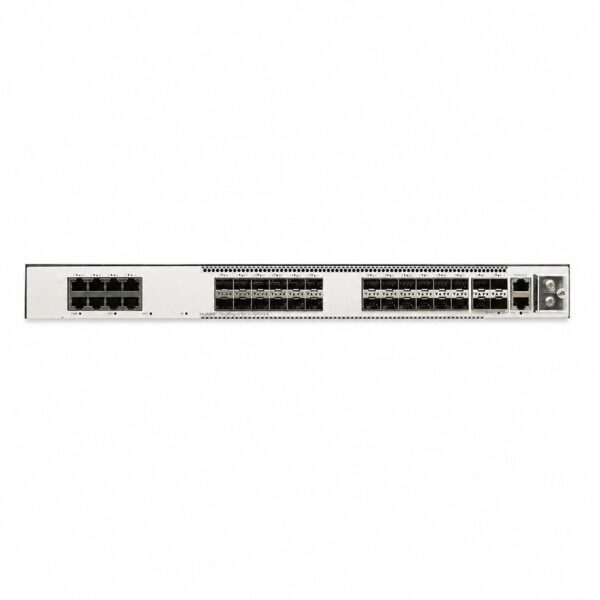

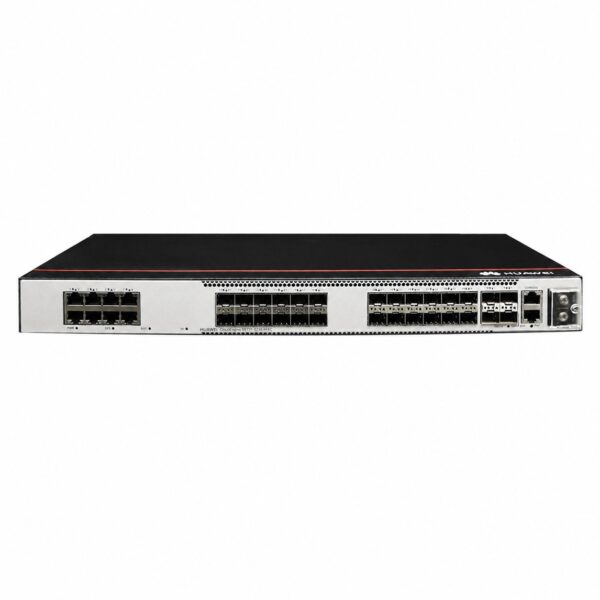

The switch features a flexible port configuration consisting of 8 x 10/100/1000BASE-T copper ports, 24 x GE SFP fiber ports, and 4 x 10GE SFP+ high-speed uplink ports, providing a total of 36 ports. It is equipped with a built-in DC power supply and supports front-access design for simplified maintenance in rack deployments.

Key capabilities include:

Intelligent Stack (iStack) – Virtualizes up to nine physical switches into a single logical switch, improving reliability, scalability, and management efficiency
VXLAN Support – Layer 2 and Layer 3 gateways with centralized/distributed gateway capabilities, BGP-EVPN, and NETCONF-based configuration
Super Virtual Fabric (SVF) – Simplifies network O&M by virtualizing core/aggregation switches, access switches, and APs into a single logical device with plug-and-play client support
Integrated Network Security – Built-in security probes that identify potentially malicious traffic and collaborate with Huawei HiSec Insight for network-wide security protection
Comprehensive VLAN Features – Supports 4094 VLANs, Guest VLAN, Voice VLAN, MUX VLAN, and VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports

The switch is widely used in enterprise campus access and aggregation, as well as data center access scenarios.

Technical Specifications

Category	Specification
Model	S5731-S32ST4X-D
Part Number	98011810
First Supported Version	V200R021C01
Port Configuration	8 x 10/100/1000BASE-T ports, 24 x GE SFP ports, 4 x 10GE SFP+ ports
Switching Capacity	216 Gbps / 672 Gbps (device/system)
Forwarding Performance	125 Mpps
MAC Address Table	64,000 MAC entries
VLANs	4094 VLANs
Chassis Height	1 U
Dimensions (H x W x D)	43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.40 in. x 8.66 in.)
Maximum Dimensions (H x W x D)	43.6 mm x 442.0 mm x 236.0 mm (1.72 in. x 17.40 in. x 9.29 in.)
Packaged Dimensions (H x W x D)	90.0 mm x 550.0 mm x 355.0 mm (3.54 in. x 21.65 in. x 13.98 in.)
Weight (without packaging)	2.98 kg (6.57 lb)
Weight (with packaging)	4.34 kg (9.57 lb)
Chassis Material	Metal
Power Supply	Built-in DC power supply
Rated Input Voltage	48 V DC to 60 V DC
Input Voltage Range	38.4 V DC to 72 V DC
Maximum Input Current	6 A
Typical Power Consumption	69.46 W
Maximum Power Consumption	93.39 W
Static Power Consumption	41.42 W
Typical Heat Dissipation	237.00 BTU/hour
Maximum Heat Dissipation	318.66 BTU/hour
Cooling Method	Fan cooling with intelligent fan speed adjustment
Number of Fan Units	Built-in
Noise (Acoustic Pressure)	27.74 dB(A)
Noise (Acoustic Power)	41.42 dB(A)
Airflow Direction	Intake from left and front, exhaust from right
Console Port	RJ45
ETH Management Port	RJ45
PNP Button	Supported
Ground Screw	Supported
Long-term Operating Temperature	-5°C to +45°C (23°F to 113°F) at 0–1800 m altitude
Short-term Operating Temperature	-5°C to +50°C (23°F to 122°F) at 0–1800 m altitude
Storage Temperature	-40°C to +70°C (-40°F to +158°F)
Long-term Operating Humidity	5% to 95% RH, non-condensing
Long-term Operating Altitude	0–5000 m (0–16404 ft.)
Storage Altitude	0–5000 m (0–16404 ft.)
Service Port Surge Protection	Common mode: 7 kV
Power Supply Surge Protection	2 kV differential mode; 4 kV common mode
Ingress Protection Rating	IP20
MTBF	32.56 years
Availability	> 0.99999

Key Features Summary

Feature Category	Description
iStack	Supports stacking of up to 9 switches; inter-device link aggregation; unified management
SVF	Plug-and-play client; automatic software/patch loading; one-click service configuration
VXLAN	L2/L3 gateways; centralized/distributed gateways; BGP-EVPN; NETCONF configuration
MAC Features	MAC address learning/aging; static/dynamic/blackhole MAC entries; source MAC filtering
VLAN Features	4094 VLANs; Guest/ Voice/MUX VLAN; MAC/protocol/IP subnet/policy/port-based VLAN assignment; 1:1 and N:1 VLAN mapping
Interoperability	VBST (compatible with PVST/PVST+/RPVST); LNP (similar to DTP); VCMP (similar to VTP)
Security	Built-in security probes; HiSec Insight integration
