Huawei CloudEngine S5731-S48S4X – Product Documentation

Name: Huawei CloudEngine S5731-S48S4X - Refurbished & Tested - SunSpike
Brand: HUAWEI
SKU: S5731-S48S4X

Product Overview

The Huawei CloudEngine S5731-S48S4X is a next-generation standard gigabit access switch from the CloudEngine S5731-S series. Built on Huawei’s unified Versatile Routing Platform (VRP), it delivers enhanced Layer 3 features, simplified operations and maintenance (O&M), Intelligent Stack (iStack) technology — allowing multiple stacking-capable switches to function as a single logical switch — flexible Ethernet networking, and mature IPv6 capabilities.

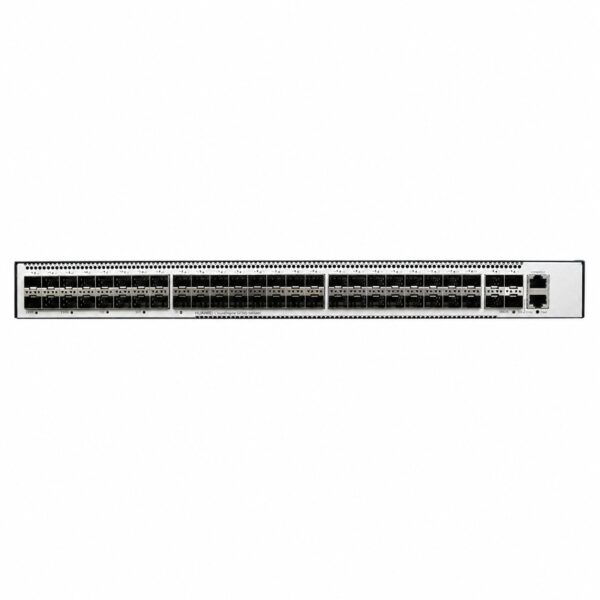

The switch provides 48 x GE SFP ports for downlink access and 4 x 10GE SFP+ ports for high-speed uplink connectivity. It supports 1+1 power redundancy with pluggable AC and DC power modules that can be used together in the same switch. The S5731-S48S4X is widely deployed in enterprise campus access and aggregation, as well as data center access scenarios.

Key capabilities include VXLAN-based network virtualization for automated service deployment — enabling “one network for multiple purposes” and reducing OPEX by up to 80%, Super Virtual Fabric (SVF) which virtualizes the core/aggregation switch + access switch + AP into a single logical device for simplified O&M, and built-in security probes that identify potentially malicious traffic and collaborate with the Huawei HiSec Insight system for network-wide collaborative security protection.

In V200R023C00 and later versions, ports numbered from GE5 to GE48 can be configured to operate at 2.5 Gbit/s using the port mode 2.5ge command.

Product Specifications

Category	Specification
Model	CloudEngine S5731-S48S4X
Part Number	98011805
First Supported Version	V200R021C01
Product Type	Gigabit Ethernet Switch
Switching Capacity	308 Gbps / 672 Gbps (value before slash refers to device switching capability, after slash refers to system switching capability)
Forwarding Performance	125 Mpps
Fixed Ports	48 x GE SFP ports + 4 x 10GE SFP+ ports
Port Description	48 x 100/1000BASE-X Ethernet optical interfaces, 4 x 10GE SFP+ Ethernet optical interfaces
100/1000BASE-X Port	SFP connector; supports 100 Mbit/s, 1000 Mbit/s, or 2.5 Gbit/s (GE5–GE48 configurable to 2.5GE in V200R023C00 and later)
10GE SFP+ Port	SFP+ connector; supports auto-sensing to 1000 Mbit/s, operates at 1000 Mbit/s or 10 Gbit/s
Console Port	1 x RJ45 console port for on-site configuration
ETH Management Port	1 x RJ45 ETH management port for local/remote configuration
PNP Button	1 x PNP button (hold ≥6 seconds to restore factory settings and reset; press to reset switch)
Ground Screw	1 x ground screw

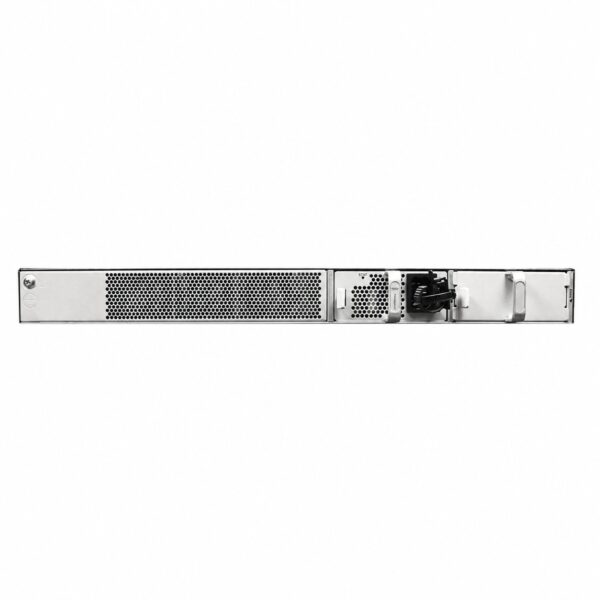

Power Supply	AC or DC power supply, 1+1 power redundancy
Power Module Slots	2 x power module slots
Typical Power Consumption	93.7 W
Maximum Power Consumption	128.89 W (150 W AC or 180 W DC) / 141.96 W (600 W AC)
Dimensions (H x W x D)	43.6 x 442.0 x 420.0 mm (1.72 x 17.40 x 16.54 in.)
Weight (without packaging)	5.12 kg
MAC Features	64,000 MAC entries; MAC address learning and aging; static, dynamic, and blackhole MAC address entries; packet filtering based on source MAC addresses
VLAN Features	4,094 VLANs; Guest VLAN, voice VLAN; GVRP; MUX VLAN; VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports; 1:1 and N:1 VLAN mapping
SVF	Plug-and-play SVF client; automatic software and patch loading; one-click automatic delivery of service configurations; independent client operations
VXLAN	VXLAN L2 and L3 gateways; centralized and distributed gateways; BGP-EVPN; configured through NETCONF protocol
Interoperability	VBST (compatible with PVST/PVST+/RPVST); LNP (similar to DTP); VCMP (similar to VTP)
PoE+	Not supported
Switching Method	Store-and-forward
Product Memory	2 GB
