Huawei CloudEngine CE6881H-48S6CQ Switch – Product Documentation

Name: Huawei CloudEngine CE6881H-48S6CQ - Refurbished & Tested - SunSpike
Brand: HUAWEI
SKU: CE6881H-48S6CQ

Product Overview

The Huawei CloudEngine CE6881H-48S6CQ is a high‑performance, fixed‑form factor data center switch designed for high‑density 10GE server access. It belongs to Huawei’s CloudEngine 6881H series and is purpose‑built for modern cloud‑scale data centers, offering a compelling balance of port density, performance, and advanced feature support .

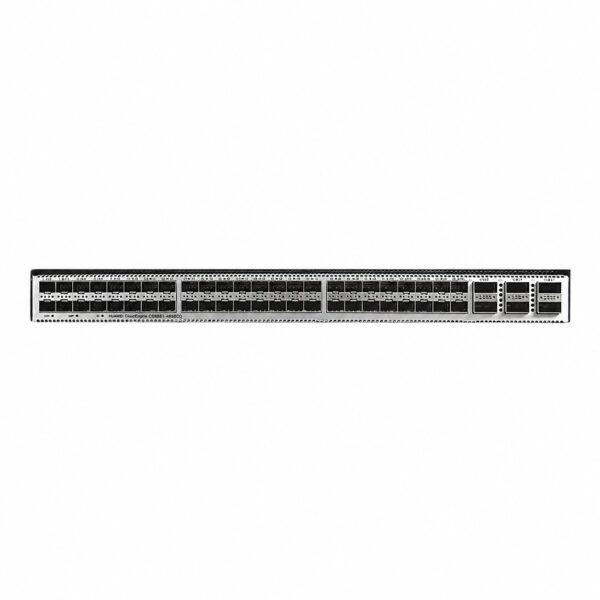

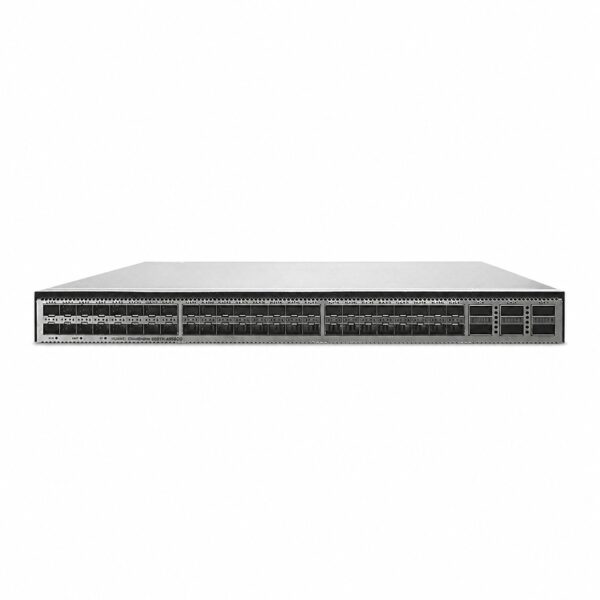

The switch provides 48 x 10GE SFP+ ports for server connectivity and 6 x 100GE QSFP28 uplink ports that can also operate as 40GE QSFP+ ports, delivering flexible uplink options to core or aggregation layers . With a switching capacity of 2.16 Tbps and a forwarding rate of 954 Mpps, it is well‑suited for top‑of‑rack (ToR) and end‑of‑row (EoR) deployments .

The CE6881H-48S6CQ is built on Huawei’s VRP8 operating system and the YunShan platform, supporting advanced data center features including VXLAN with BGP‑EVPN for network virtualization, M‑LAG for multi‑device link aggregation and high availability, and RoCE v1/v2 with PFC/ECN for lossless Ethernet . The switch also supports Zero Touch Provisioning (ZTP) , Telemetry, and integration with iMaster NCE‑Fabric for intelligent automation and operations .

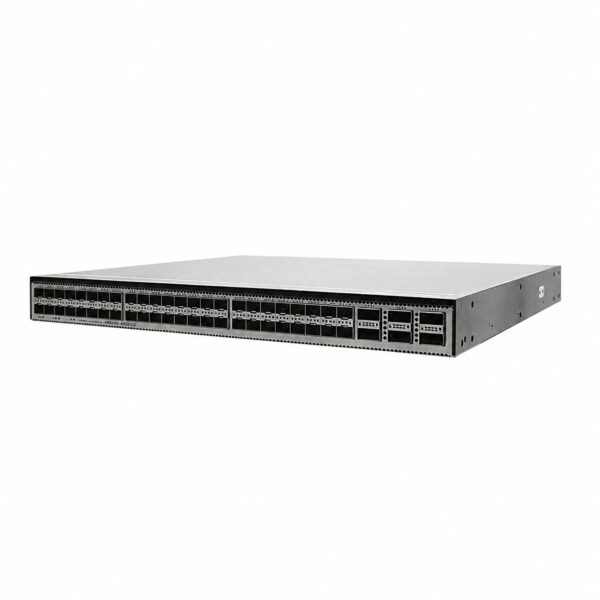

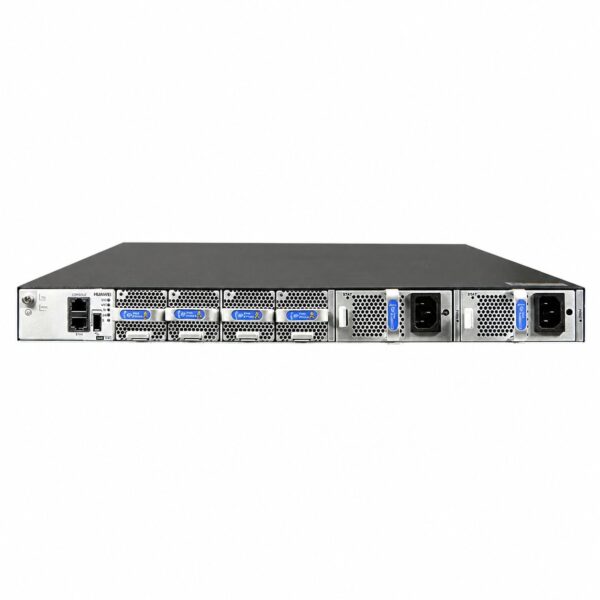

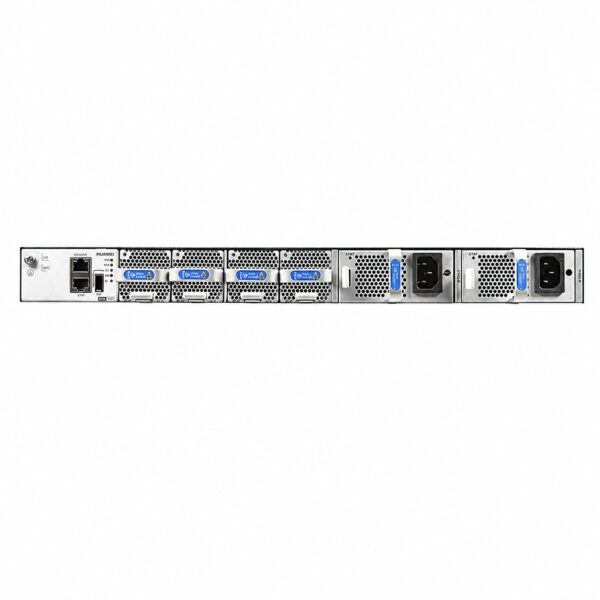

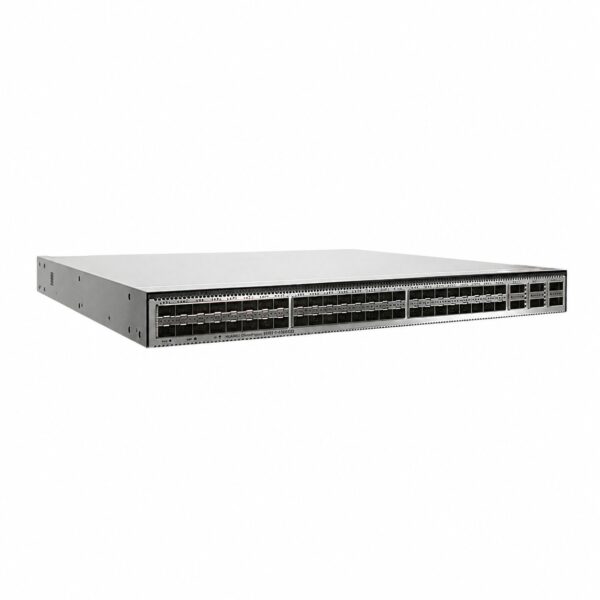

The hardware features a compact 1 RU chassis with front‑to‑back or back‑to‑front airflow options, redundant hot‑swappable power supplies, and N+1 redundant hot‑swappable fan modules, making it suitable for deployment in diverse data center environments .

Product Specifications

Category	Parameter	Specification
Ports	10GE SFP+ Ports	48
	40/100GE QSFP28 Uplink Ports	6 (each configurable as 40GE)
Performance	Switching Capacity	2.16 Tbps
	Packet Forwarding Rate	954 Mpps
	System Buffer	42 MB
Processor & Memory	CPU	4‑core, 1.4 GHz
	RAM	4 GB DRAM
	Flash Memory	4 GB NAND, 64 MB NOR
Physical	Dimensions (W x D x H)	442 mm x 420 mm x 43.6 mm (1 RU)
	Weight (Full Configuration)	7.8 kg (17.2 lb)
Environmental	Long‑term Operating Temperature	0°C to 40°C (32°F to 104°F) at 0–1800m altitude
	Operating Humidity	5% RH to 95% RH (non‑condensing)
	Operating Altitude	≤ 5000 m (16404 ft.)
	Storage Temperature	-40°C to +70°C (-40°F to +158°F)
Power	Power Modules	2 slots, hot‑swappable (1+1 redundant)
	Power Supply Options	600W AC, 1000W DC, 1200W HVDC
	Rated Input Voltage	AC: 100–240V, 50/60Hz; DC: -48 to -60V; HVDC: 240–380V
	Maximum Input Voltage Range	AC: 90–290V; DC: -38.4 to -72V; HVDC: 190–400V
	Typical/Maximum Power Consumption	194 W / 349 W
	Maximum Heat Dissipation	1191 BTU/hr
Cooling	Fan Modules	4 hot‑swappable, N+1 redundant
	Airflow Direction	Front‑to‑back or back‑to‑front (field‑reversible)
	Noise (Typical)	< 58 dB(A) at 27°C
Management &	Management Ports	1x GE out‑of‑band, 1x RJ45 console, 1x USB
O&M	Automation & Programmability	Ansible, ZTP, NetConf, Open API, OPS
	Monitoring & Analytics	Telemetry, NetStream, ERSPAN+, sFlow, iPCA
Network Virtualization	Overlay Protocols	VXLAN routing/bridging, BGP‑EVPN
	VXLAN Tunnels	5000
	VXLAN Bridge Domains / BDIF Interfaces	8K
High Availability	Link Aggregation	M‑LAG, 1024 LAGs, up to 256 links per LAG
	Stacking	iStack (intelligent stacking)
Layer 2 / Layer 3	MAC Address Table	256K
	IPv4 / IPv6 Routes (FIB)	256K / 80K
	ARP / ND Table	256K / 80K
	VRF Instances	4096
	ECMP Paths	128
	ACL Entries	15K
	BGP Neighbors	1024
Multicast	Multicast Routes (IPv4/IPv6)	32K / 2K
QoS & Congestion Control	Congestion Management	PFC, ECN, WRED
	Lossless Transport	RoCE v1/v2
