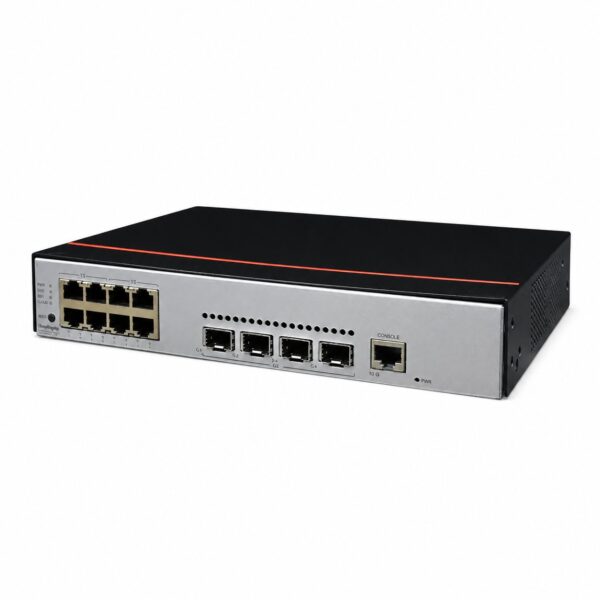

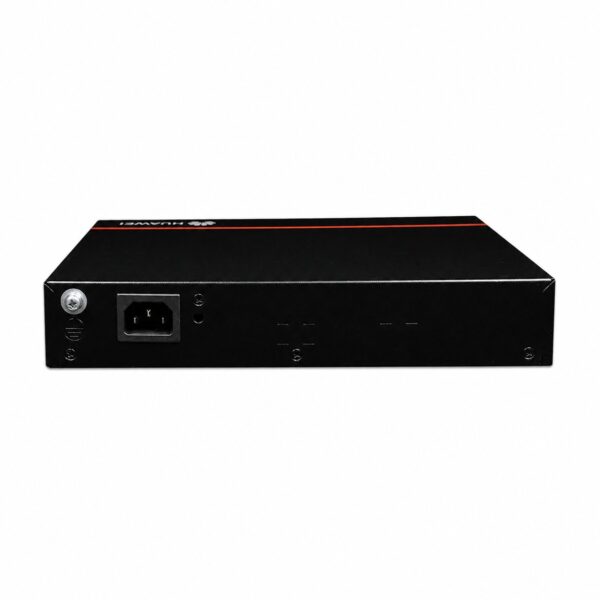

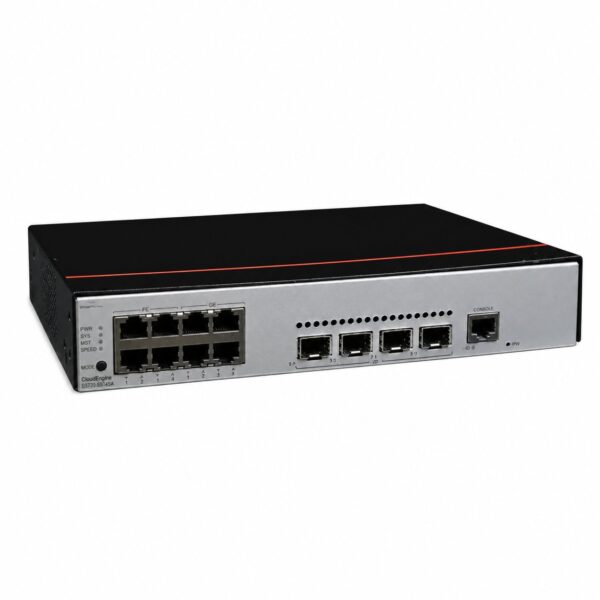

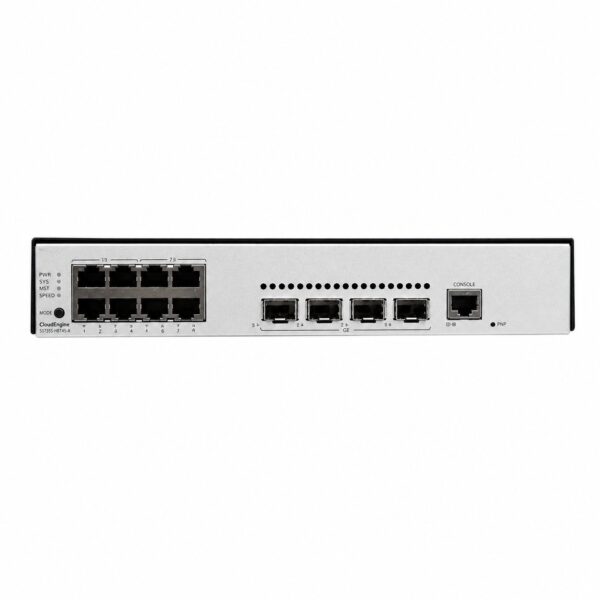

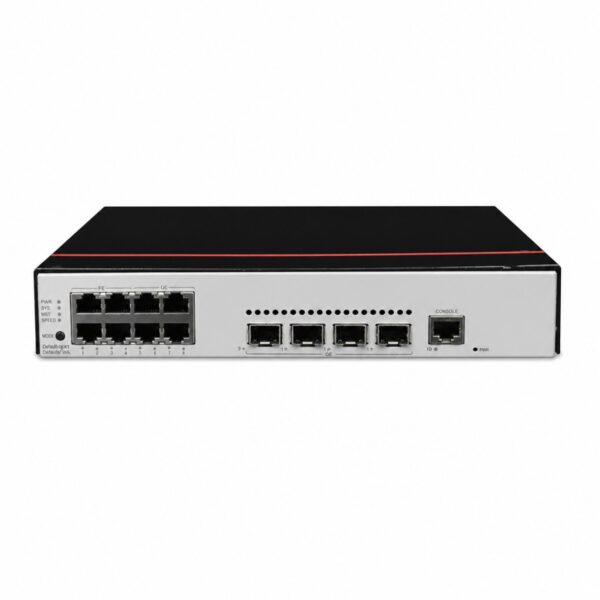

Huawei CloudEngine S2730S-S8FT4S-A – Product Information

Name: Huawei CloudEngine S2730S-S8FT4S-A - Refurbished & Tested - SunSpike
Brand: HUAWEI
SKU: S2730S-S8FT4S-A

Product Overview

The Huawei CloudEngine S2730S-S8FT4S-A is a next-generation green energy-efficient intelligent Fast Ethernet/Gigabit Ethernet access switch. It is built on next-generation high-performance hardware and Huawei’s unified Versatile Routing Platform (VRP) software platform, featuring flexible Ethernet networking and diverse security controls. The switch supports multiple Layer 3 routing protocols and delivers higher performance with richer service processing capabilities, making it widely applicable in enterprise campus access scenarios such as 100 Mbps and Gigabit to the desktop deployments.

The S2730S-S8FT4S-A is a managed, stackable Layer 3 Gigabit Ethernet switch with a non-modular port structure. It supports intelligent iStack stacking, enabling up to 9 switches to be stacked together to greatly simplify device management. The switch incorporates multiple energy-saving designs including smart fan speed adjustment, port hibernation, and automatic power regulation to build a green energy-efficient network.

Key features include 16K MAC address table support with automatic learning and aging, 4K VLAN support with multiple VLAN assignment methods, static routing, and support for RIP, RIPng, and OSPF protocols. The switch also offers extensive security features, comprehensive QoS capabilities, and rich multicast management functions.

Technical Specifications

Category	Parameter	Details
General	Product Model	S2730S-S8FT4S-A
	Part Number	98011287
	Product Type	Gigabit Ethernet Switch, Managed Switch
	Application Layer	Layer 3
	Switching Capacity	336 Gbps
	Packet Forwarding Rate	12.6 Mpps
	Switching Mode	Store-and-Forward
	Stacking	Stackable (iStack, up to 9 units)
	Port Structure	Non-modular
Ports	Total Ports	12
	10/100BASE-TX Ports	4 x RJ45
	10/100/1000BASE-T Ports	4 x RJ45
	Gigabit SFP Ports	4 x SFP (1000BASE-X)
	Console Port	1 x RJ45
MAC Features	MAC Address Table	16K
	MAC Learning	Automatic learning and aging
	MAC Table Types	Static, dynamic, blackhole MAC entries
	Port MAC Learning Limit	Supported
VLAN	VLAN Count	4K
	VLAN Types	MAC-based, protocol-based, IP subnet-based, policy-based, port-based VLAN
	Additional VLAN Features	Guest VLAN, Voice VLAN, GVRP, MUX VLAN, VLAN Mapping (1:1 and N:1)
	QinQ	Port-based QinQ
IP Routing	Static Routing	Supported
	Dynamic Routing	RIP, RIPng, OSPF
Multicast	Multicast Protocols	PIM DM, PIM SM, PIM SSM
	MLD	MLD v1/v2, MLD v1/v2 Snooping
	IGMP	IGMP v1/v2/v3, IGMP v1/v2/v3 Snooping
	Multicast Features	VLAN multicast forwarding, multicast multi-VLAN replication, trunk port multicast load balancing, controllable multicast, port-based multicast traffic statistics
QoS	Queue Scheduling	WRR, DRR, SP, WRR+SP, DRR+SP
	Queues per Port	8
	Traffic Policing	Dual-rate three-color CAR
	Packet Filtering	L2–L4 based on source/destination MAC, source/destination IP, TCP/UDP ports, protocol, VLAN
	Rate Limiting	Ingress and egress port rate limiting
Network Management	Management Protocols	SNMPv1/v2/v3, RMON
	Remote Management	Telnet, HTTPS
	Cloud Management	Netconf/Yang-based cloud management
	Network Management Systems	eSight, Web-based management
	Additional Features	Virtual Cable Test, LLDP/LLDP-MED, system logs, hierarchical alarms
	Energy Efficiency	802.3az Energy Efficient Ethernet (EEE)
Security	User Management	User hierarchical management and password protection
	Attack Protection	DOS, ARP attack protection, ICMP attack protection
	Port Security	Port isolation, port security, Sticky MAC
	MAC Security	Blackhole MAC addresses, MAC address learning limit
	Authentication	IEEE 802.1X, AAA, RADIUS, HWTACACS, NAC
	Secure Management	SSH V2.0, HTTPS
	DHCP	DHCP Relay, DHCP Server, DHCP Snooping
	DHCPv6	DHCPv6 Relay, DHCPv6 Snooping
Interoperability	Spanning Tree	VBST (interoperable with PVST/PVST+/RPVST)
	Link Negotiation	LNP (similar to DTP)
	VLAN Management	VCMP (similar to VTP)
Power	Power Supply	Built-in AC power supply
	Input Voltage	100–240V AC, 50/60Hz
	Maximum Power Consumption	26.3 W
	Typical Power Consumption	21.2 W
Physical	Dimensions (W×D×H)	250 × 180 × 43.6 mm
	Weight	1.38 kg
Environmental	Operating Temperature	–5°C to 55°C
	Storage Temperature	–40°C to 70°C
	Operating Humidity	5%–95% (non-condensing)
